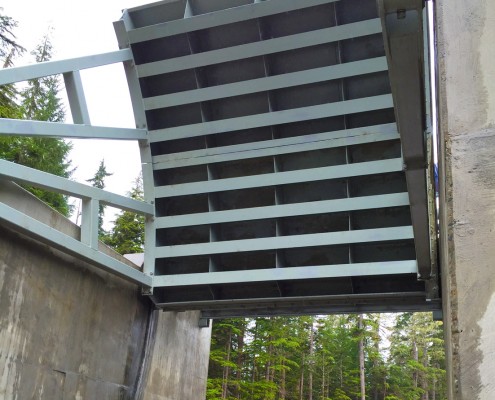

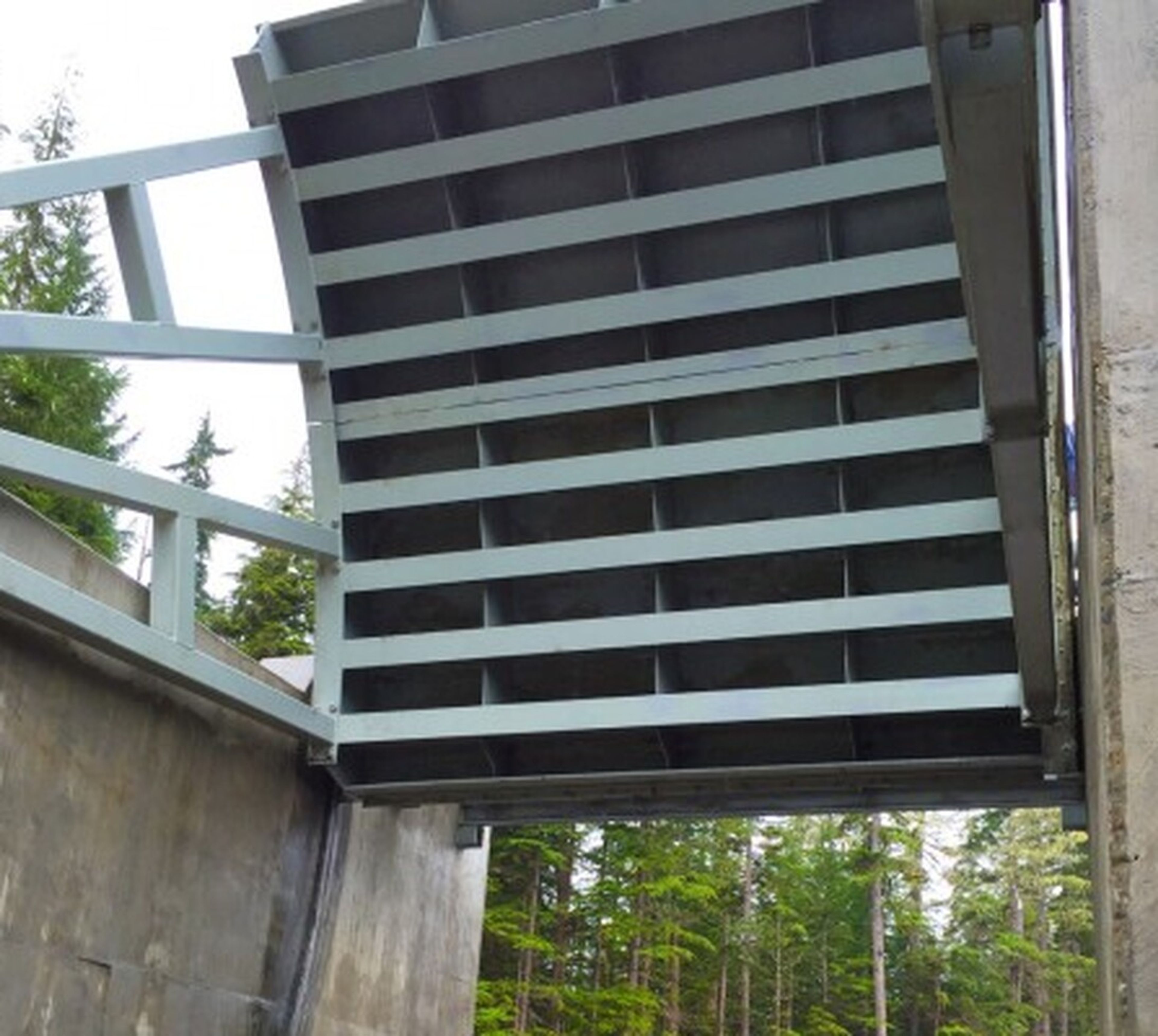

Radial Gates
Specifications
- Head Pressures
Medium and High Head Pressure Applications - Size Range
Width: 24" - 240", Height: 24" - 180" - Frame, Cover, & Drum Materials
Stainless Steel ASTM A-240, A-276 Type 304 or 316; Mild Steel ASTM A-36 - Mounting
Channel Mount (Side Wall Anchor or Side Wall Embedded) - - Cable Material
304SS or 316S IWRC Cable - Actuation
Bevel Gear, Electric - Sealing Material
Neoprene ASTM D-2000 - Pivot Pin Mounting
Embedded or Trunion Bracket - Assembly and Mounting Hardware
Stainless Steel ASTM F-593 & F-594 Type 304 or 316
Features & Benefits
Waterman Overflow or Breastwall-type Radial (Tainter) Gates can be engineered for unique applications or can be manufactured from a standardized Waterman design. In either case, they are always made to the customer’s exact specifications. They provide a light-weight economical gate that can be opened and closed with a minimum of effort. Waterman Radial Gates can also be ordered for existing locations as replacement gates.
USES:
- Maintenance of water elevations in canals or spillways
- Increased storage capacity for reservoirs
- Diversion of water for irrigation
- Flow control preserving wide clear waterways
- Other areas requiring economical water control
