Specifications

  • Size Range:
    6"-36"
  • Pipe and Flange Material:
    Ductile Iron
  • Lining Options:
    Cement Lining (standard or double thickness), Protecto 401®, others as required
  • Coating Options:
    Asphaltic Coating, Zinc, Bare
  • Length:
    18' Nominal
  • Deflection:
    15°
  • Pressure Rating:
    350psi
  • Pipe Class:
    Special Thickness Class 55 or Higher
  • Applicable Standards:
    Thickness Design of DIP - ANSI/AWWA C150/A21.50 Ductile Iron Pipe for Water & Other Liquids - ANSI/AWWA C151/A21.51 Cement Lining - ANSI/AWWA C104/A21.4 Gasketed Joints - ANSI/AWWA C111/A21.11
  • Testing:
     Per ANSI/AWWA C151/A21.51

Features & Benefits

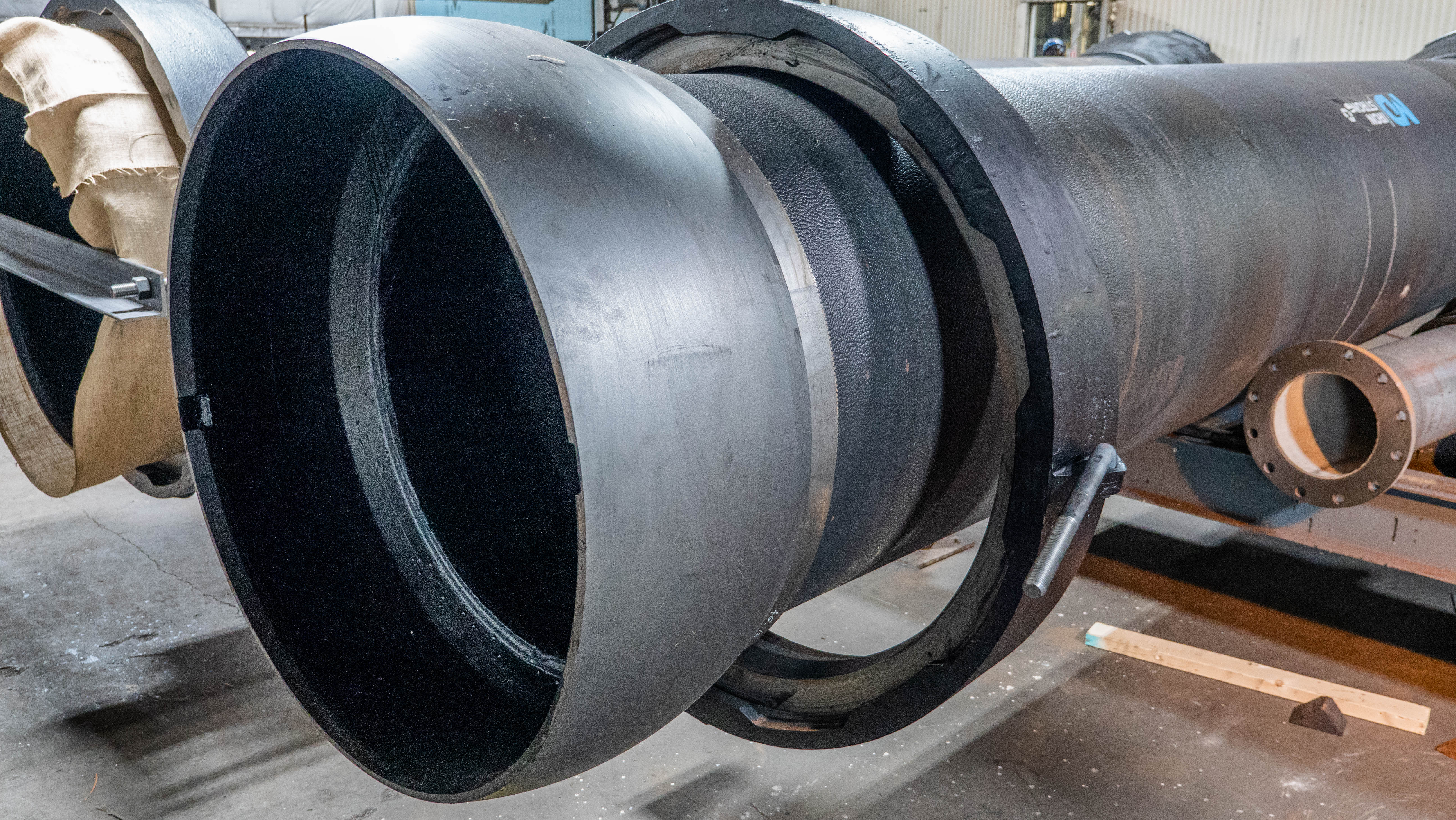

McWane Ductile’s Ball and Socket River Crossing Ductile Iron Pipe is made with a specially machined Ductile iron ball and bell that offers 15 degrees of deflection per joint. This design allows it to traverse irregular slopes, inclines and subaqueous surfaces easily. This pipe is manufactured with extra thick walls to withstand the rugged treatment required for critical installations. The joint is boltless to allow quick, easy assembly without wrenches or special tools. Because of the joint’s inherent strength and flexibility, various installation methods are possible without damaging the pipe.
