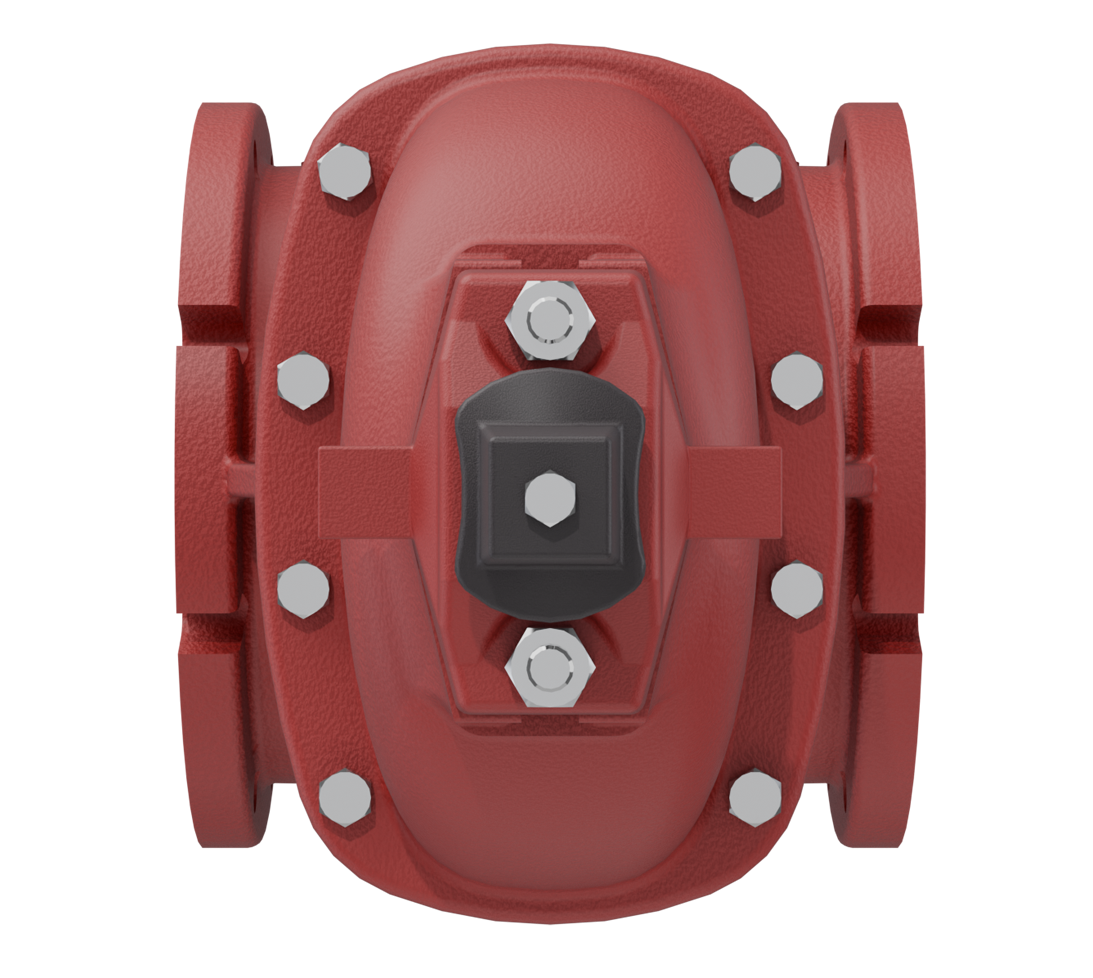

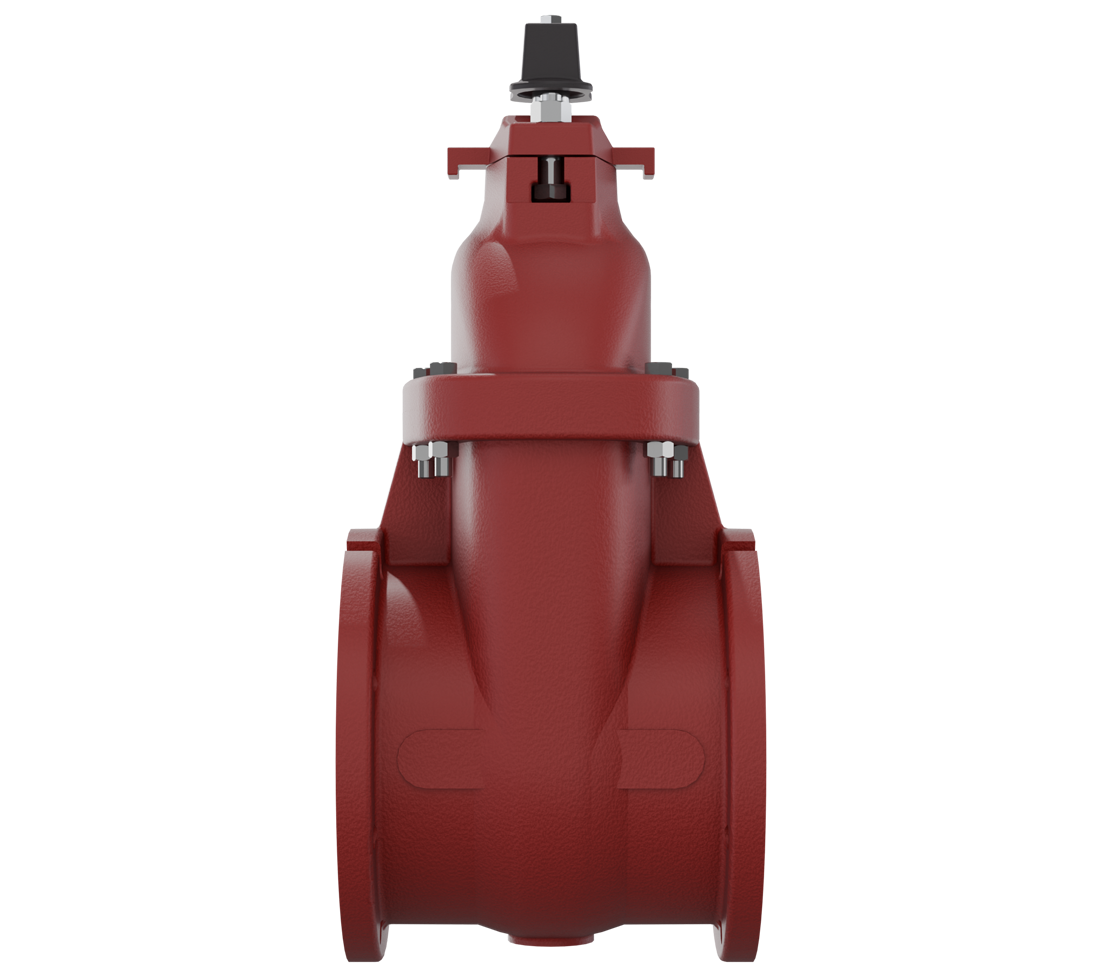

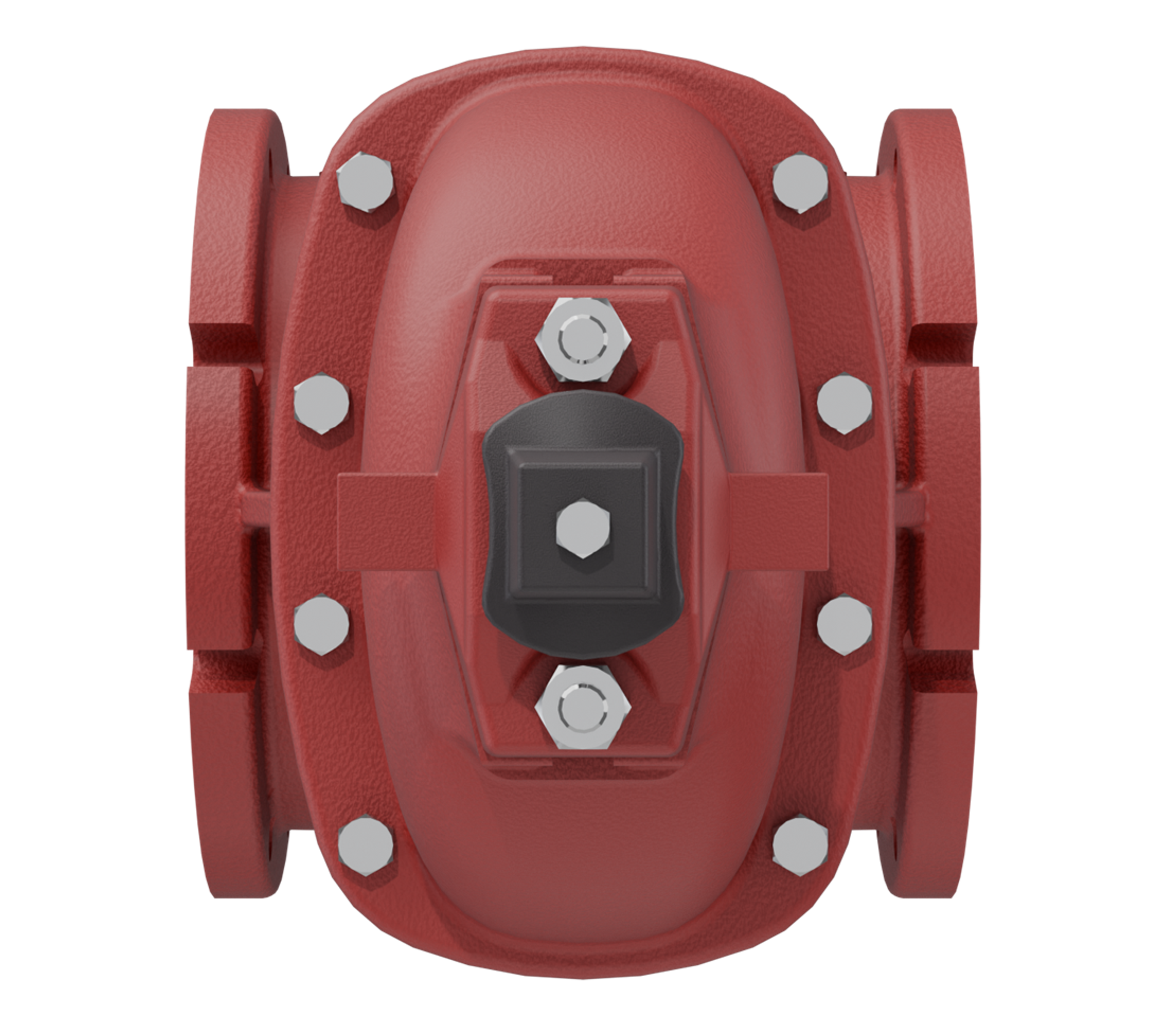

Solid Wedge Gate Valve
Specifications
- Size Range
3" - 48" - Temperature Range
33°-160°F - Operating Pressure (CWP)
250PSI, 300PSI Available - Body/Bonnet Materials
ASTM A536 65-45-12 Ductile Iron - Disc/Wedge Materials
ASTM A536 65-45-12 Ductile Iron - Body/Disc Seat Ring Materials
Bronze - Stem Nut
Bronze - Shaft Materials
ASTM A276 T304SS (OS&Y), T316SS (NRS) - Body Style
NRS or OS&Y, (FLG, MJ) - Design/Test Standard
AWWA C500 - Flange Drilling
FLG – ANSI B16.1 Class 125 & 250; MJ – ANSI/AWWA C111/A21.11 - Face to Face
AWWA C500 - Exterior Fasteners
T304 Stainless Steel; optional offering T316 Stainless Steel
Features & Benefits

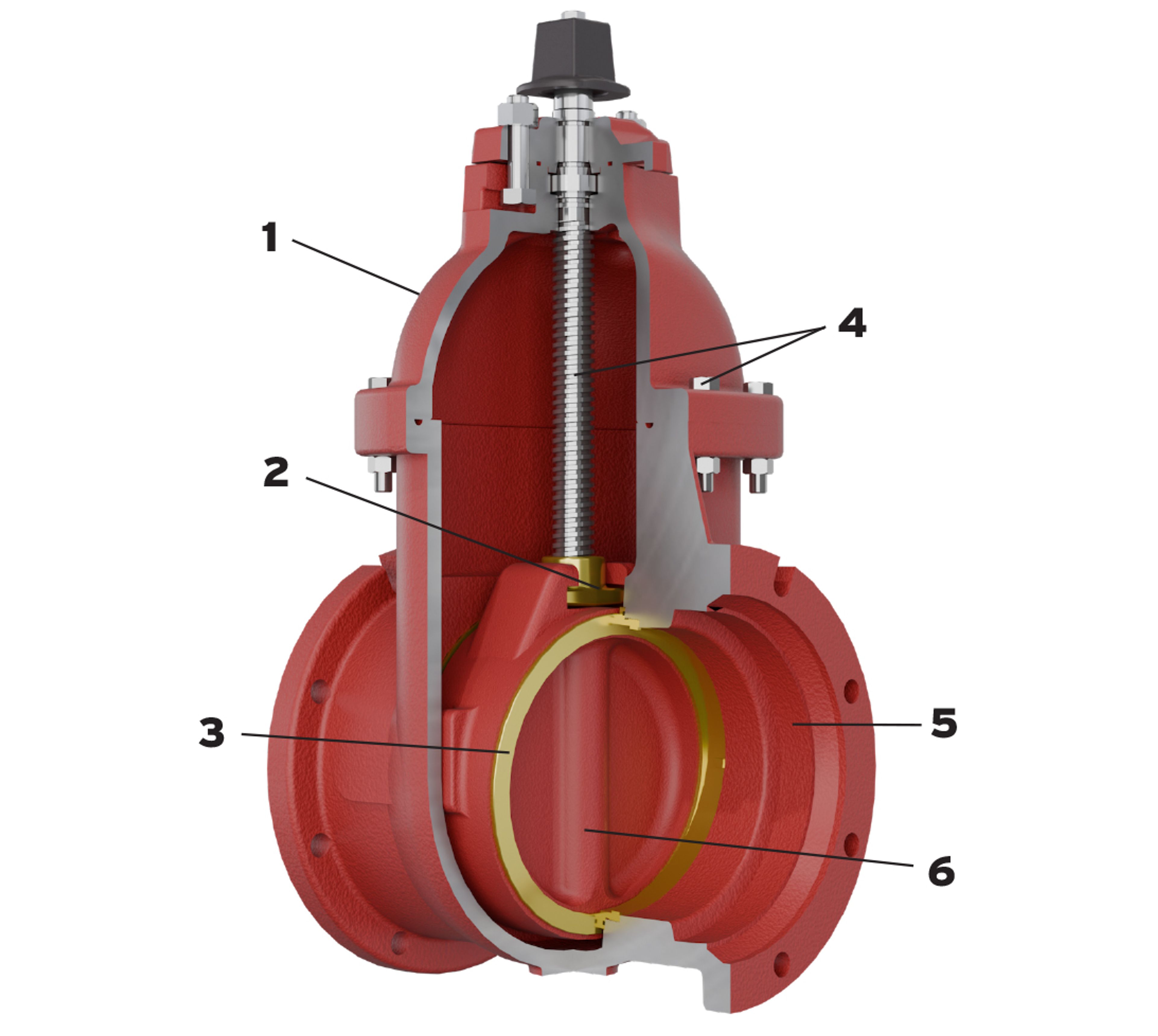

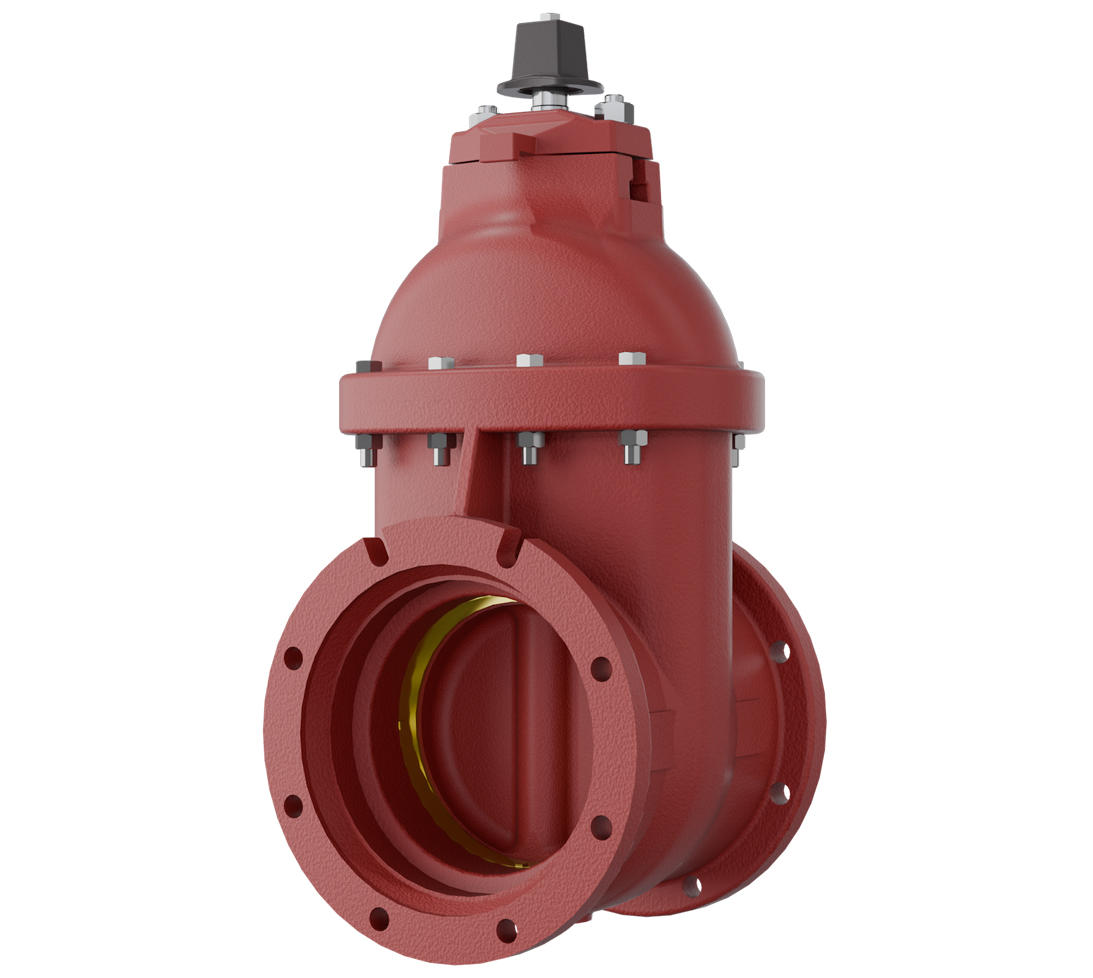

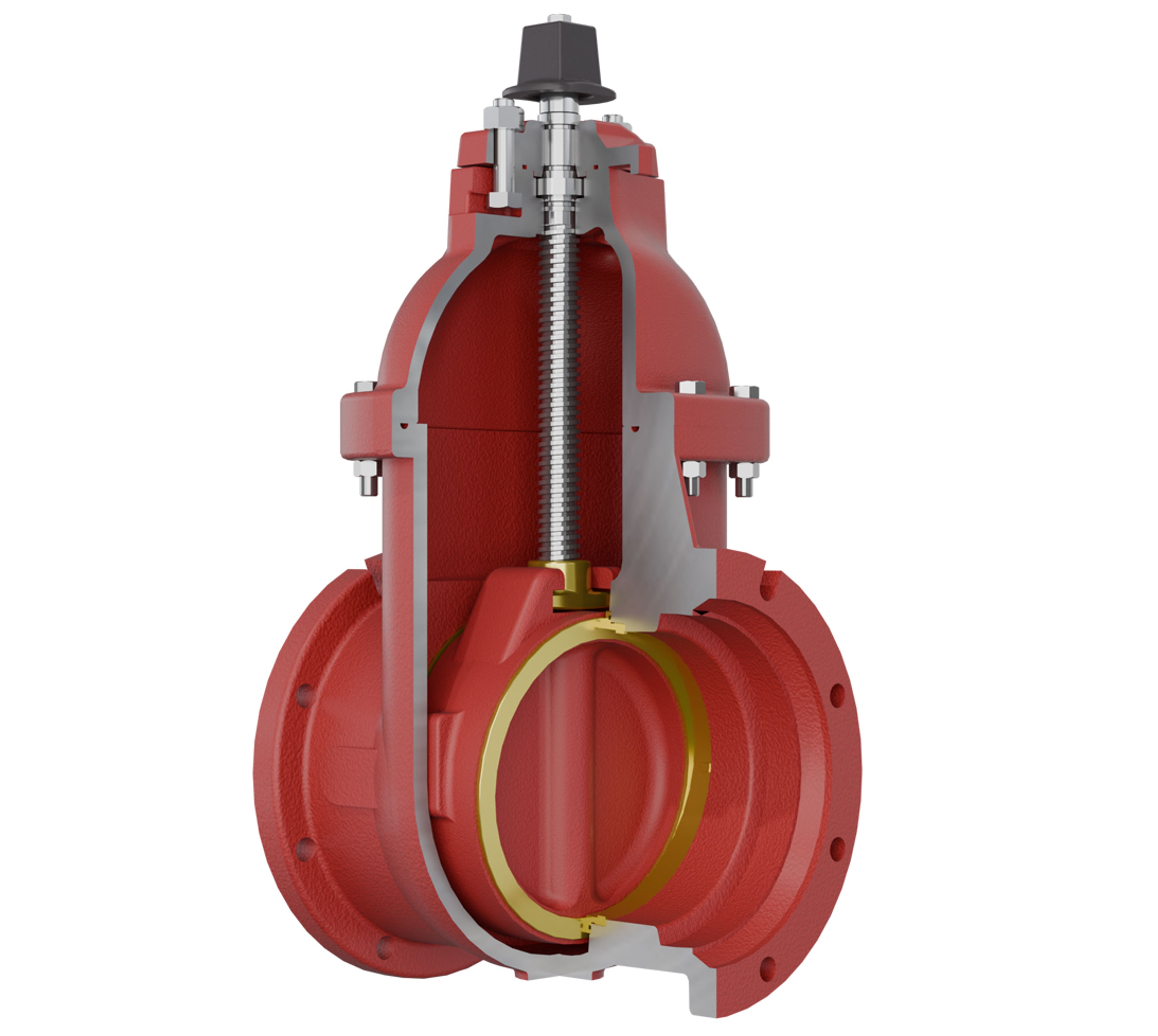

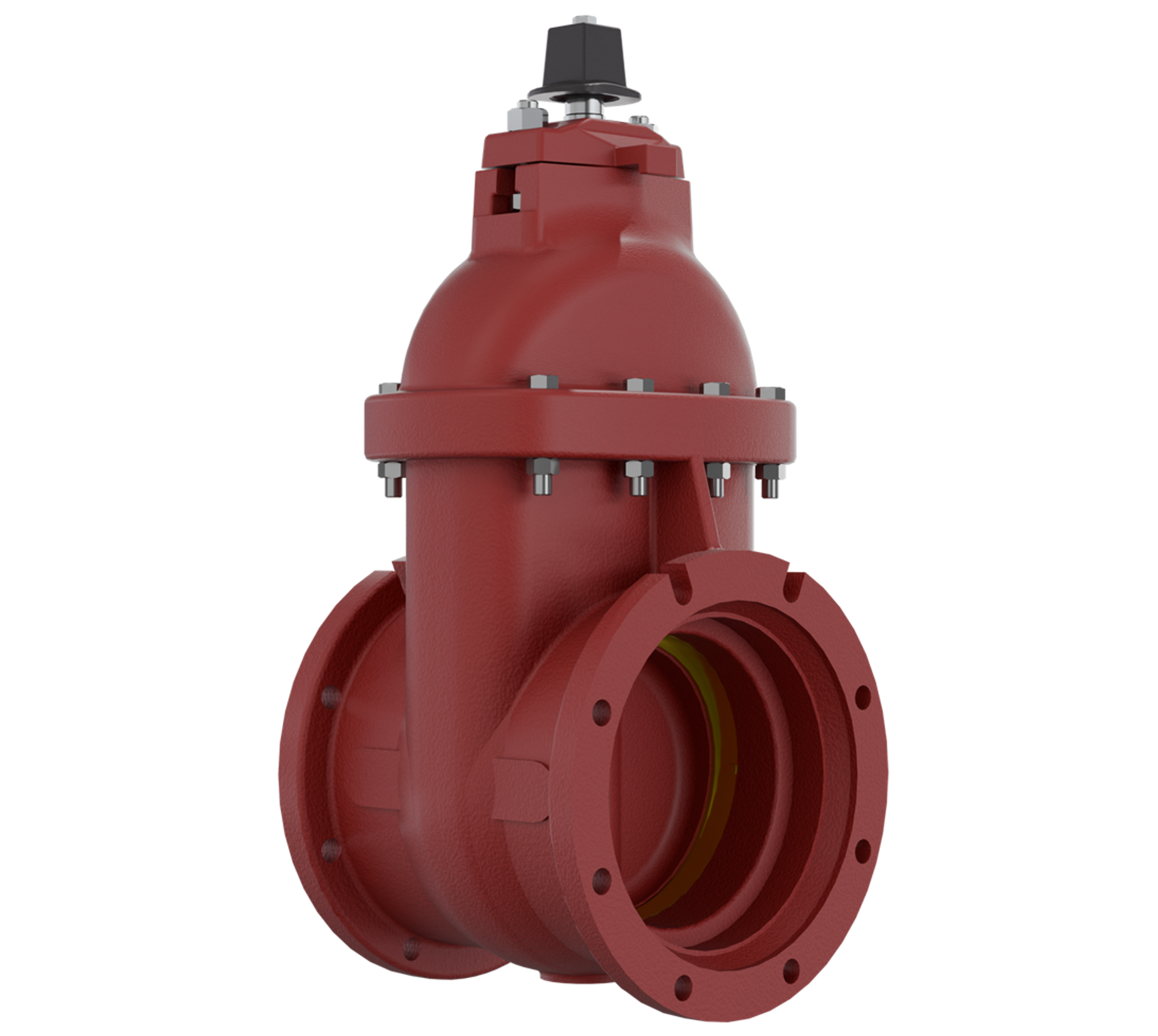

Our Solid Wedge Gate Valves are available in both NRS and OS&Y bonnet configuration options. Both styles are available with Flanged ends and MJ ends in nominal pipe sizes 3” through 48” NPS. Available with hand wheels, operating nuts and when required, cast mounting pads for gears or electric actuators. Valves are protected externally and internally with coatings conforming with AWWA C500. Valuable engineering features include:
- Ductile iron for added strength and reduced weight.
- Close-fitting stem to wedge engagement maintains alignment.

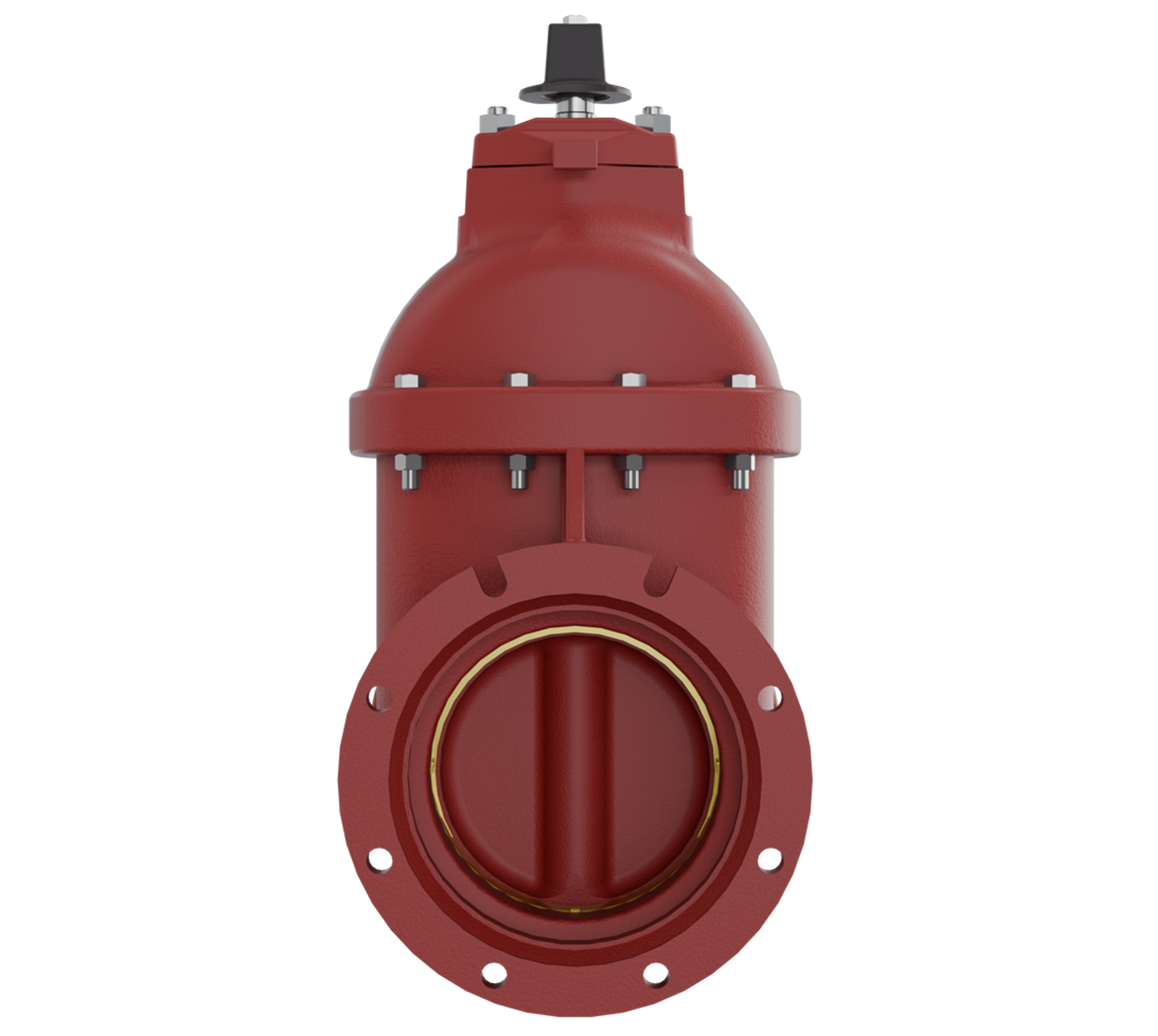

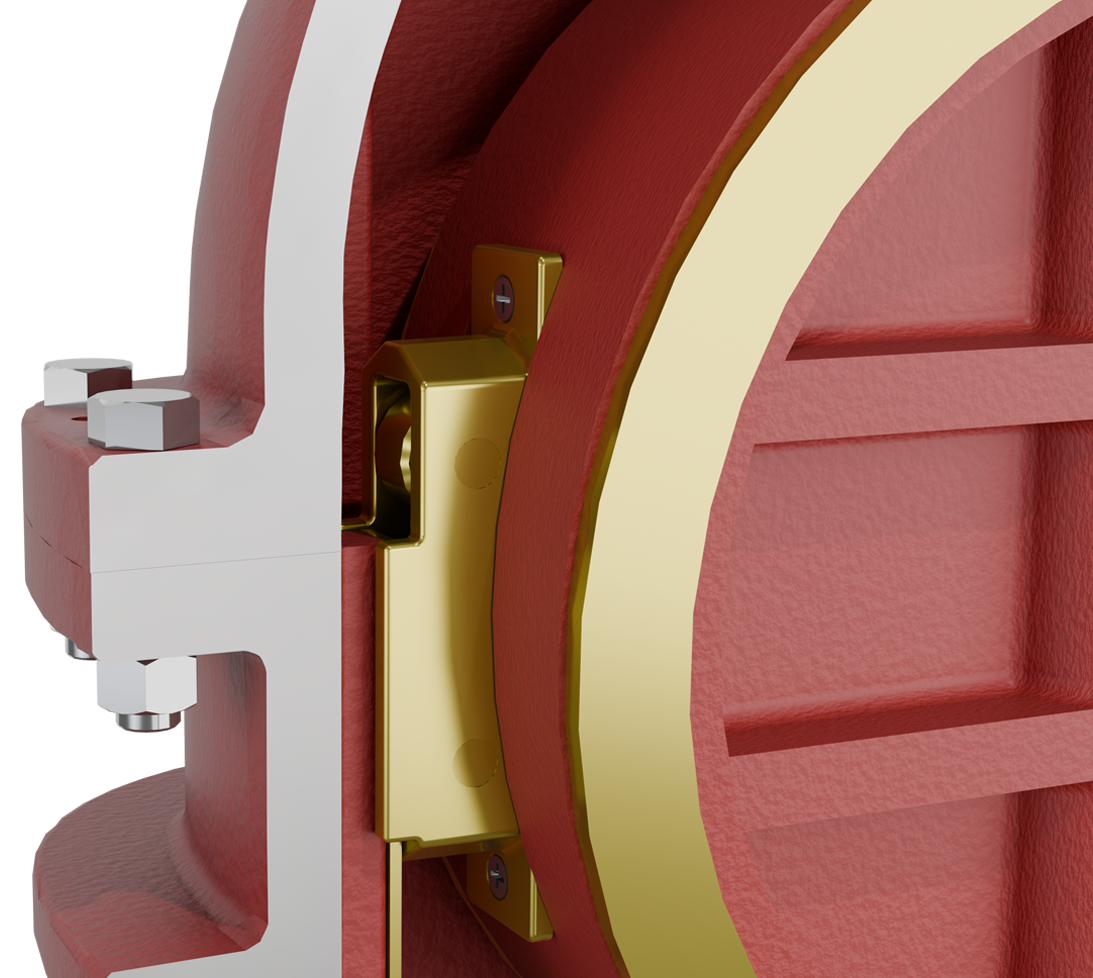

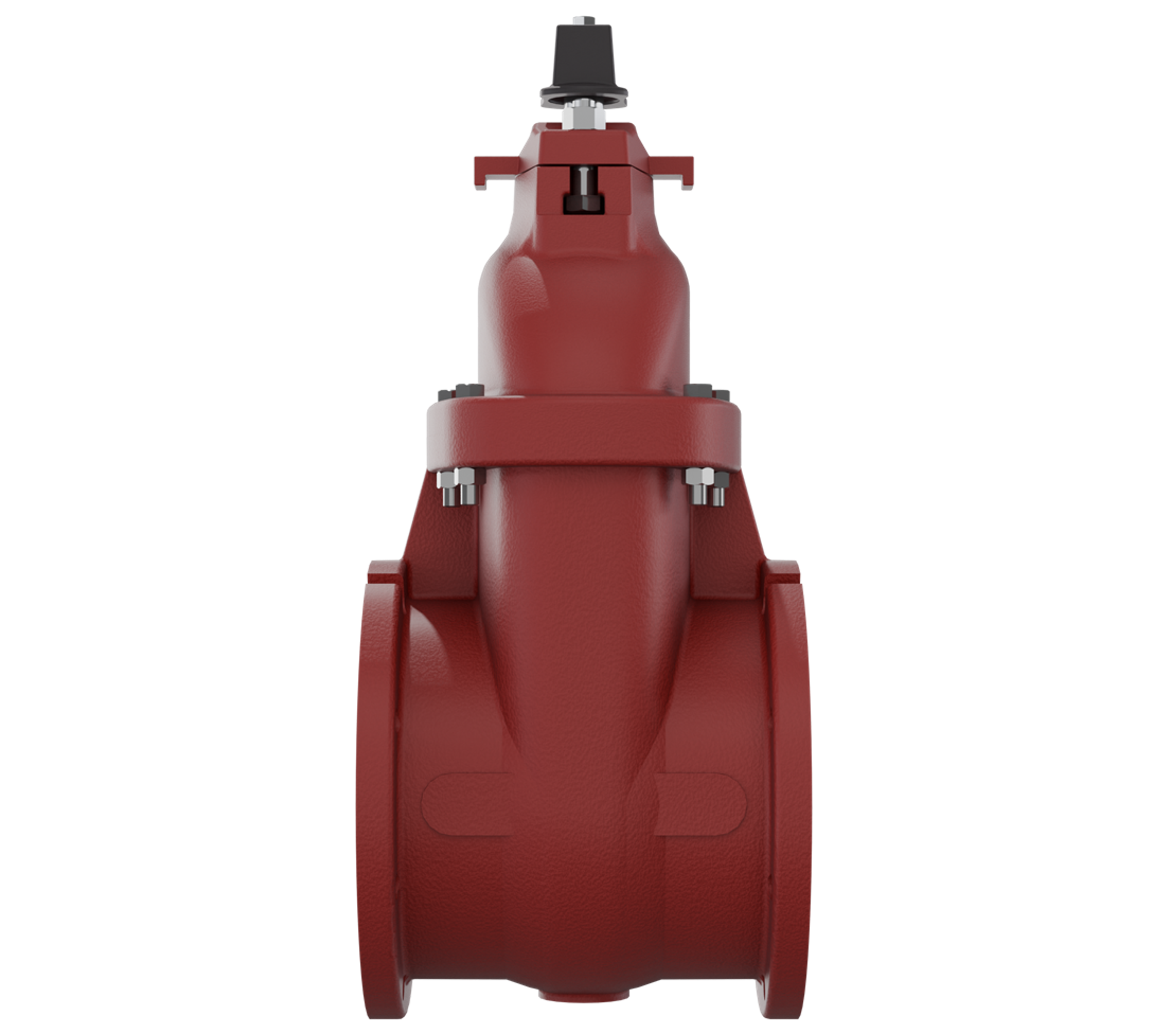

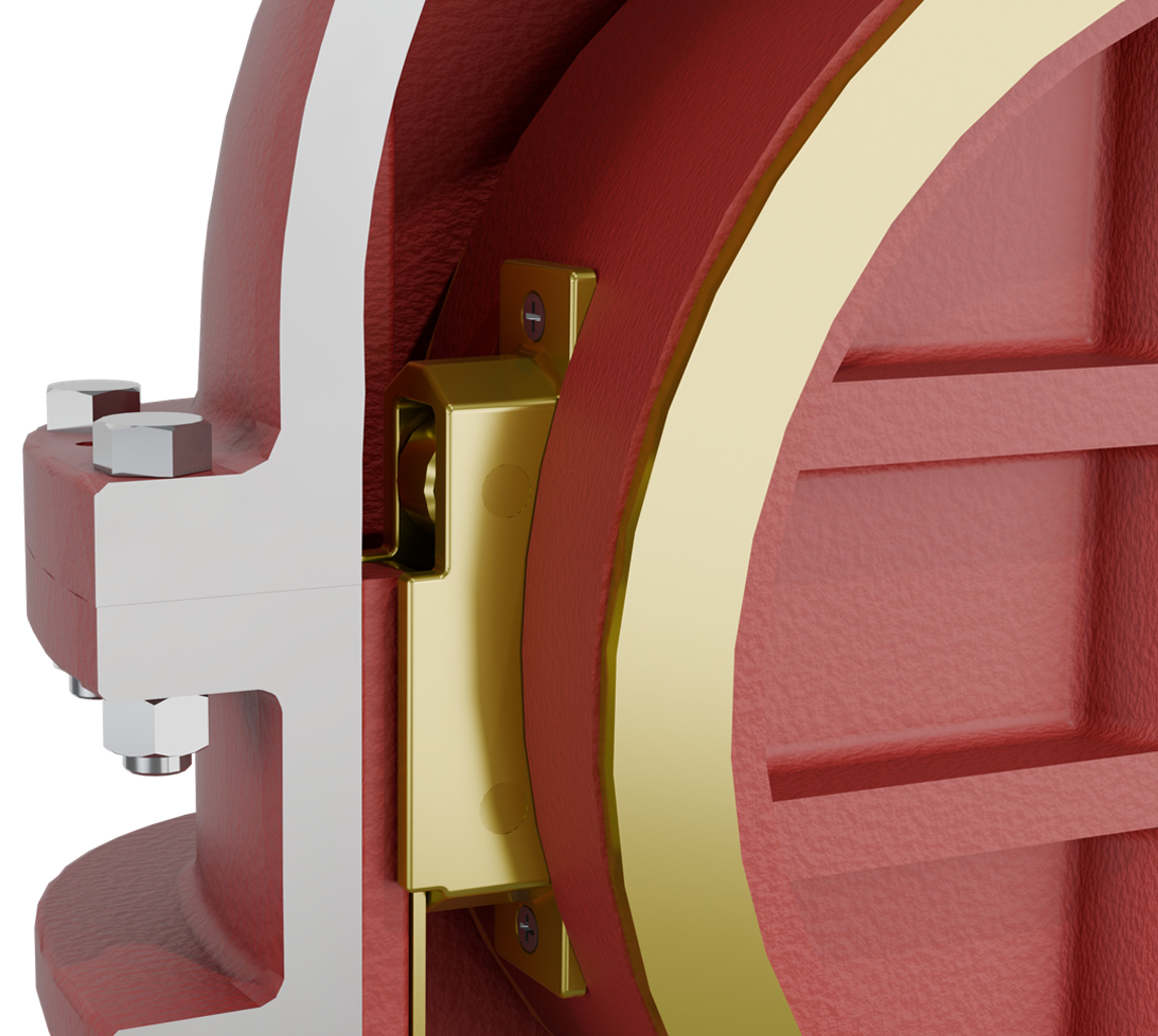

- Extra-wide, bronze disc and seat ring faces provide large seating area.
- Corrosion-resistance stainless steel stem and hardware.
- Full-flow waterway.
- Solid, single-piece tapered wedge assures excellent performance and prevents clogging.
