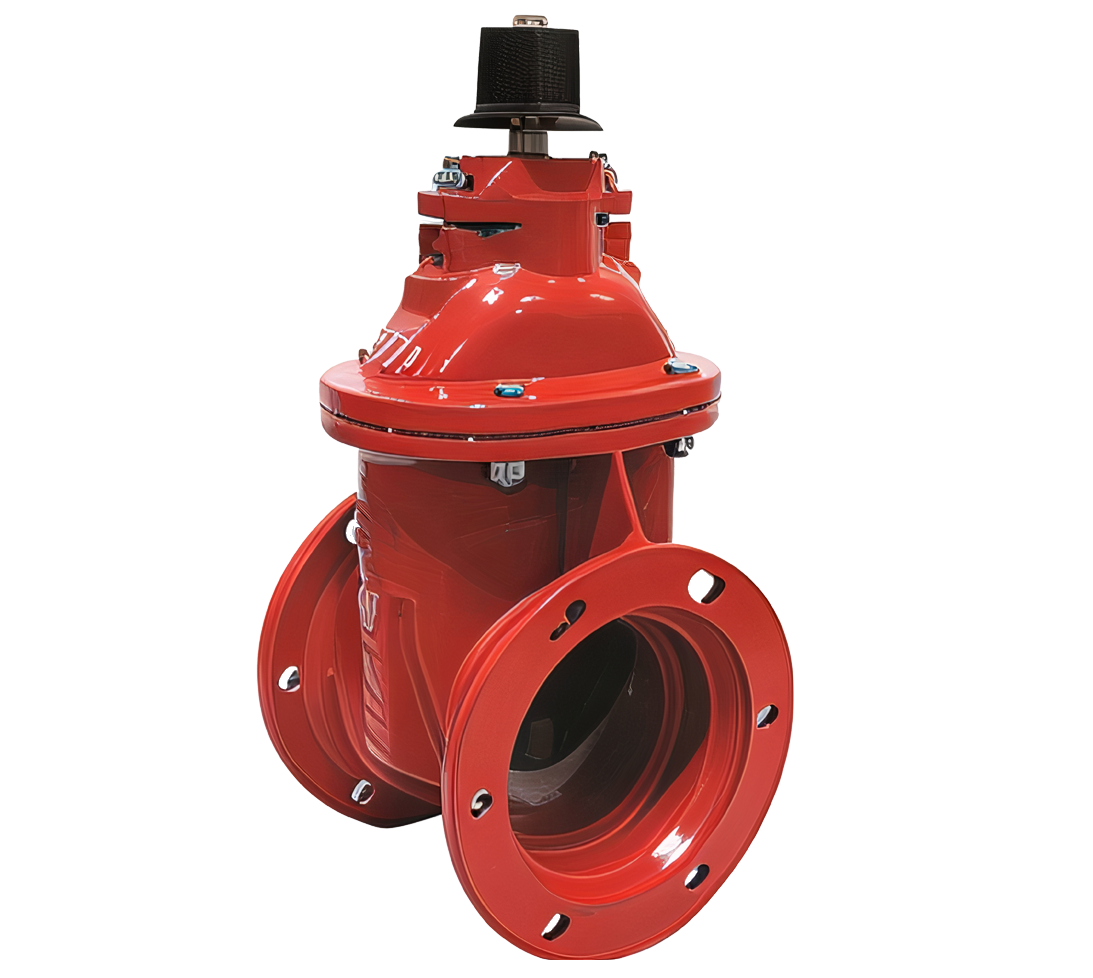

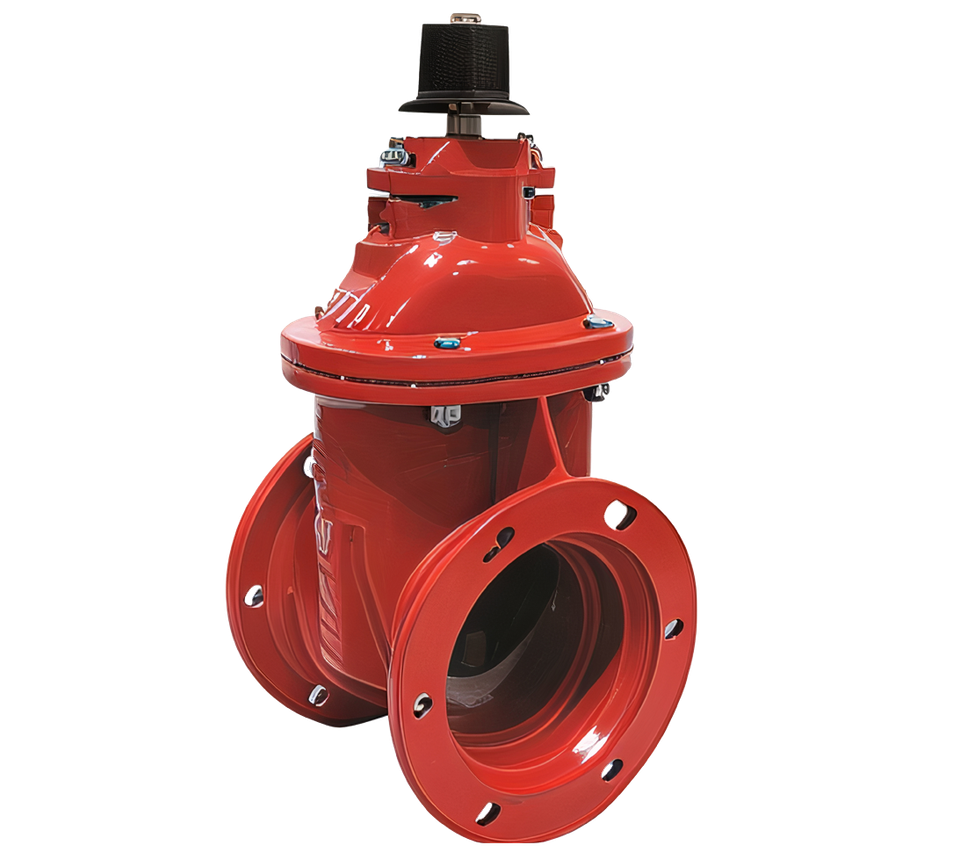

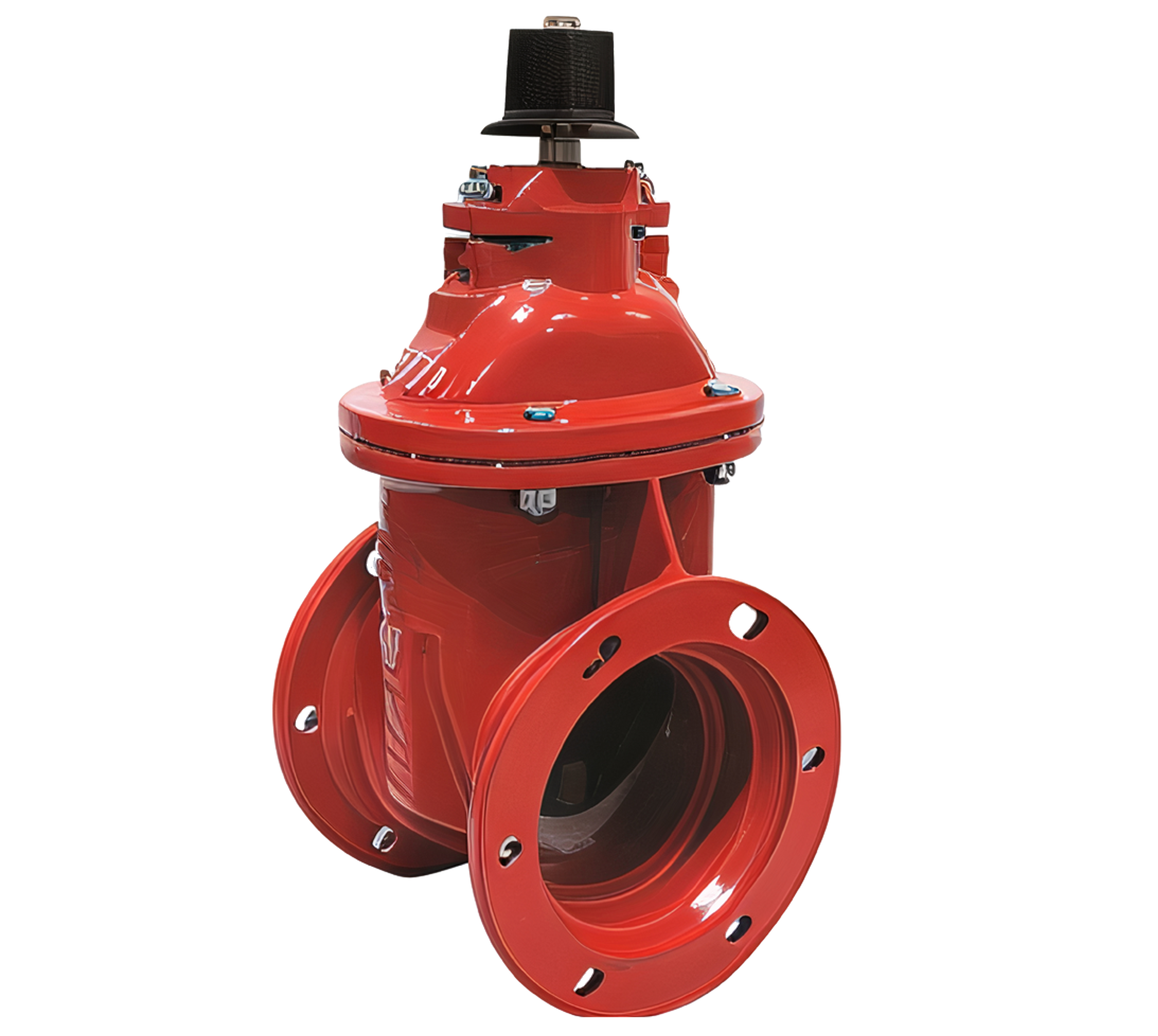

Resilient Seated Gate Valves image gallery

Specifications

  • Size Range

    2"-54"

  • Temperature Range

    33ºF-125ºF

  • Operating Pressure

    250PSI

  • Body/Bonnet Materials

    ASTM A536 Ductile Iron

  • Wedge Materials

    Fully Encapsulated EPDM per ASTM D429

  • Stem Materials

    Bronze, 304SS, 316SS

  • Body Style

    Non-rising stem: FLG, MJ, FLG x MJ, MJ x Tap Outside Stem & Yoke: FLG

  • Design/Test Standard

    AWWA C515, AWWA C509 (up to 12”)

  • Flange Drilling

    FLG - ANSI B16.1 Class 125 & 250; MJ - ANSI/AWWA C111/A21.11

  • Certifications

    NSF/ANSI 61/372

  • Face to Face

    AWWA C515, AWWA C509 (up to 12”)

  • Exterior Fasteners

    Stainless Steel

  • Actuation

    Direct-Drive Handwheel or 2” Operating Nut, Spur or Bevel Gear, Electric Motor Operator

Features & Benefits

Enhance your pipeline efficiency with our resilient seated gate valve—designed for compact installations without compromising performance. Engineered with a ductile iron body and a fully encapsulated EPDM rubber seat, this valve ensures tight sealing, corrosion resistance, and smooth operation in water and wastewater systems. Compliant with AWWA C515 or AWWA C509 standards, this valve delivers reliable shutoff and long service life for municipal, industrial, and utility applications.
