Tilting Weir (Overshot) Gates
Specifications
- Head Pressures
Low Head Pressure Applications - Size Range
Width: 18" - 168", Height: 18" - 168" - Frame, Leaf, & Drum Materials
Stainless Steel ASTM A-240, A-276 Type 304 or 316; Mild Steel ASTM A-36 - Mounting
Channel Mount (Side Wall Anchor or Side Wall Embedded) - Cable Material
304SS or 316S IWRC Cable - Actuation
Bevel Gear, Electric - Guide & Sealing Material
Neoprene ASTM D-2000 - Design/Test Standard
Not applicable - Assembly and Mounting Hardware
Stainless Steel ASTM F-593 & F-594 Type 304 or 316
Features & Benefits

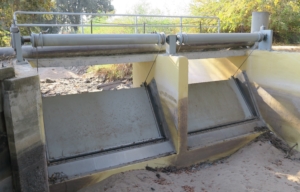

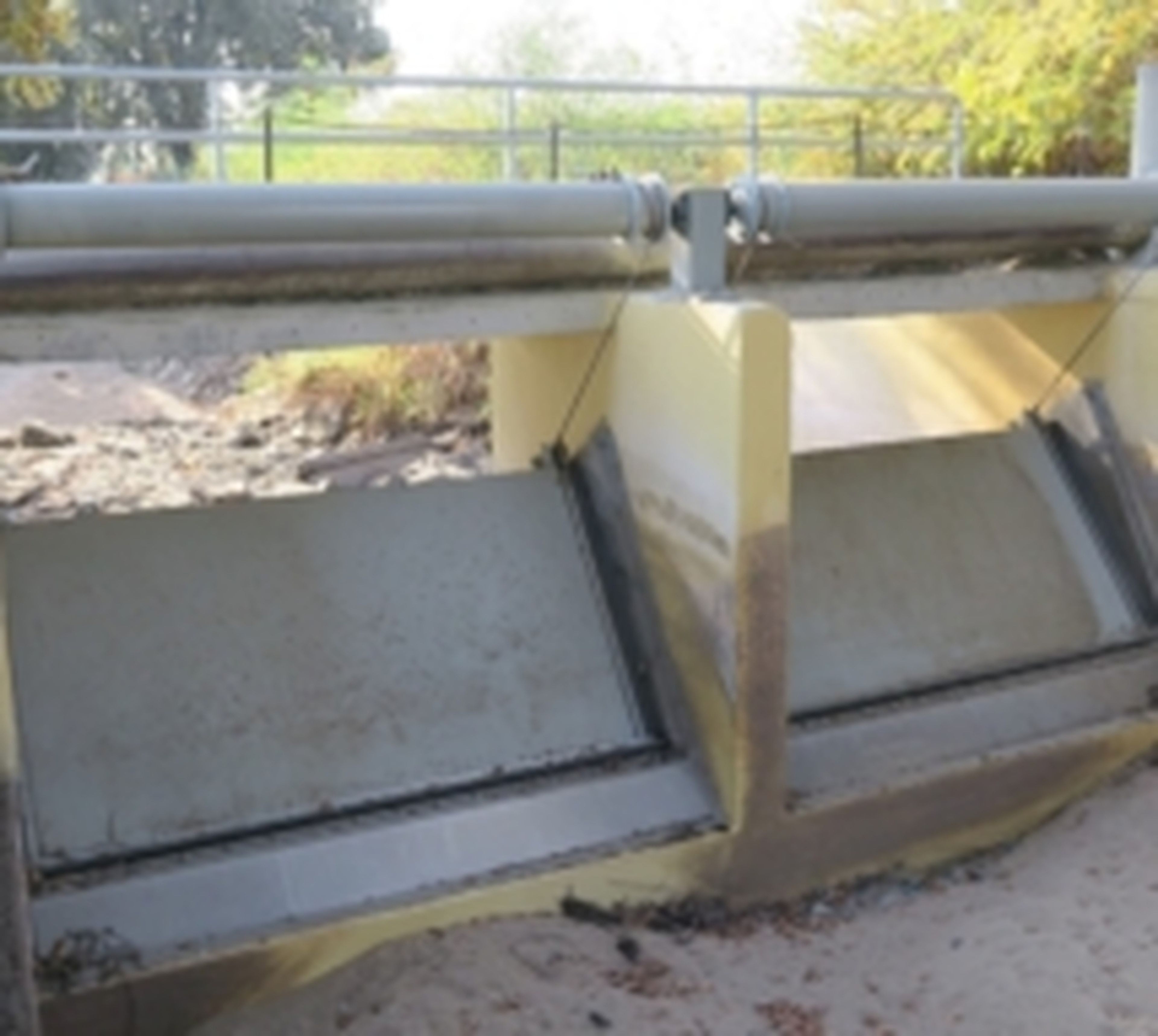

Waterman Tilting Weir (Overshot) Gates are an overflow-type gate used to control levels in canals, basins and other agricultural, municipal and industrial applications.
They are an effective replacement to manually-installed check boards or stop logs.
The basic gate design uses a rectangular panel mild steel panel that is mounted to a piano hinge at the forward bottom edge of the gate leaf. This leaf is raised and lowered using a cable drum hoist to control the upstream water level.
Gates are custom-designed to the application and can be ordered for both new construction and replacement installations.
Download the spec sheet for further information and consult the ordering guide for options.
