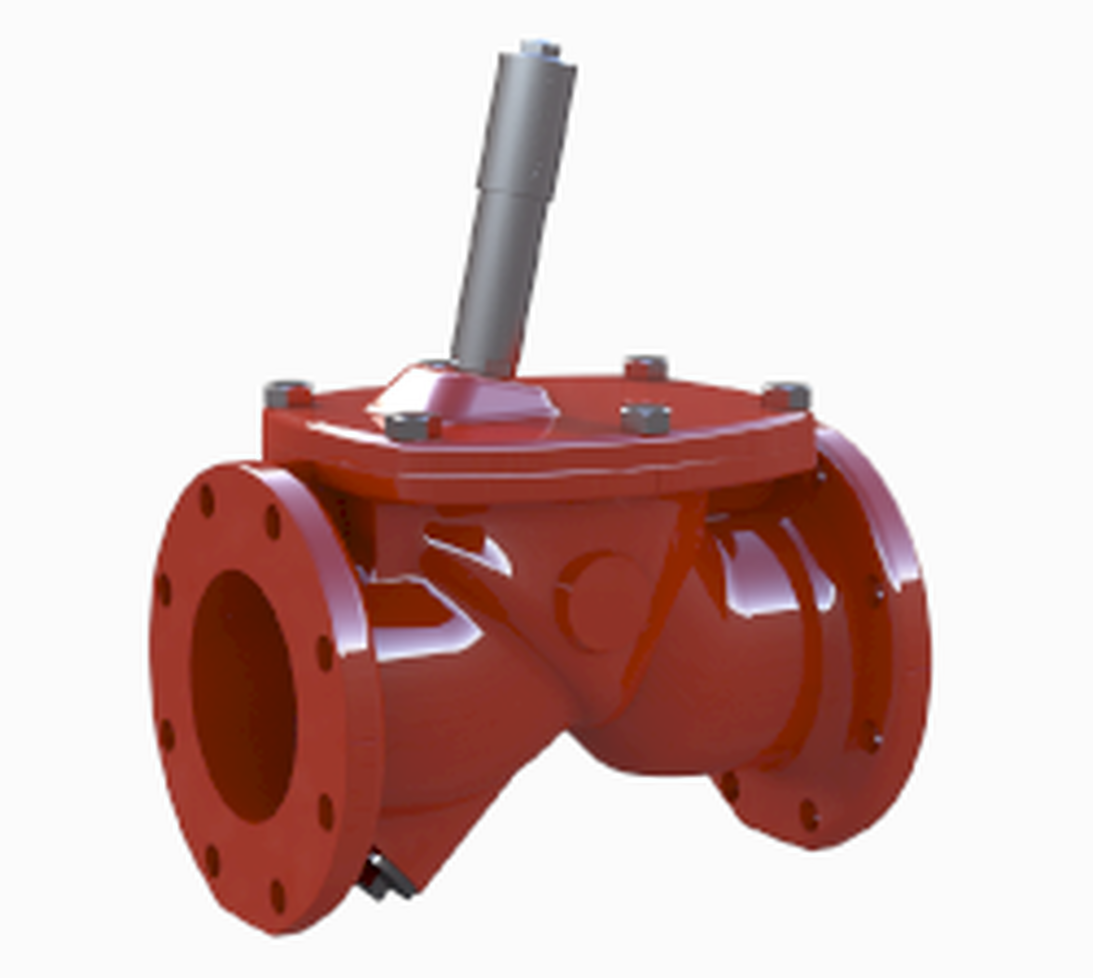

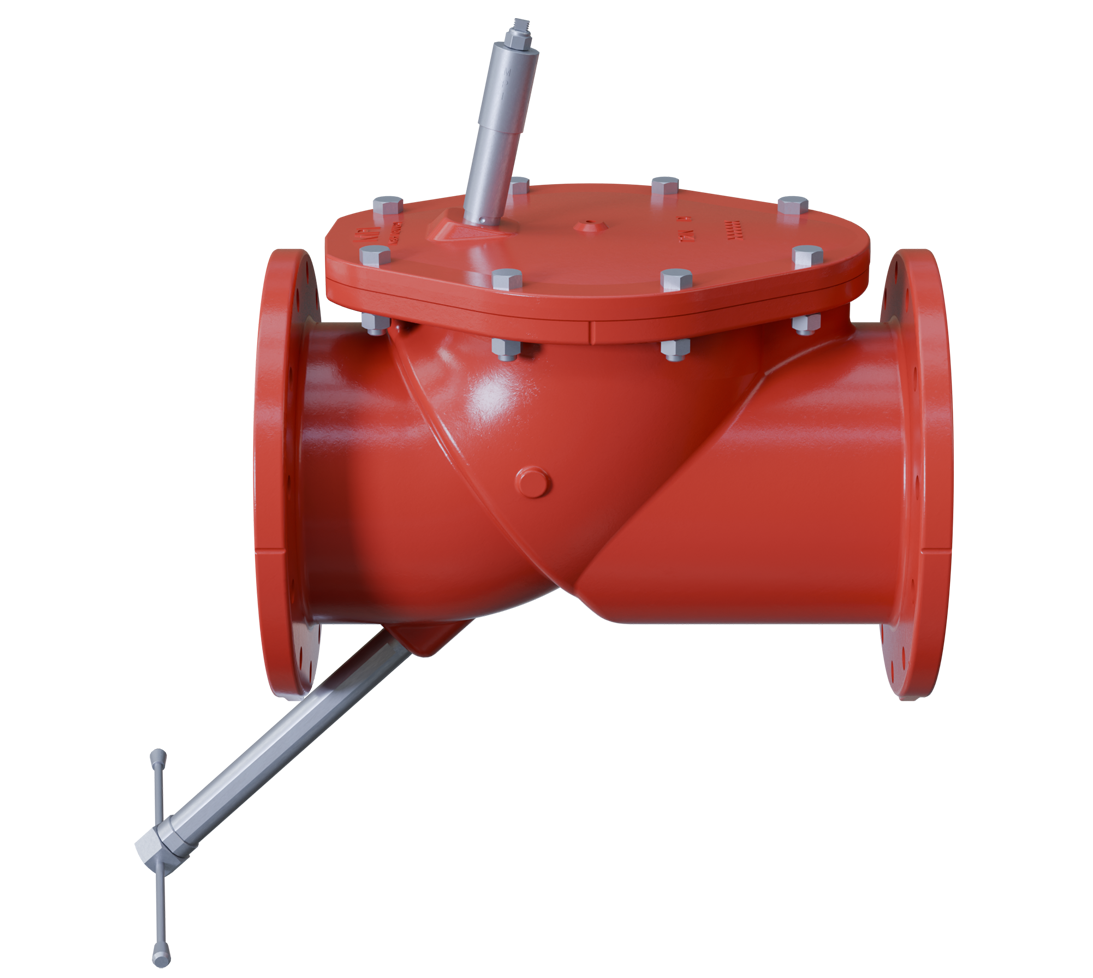

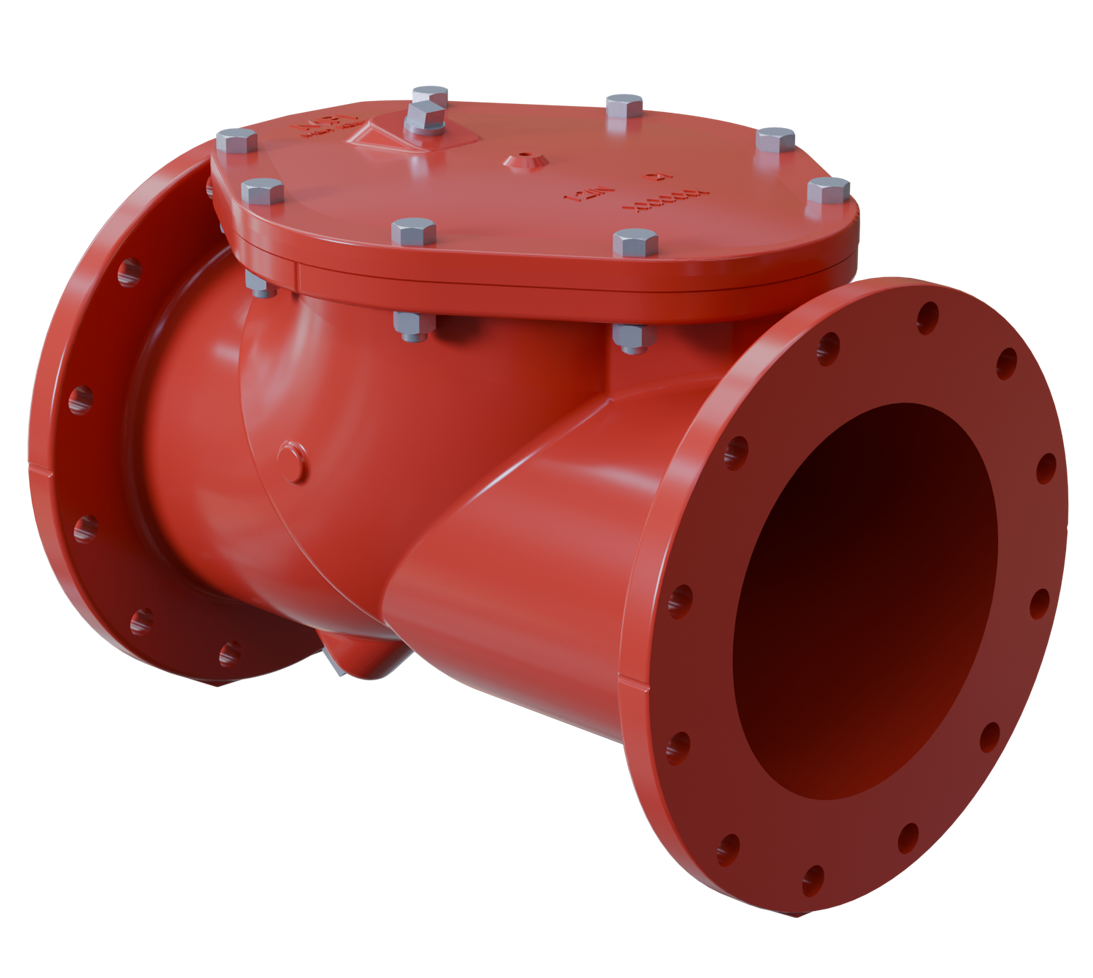

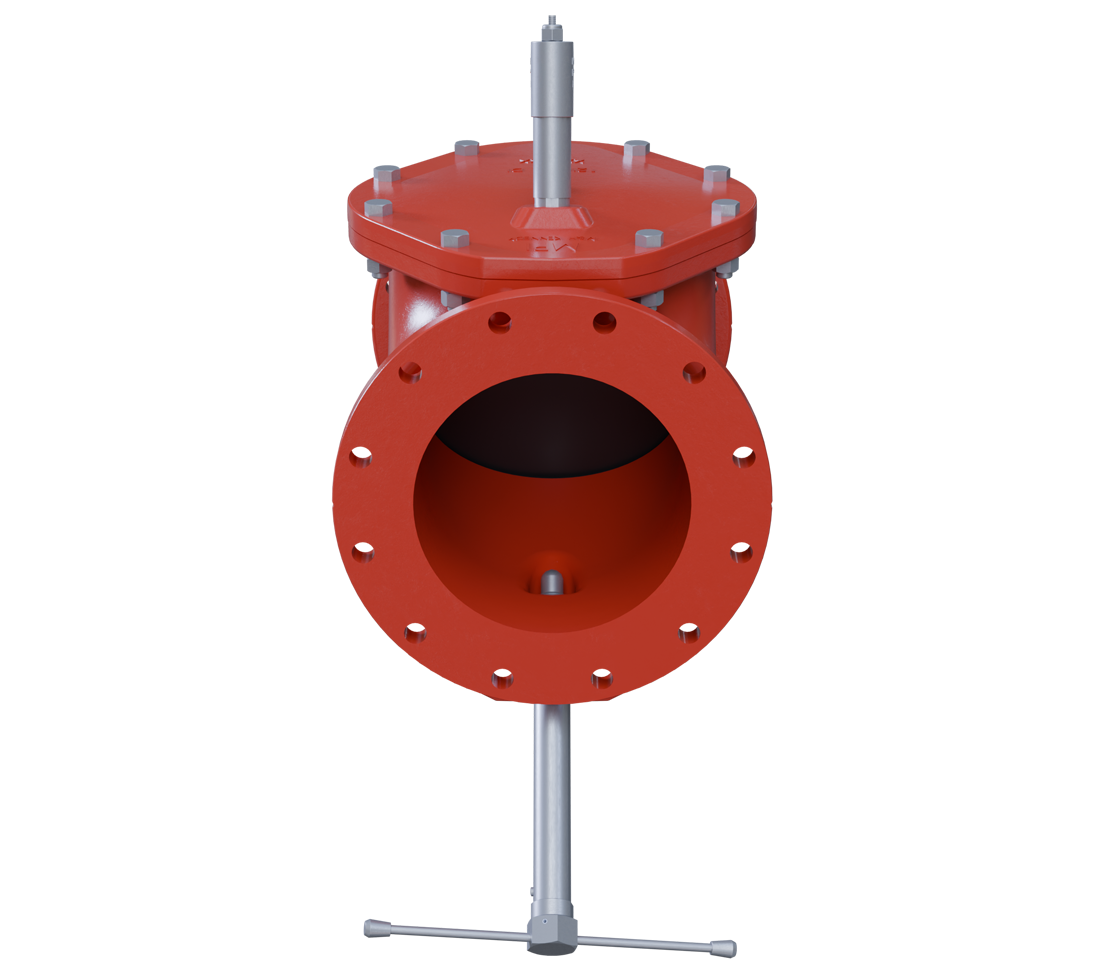

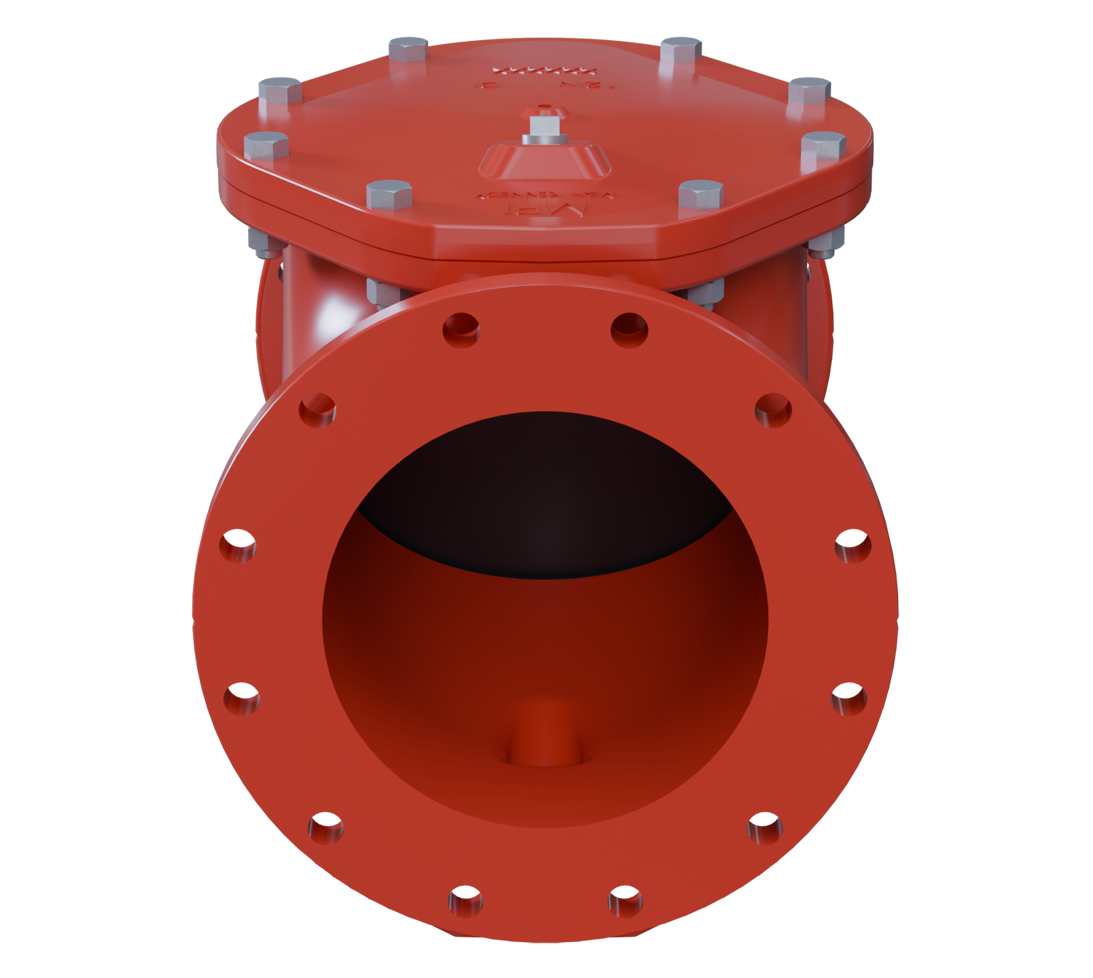

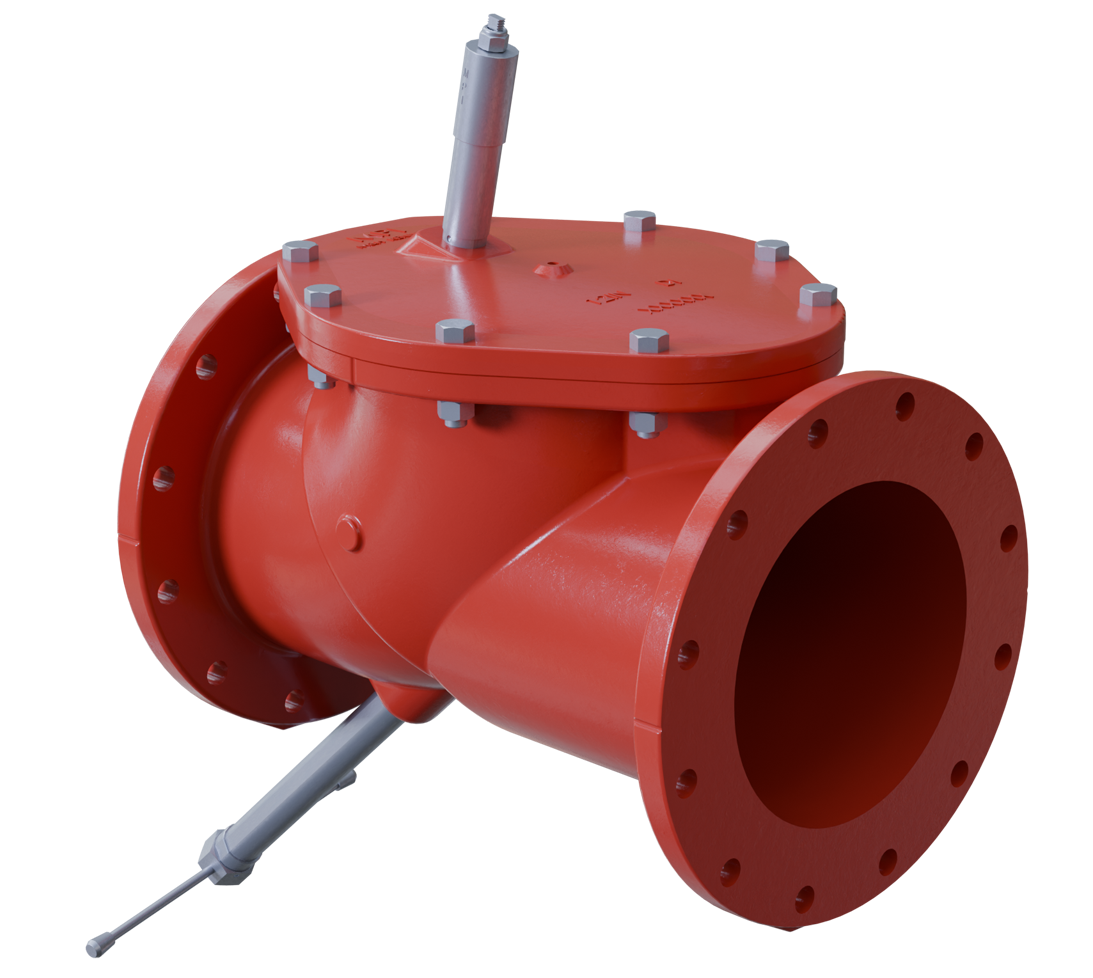

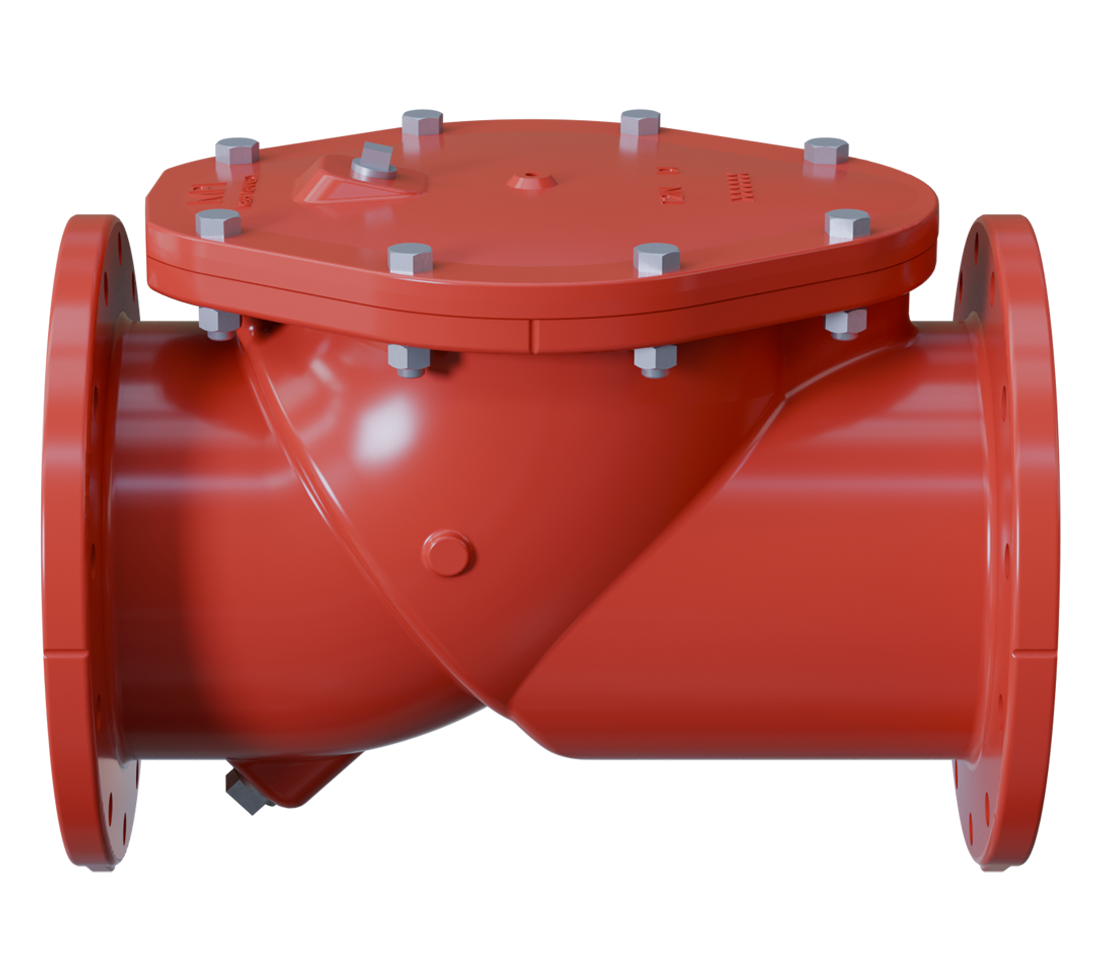

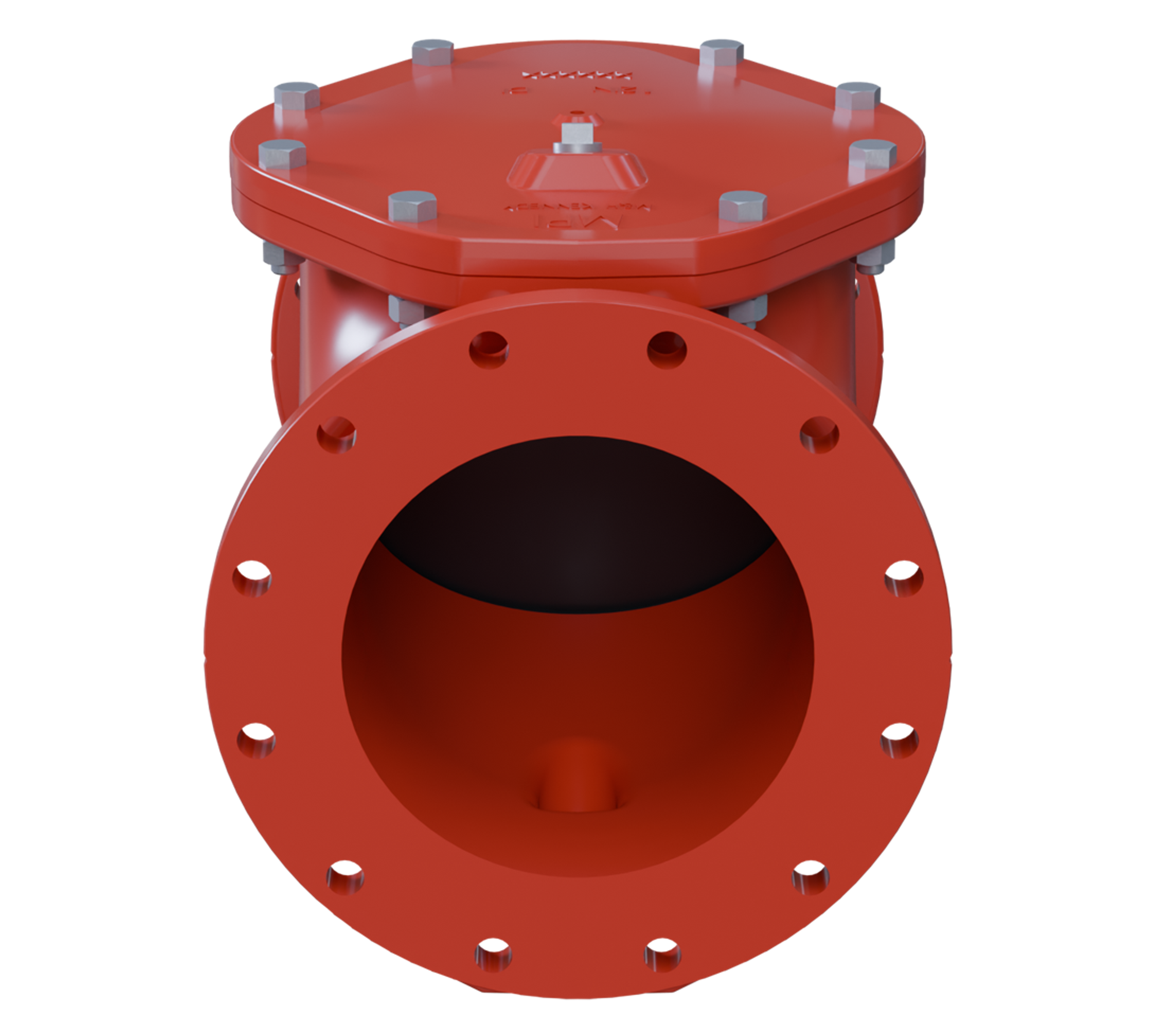

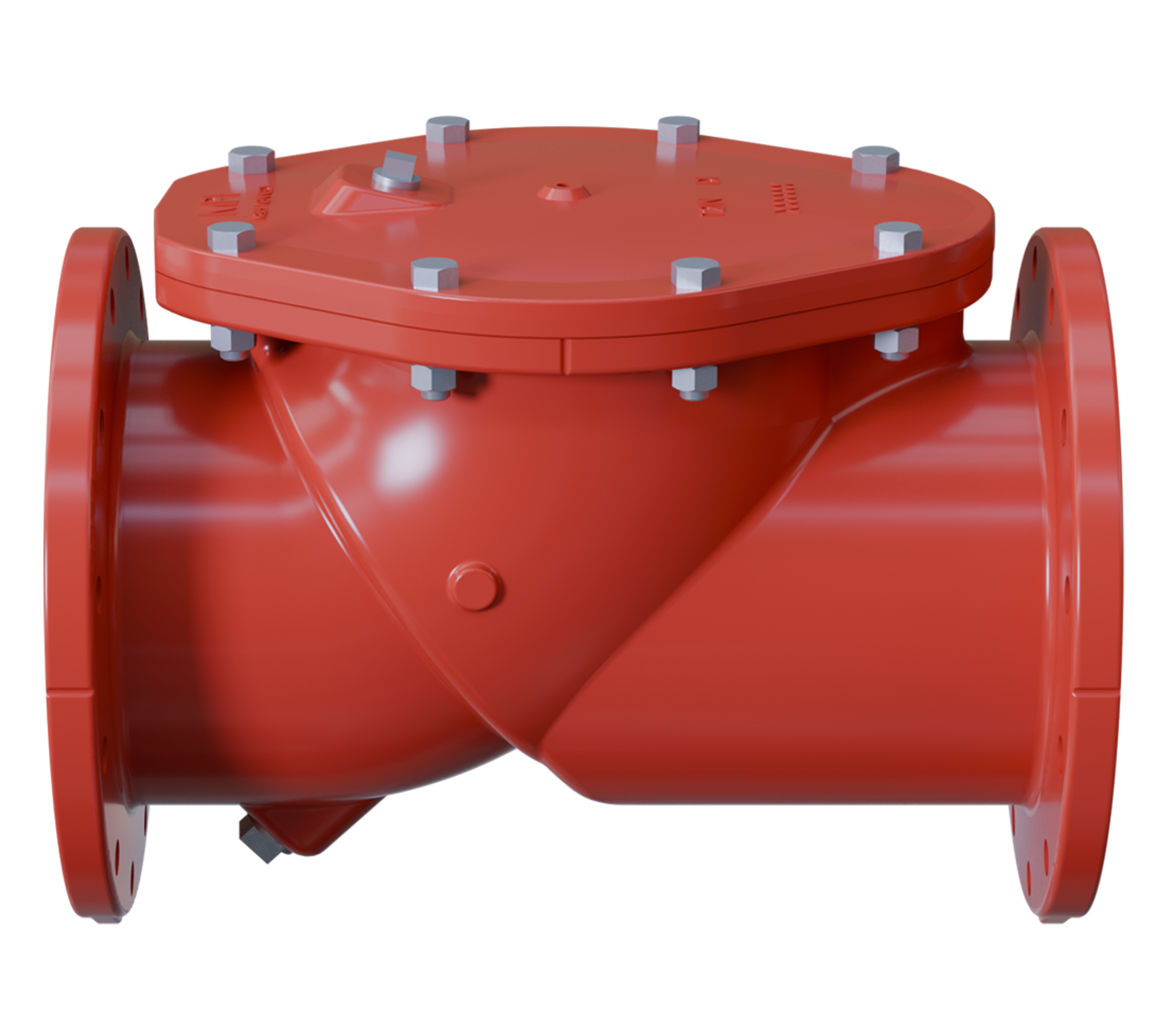

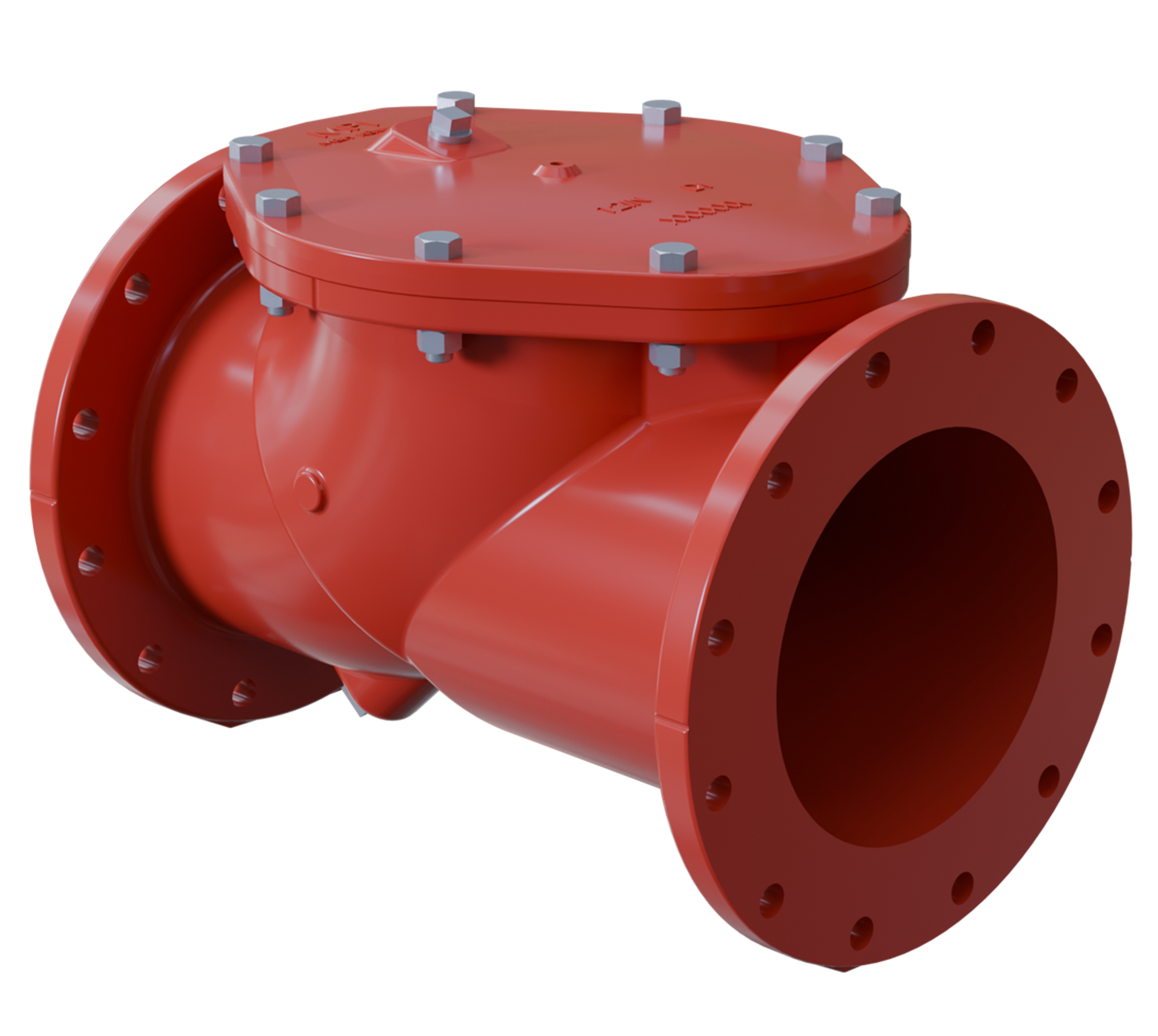

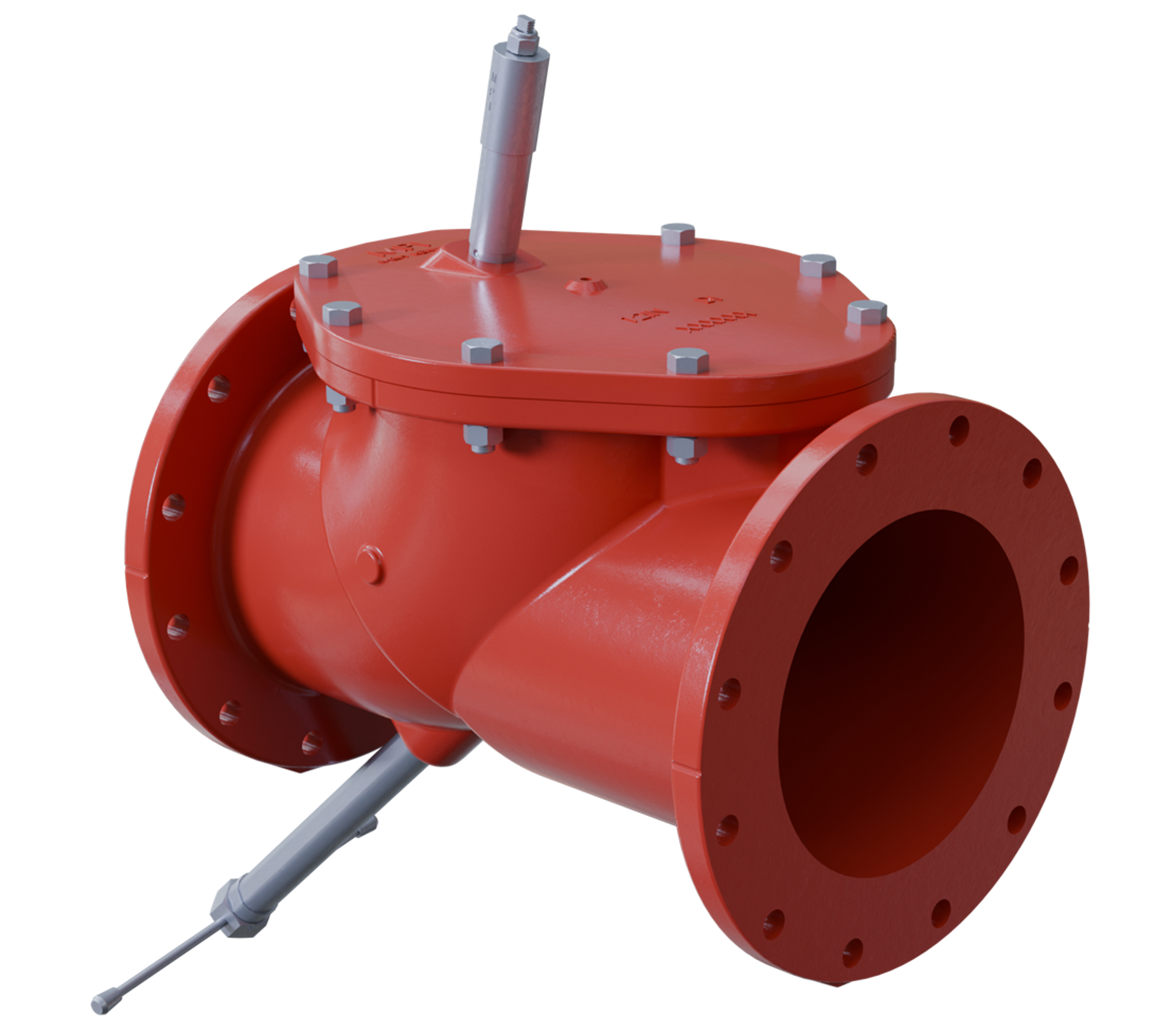

KEN-FLEX Check Valves (AIS/BABA)
Specifications
- Size Range
3"-12" - Body Materials
ASTM A536 65-45-12 Ductile Iron - Temperature Range
0°-250°F - Operating Pressure (CWP)
250PSI - Disc Materials
EPDM - Body Style
FLG - Design & Testing Standard
AWWA C508 - Flange Drilling
ANSI B16.1 Class 125 - Testing Standard
AWWA C508 - Certifications
NSF 61, NSF 372 - Accessories

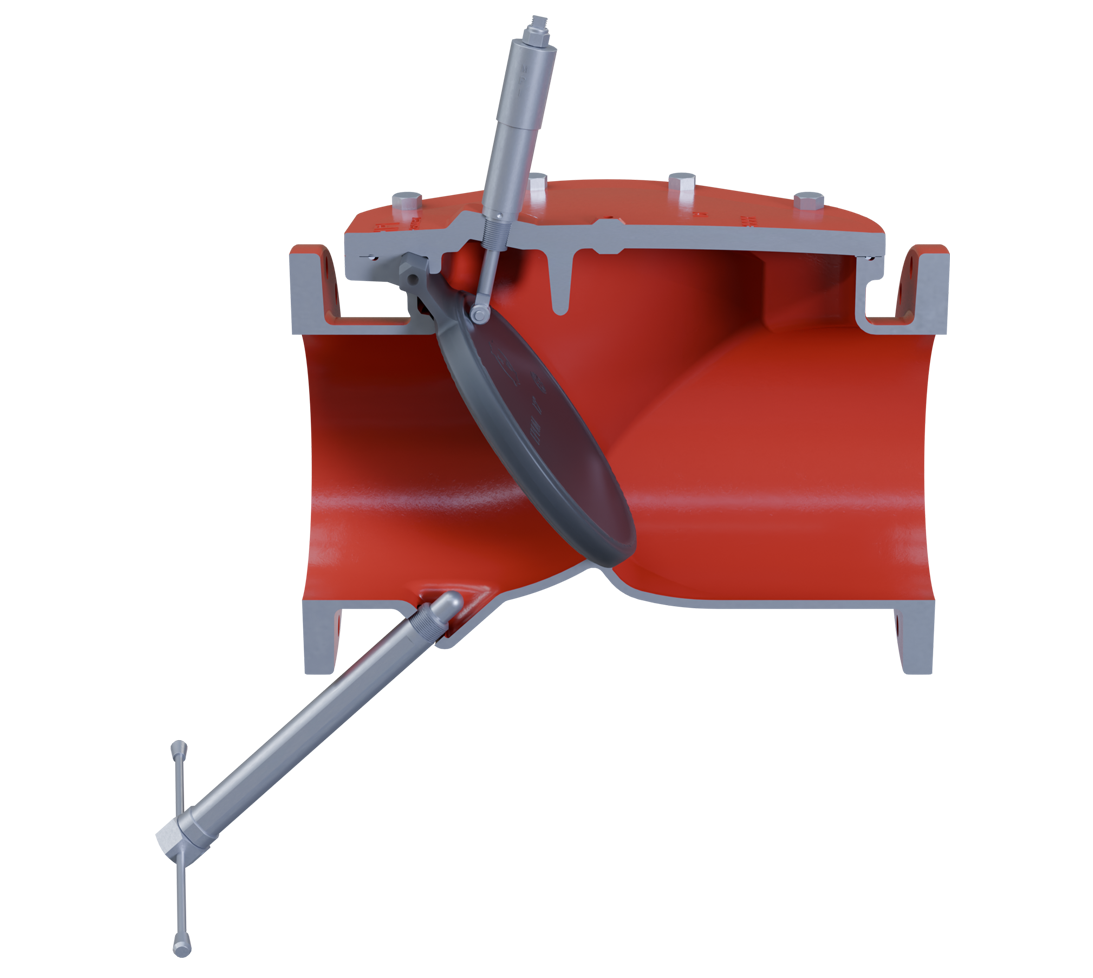

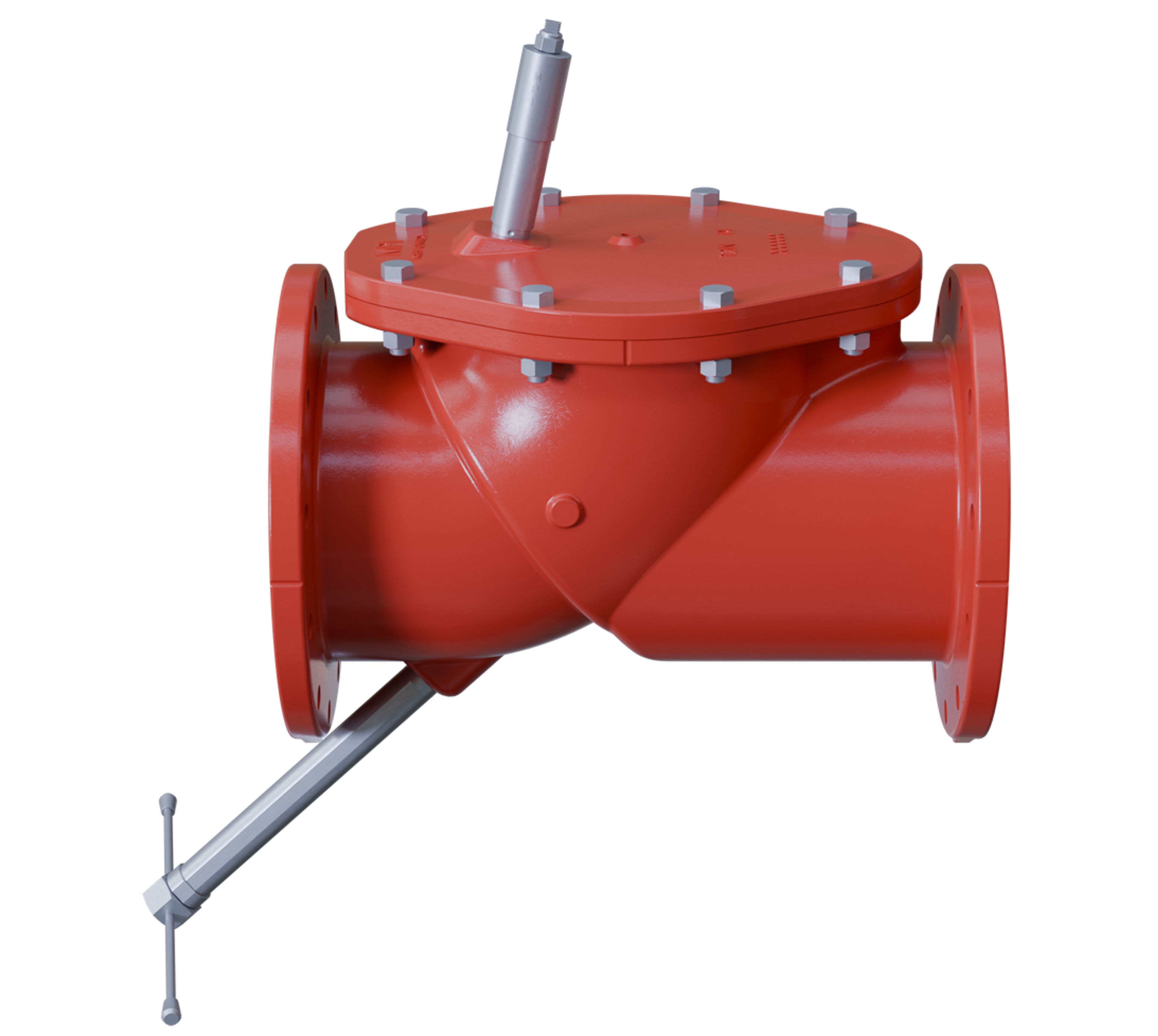

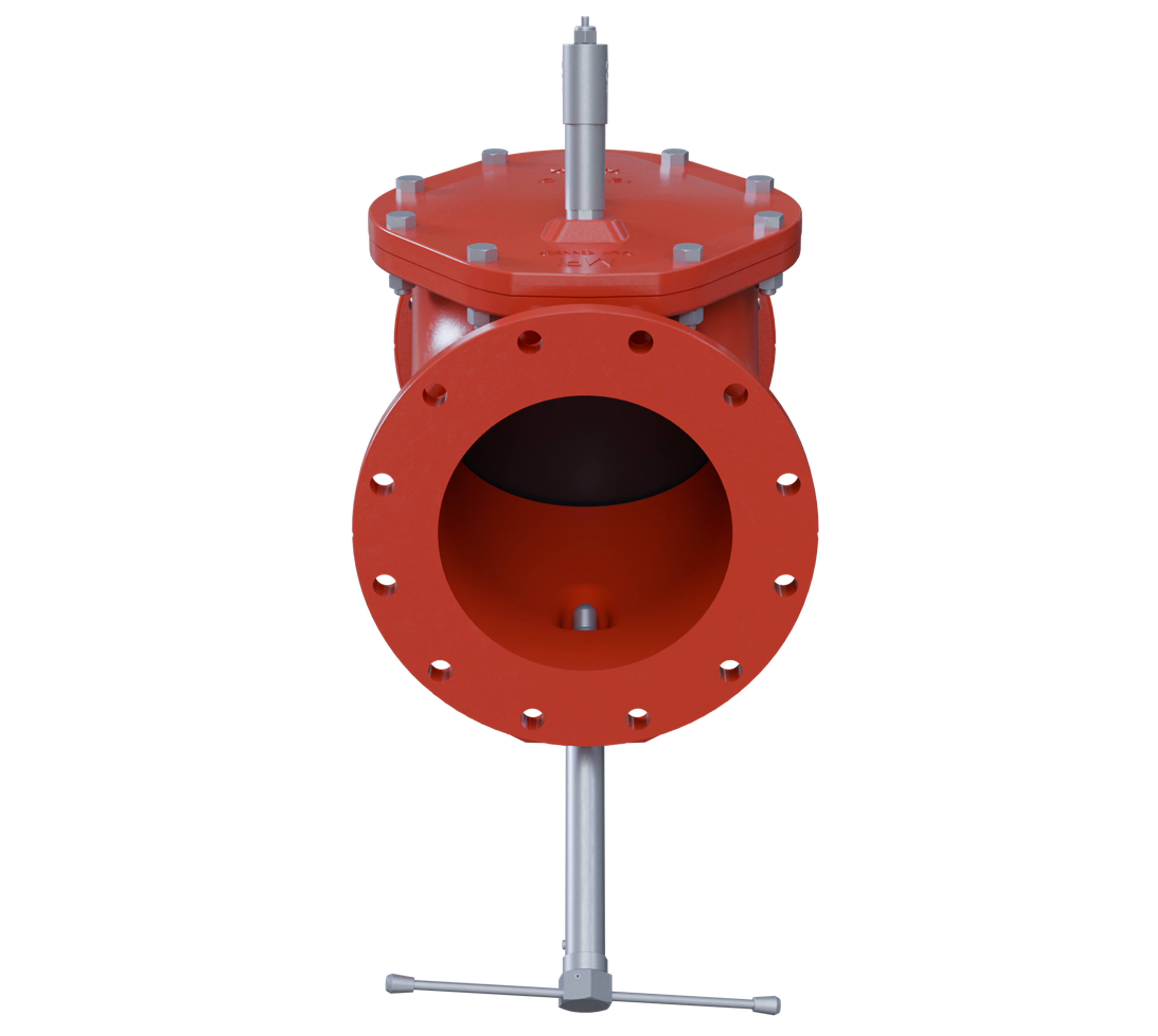

Position Indicator, Limit Switch, Jack Screw

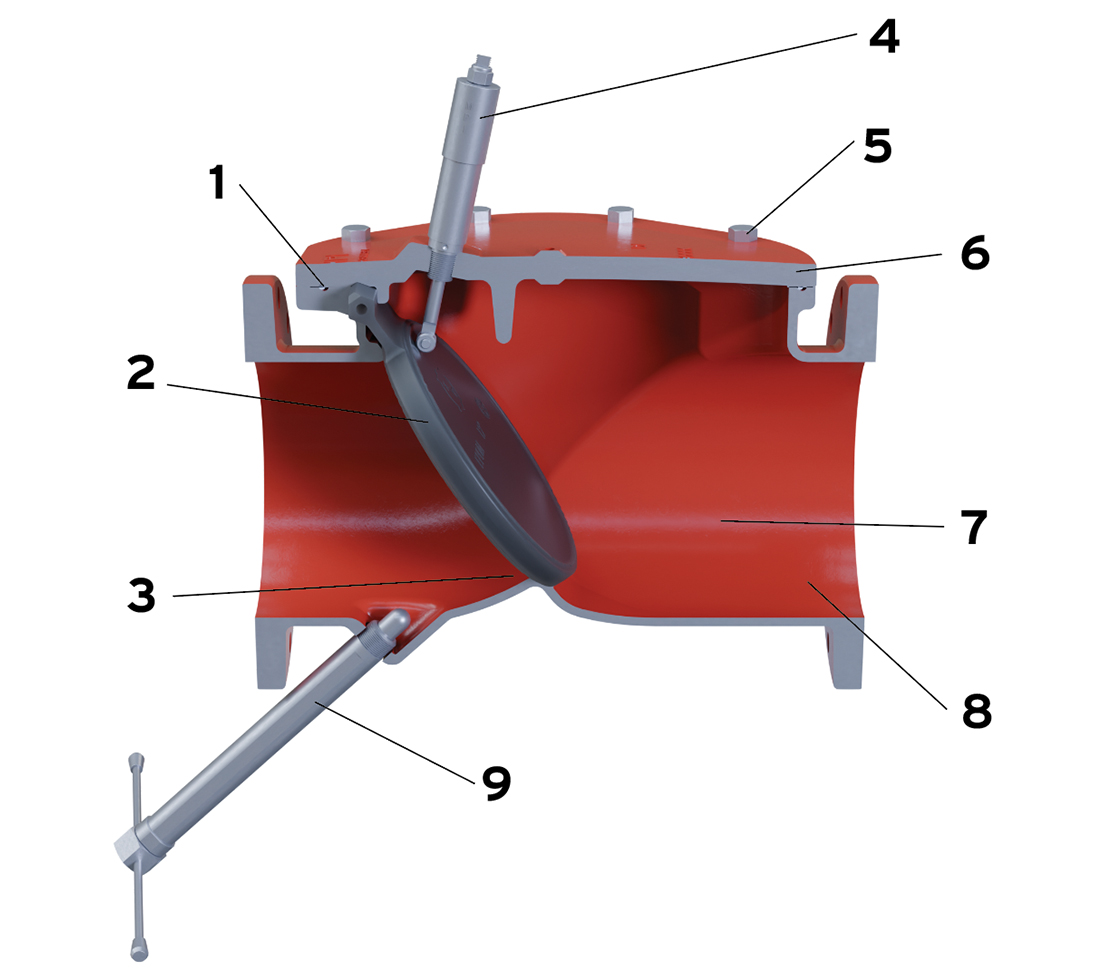

Features & Benefits

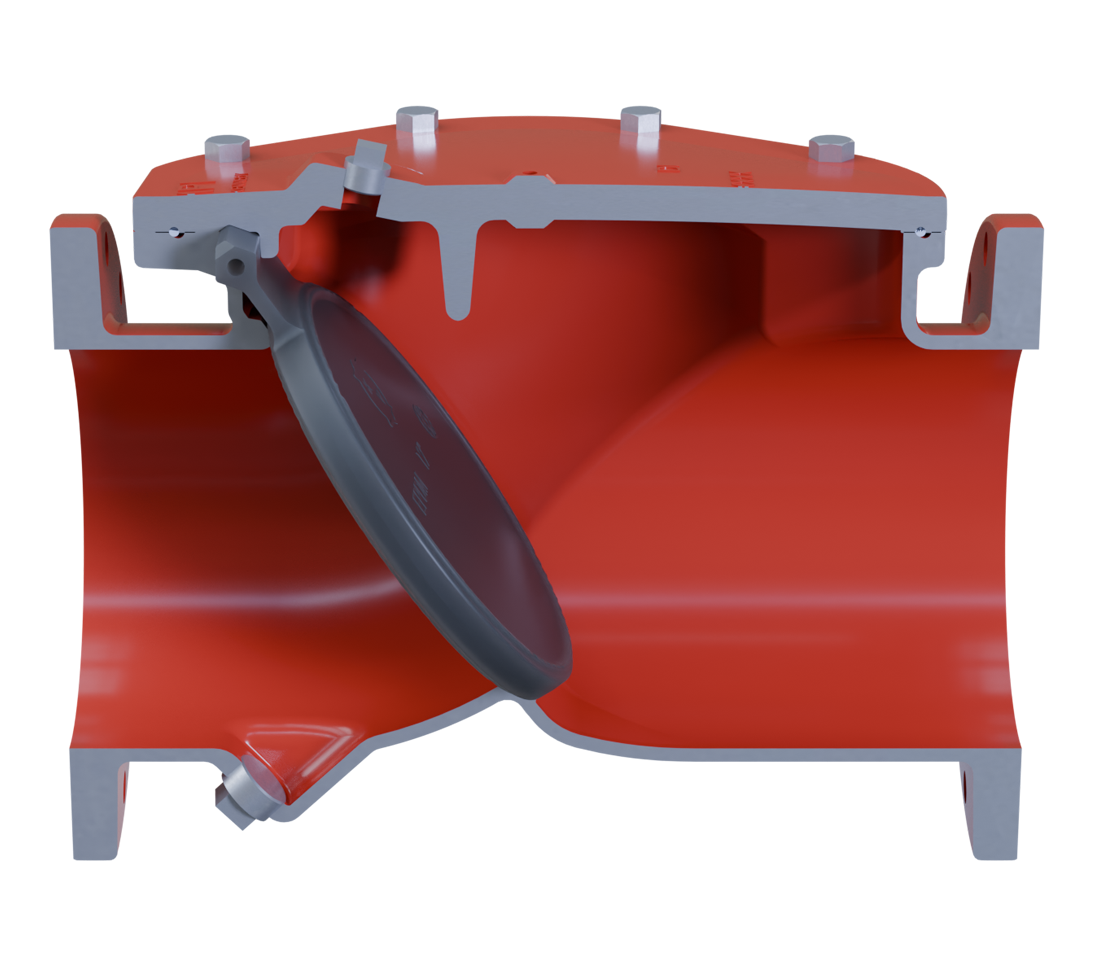

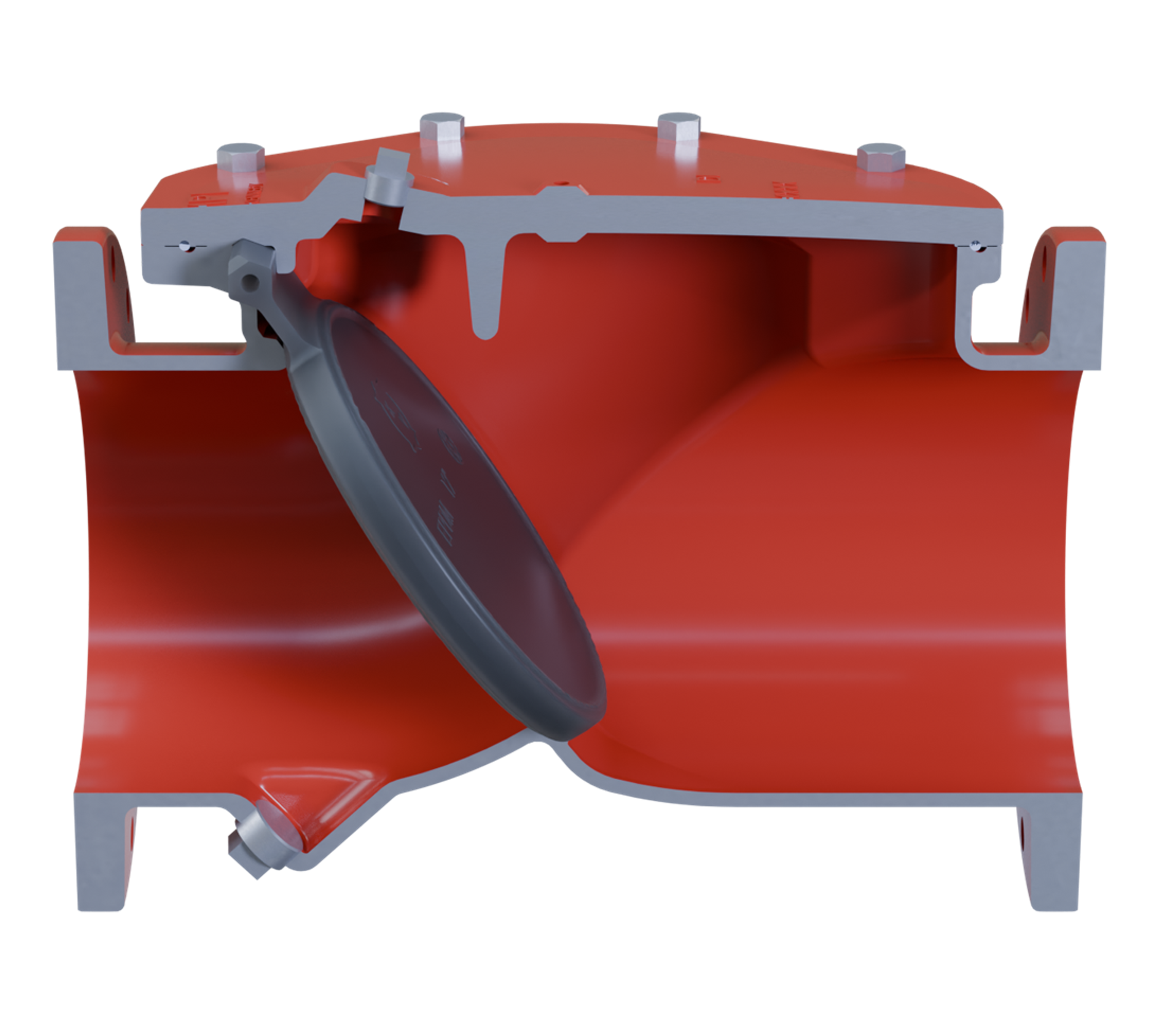

Low-maintenance • EPDM flapper is only moving part • Anti-corrosion encapsulation of disc and hinge • Flapper is accessible through full-size top cover with valve in line • O-ring seat seal is integrated into flapper • No scheduled maintenance nor lubrication required

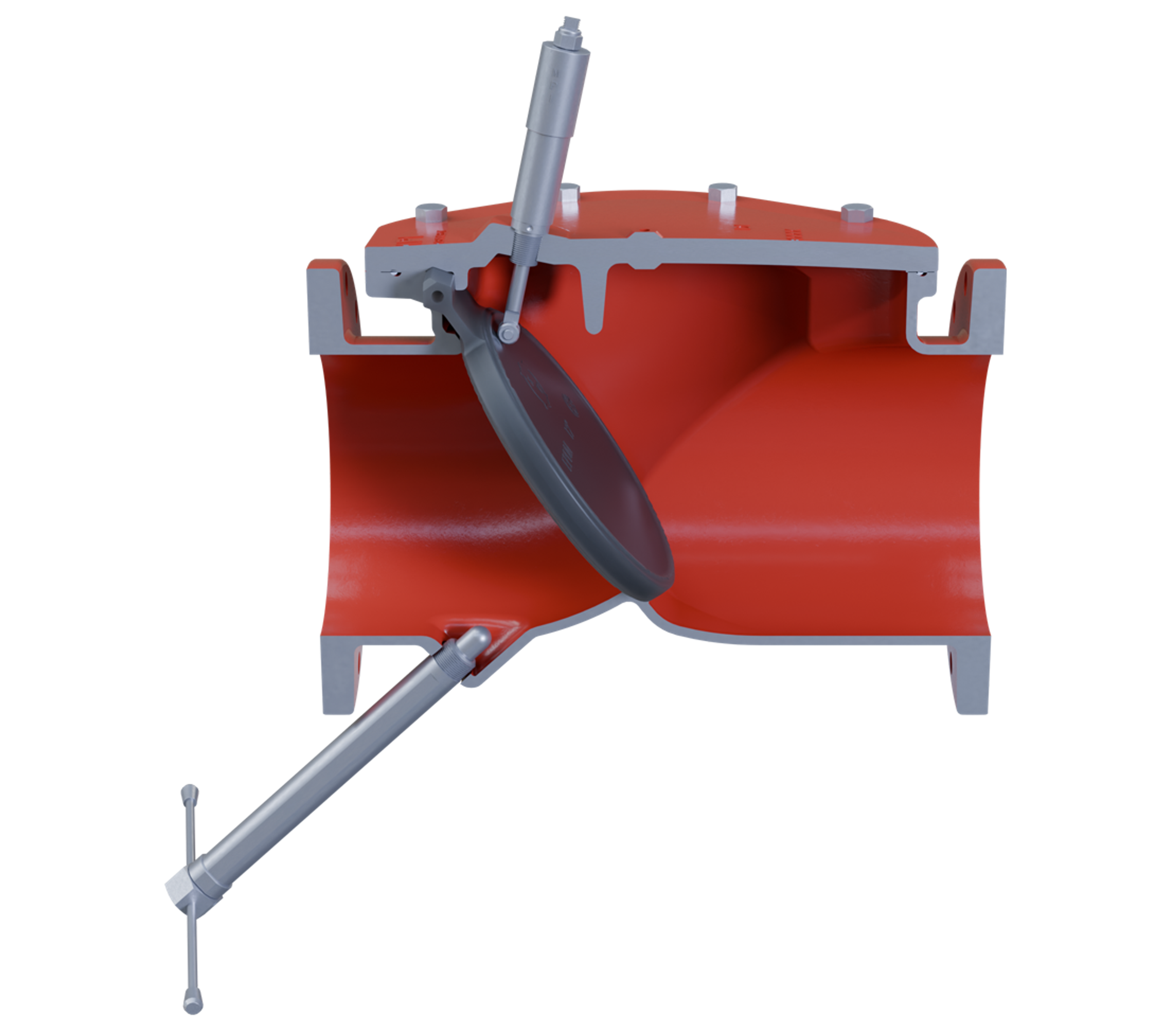

Fast-closing • Quiet operation with non-slam design • Reduces likelihood of water hammer • Disc seated at 45° angle with only 35° travel from fully open to fully close position • Disc hinge flexes into open position and snaps back into closed position • Optional spring-loaded position indicator accelerates closing
