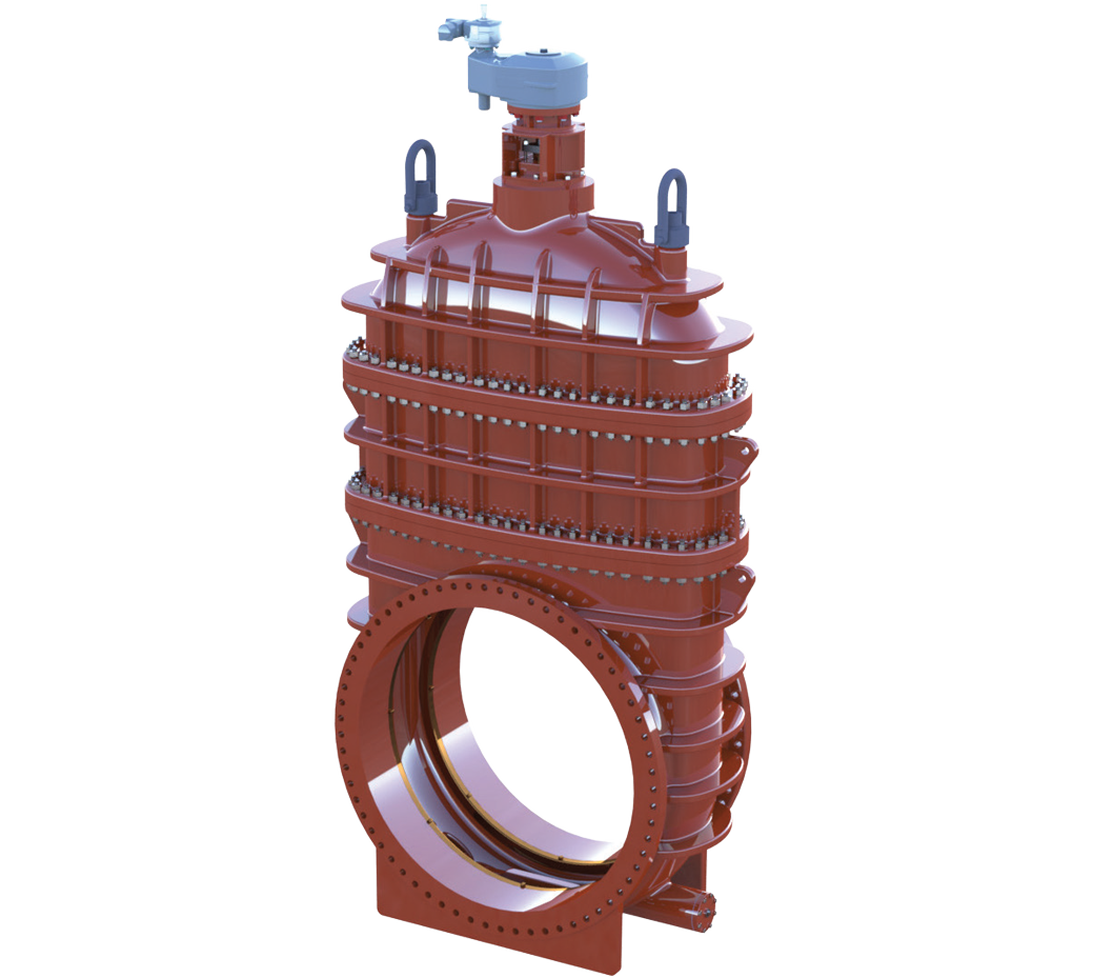

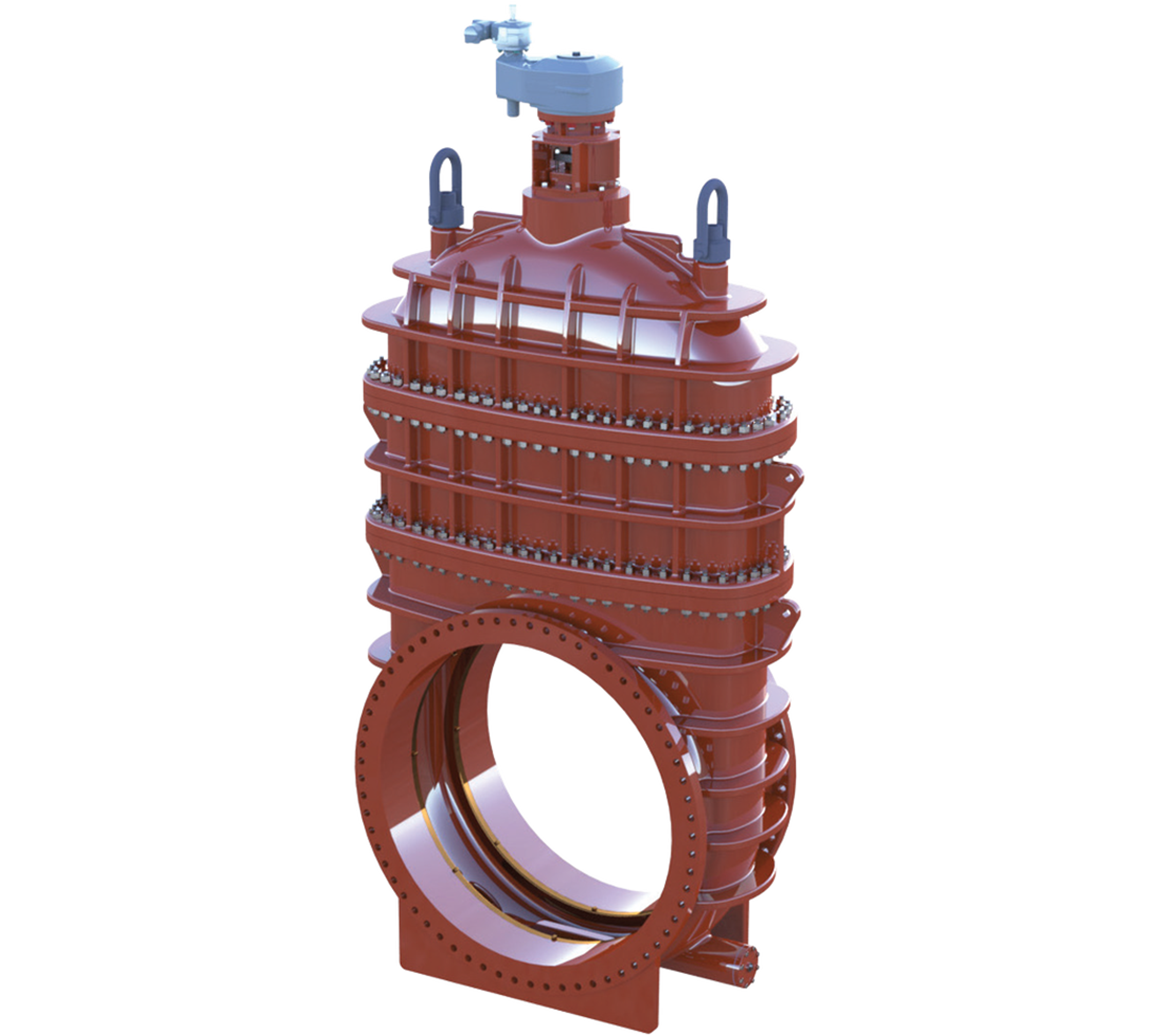

Rotating Double Disc Gate Valves
Specifications
- Size Range
3"-108" - Temperature Range
33°-160°F - Operating Pressure (CWP)
250PSI, 300PSI Available - Body/Bonnet Materials
ASTM A536 65-45-12 Ductile Iron - Disc/Wedge Materials
ASTM A536 65-45-12 Ductile Iron - Body/Disc Seat Ring Materials
Bronze - Stem Nut
Bronze - Shaft Materials
ASTM A276 T304SS - Body Style
NRS or OS&Y, (FLG, MJ) - Design/Test Standard
AWWA C500 - Flange Drilling
FLG – ANSI B16.1 Class 125 & 250; MJ – ANSI/AWWA C111/A21.11 - Certifications
NSF 61, NSF 372 - Face to Face
AWWA C500 - Exterior Fasteners
T304 Stainless Steel; optional offering T316 Stainless Steel
Features & Benefits
- Rotating Disc Creates a Different Seating Position Each Time the Valve Is Closed - Adds years of operation without maintenance or replacement.
- Self-Cleaning Seat - Deposits are removed in travel, so nothing builds up on the seat surface that could cause leaks. Discs are free of pockets that could collect solids.
- Independent Wedging Design and Seating Action - For smoother valve opening and closing. Uses less force.
- Discs Are Fully Interchangeable and Reversible - Ensures simple and inexpensive maintenance.
- Optional Flushing Ports - Help clean out the extra waste that can settle in the bottom of the valve.
- Rollers, Tracks, & Scraper System - Available on size 14” and up horizontal valves.
- Bypass Valves - Side or bottom bypass valves on size 16” and up.
- Internal and External Coating - Suitable for potable water and compliant with AWWA C550.
- Self-Adjusting Bronze Scrapers - Allow valve mounting in horizontal position or angle as specified from vertical or horizontal center lines.
- End Connections: Flanged ASME B16.1 Class 125 or 250 Mechanical Joint Mechanical Joint by Flange
