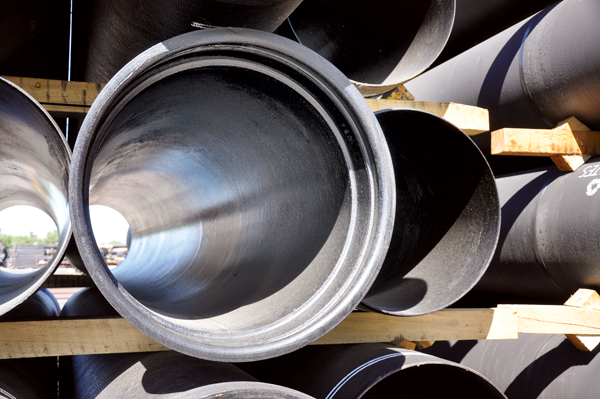

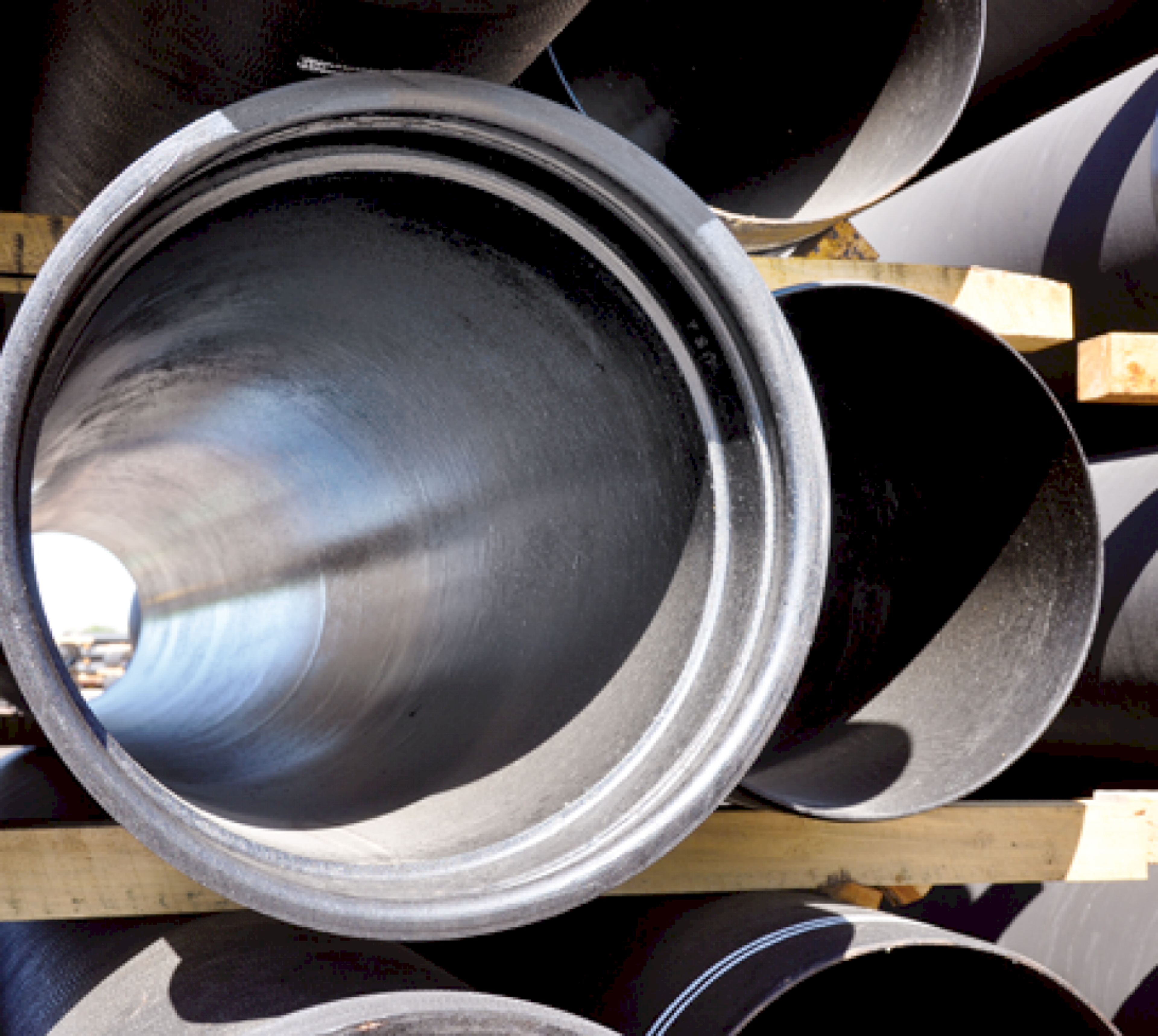

Tyton®Joint Pipe Photo #1

Specifications

  • Size Range:
    3"- 36"
  • Pipe and Flange Material:
    Ductile Iron
  • Lining Options:
    Cement Lining (standard or double thickness), Protecto 401®, others as required
  • Coating Options:
    Asphaltic Coating, Zinc, Bare
  • Length:
    18' Nominal
  • Deflection:
    5°
  • Pressure Rating:
    Determined by Pipe Class
  • Pipe Class:
    Special Thickness Class and Pressure Class avaialbles
  • Applicable Standards:
    Thickness Design of DIP - ANSI/AWWA C150/A21.50 Ductile Iron Pipe for Water & Other Liquids - ANSI/AWWA C151/A21.51 Cement Lining - ANSI/AWWA C104/A21.4 Gasketed Joints - ANSI/AWWA C111/A21.11
  • Testing:
    Per ANSI/AWWA C151/A21.51

Features & Benefits

Tyton® Joint pipe is manufactured by McWane Ductile in 3-inch to 36-inch diameters in special “Thickness Class” and standard “Pressure Class” selections. As the most widely used gasketing system for pipe in North America and worldwide, the Tyton Joint provides 5 degrees of deflection, allowing easy pipeline routing around obstacles with minimal fittings. Tyton Joint pipe is offered with various lining options, including single and double thickness cement, Protecto 401,™ or bare. Exterior coating options include standard asphaltic paint, zinc, or bare.
