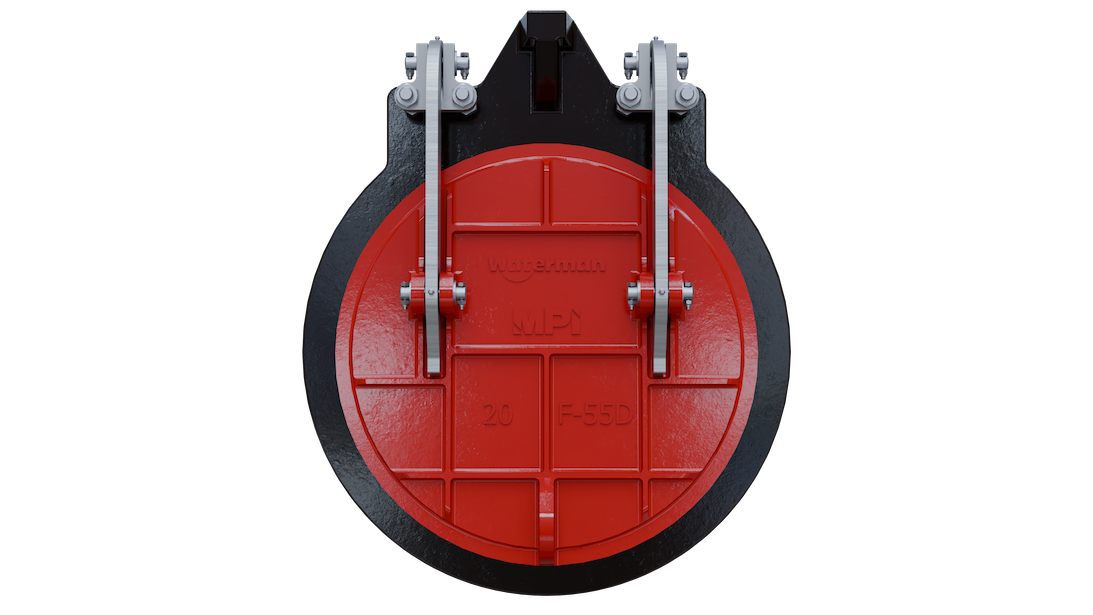

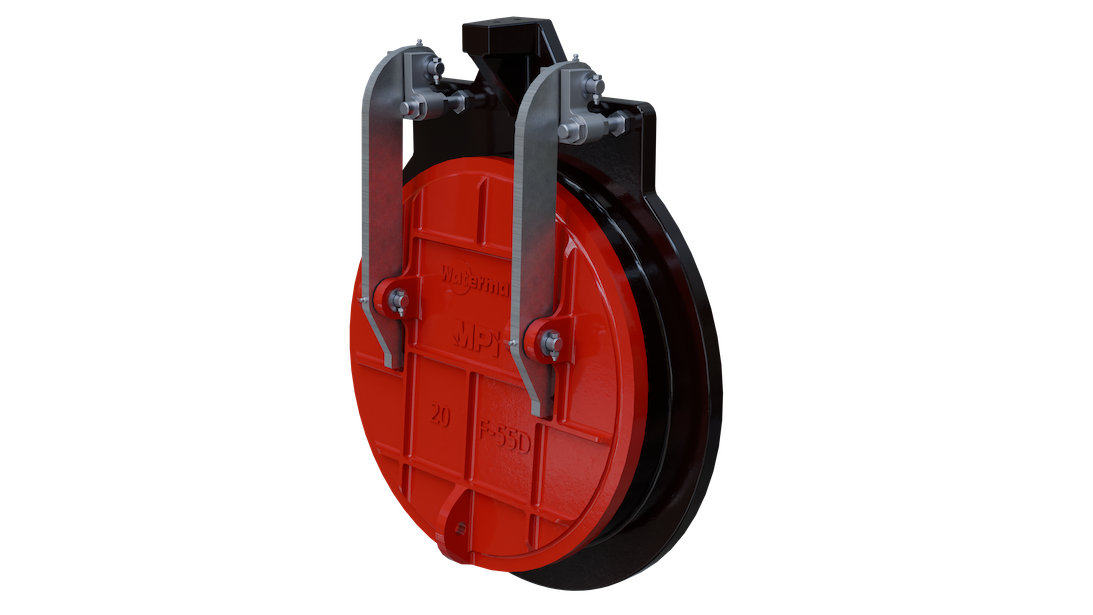

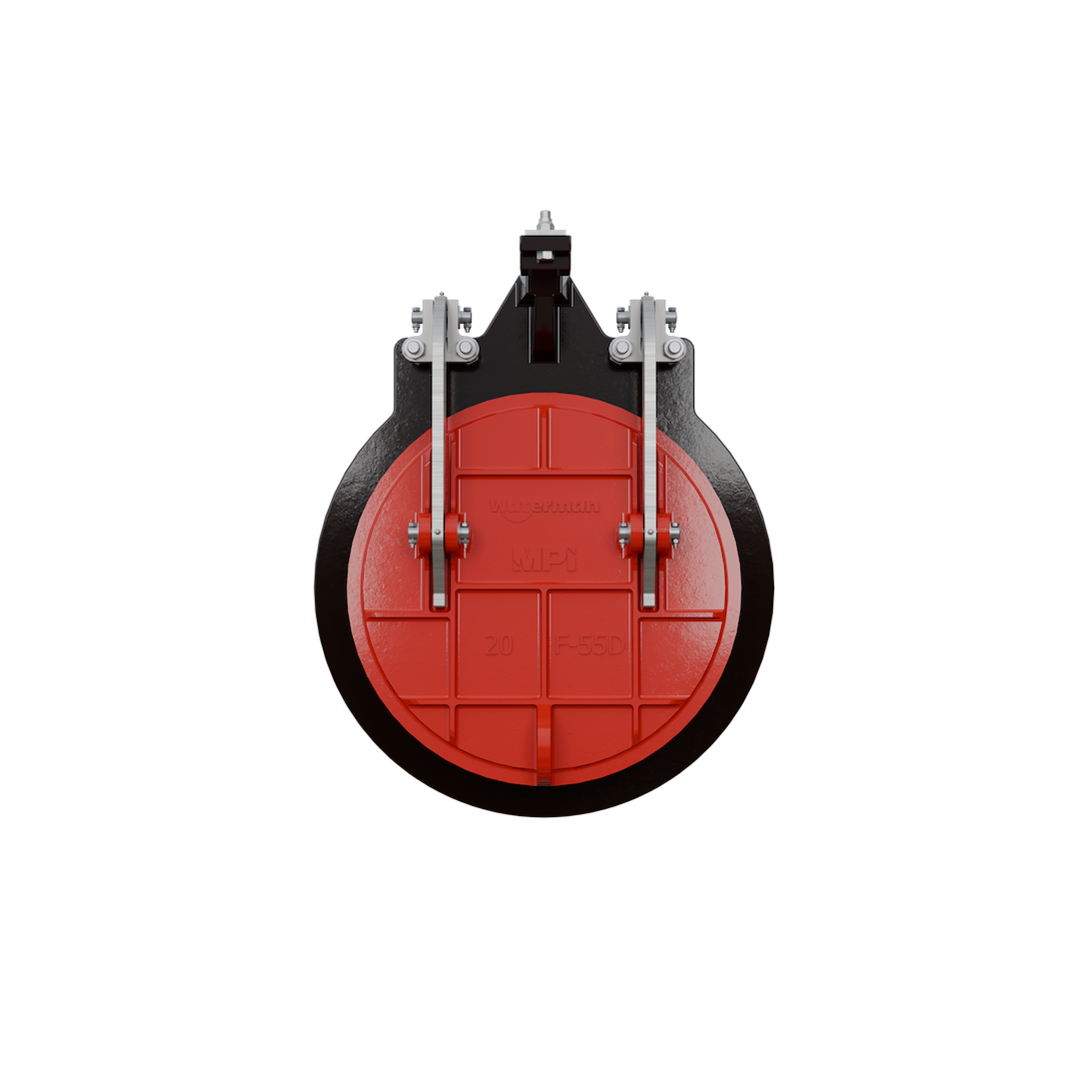

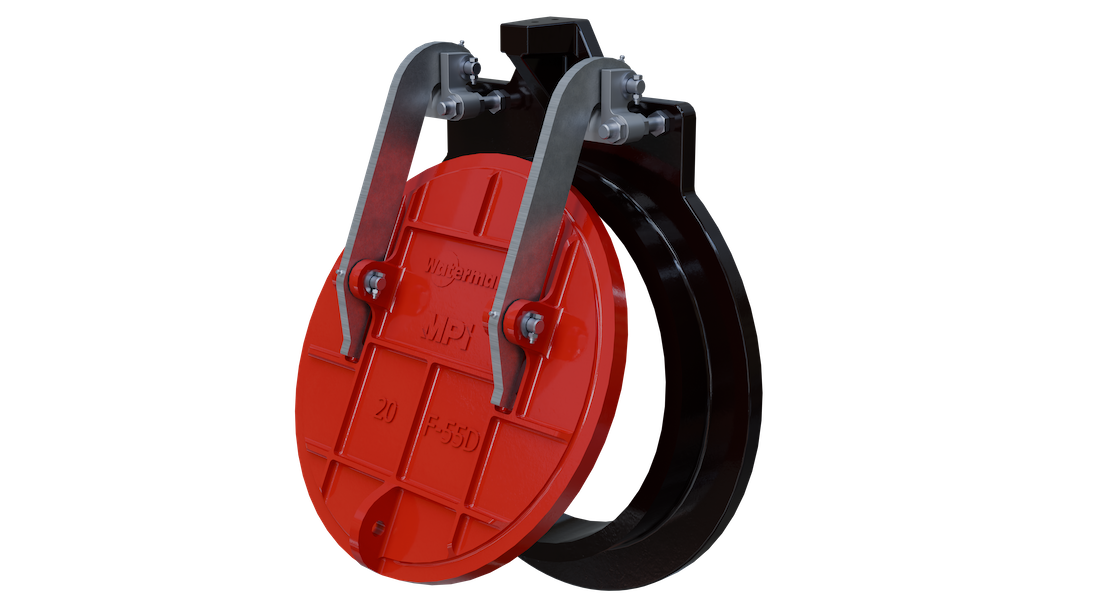

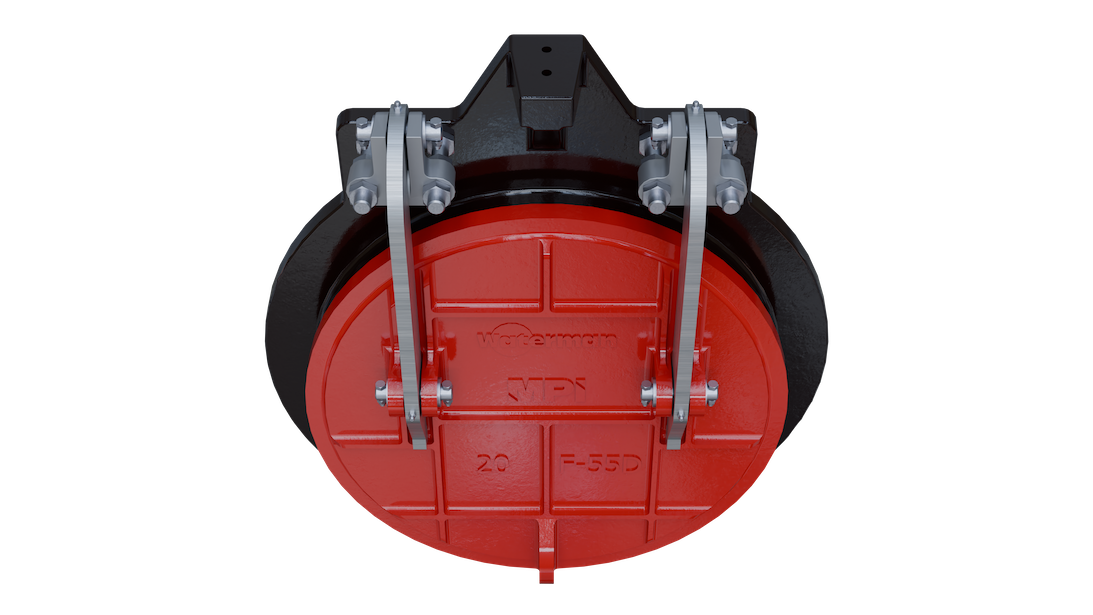

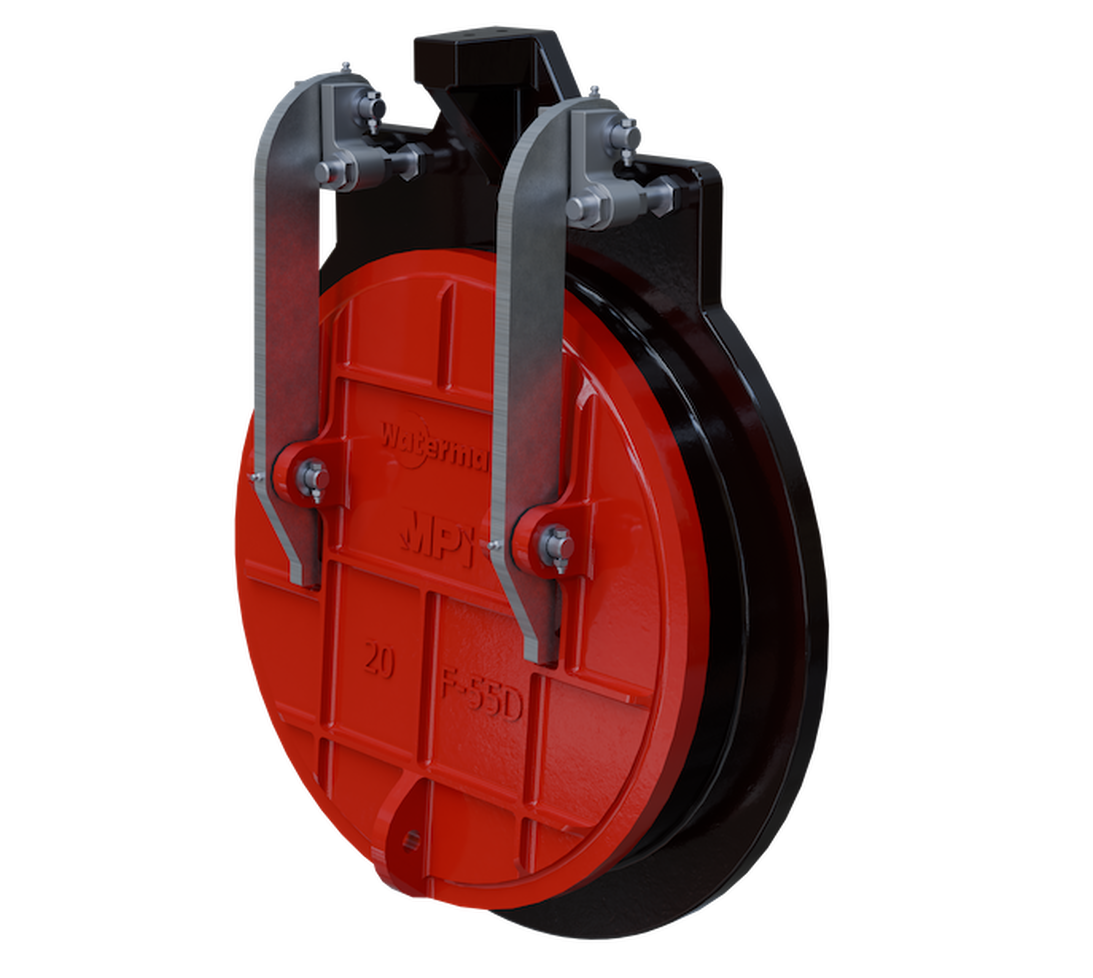

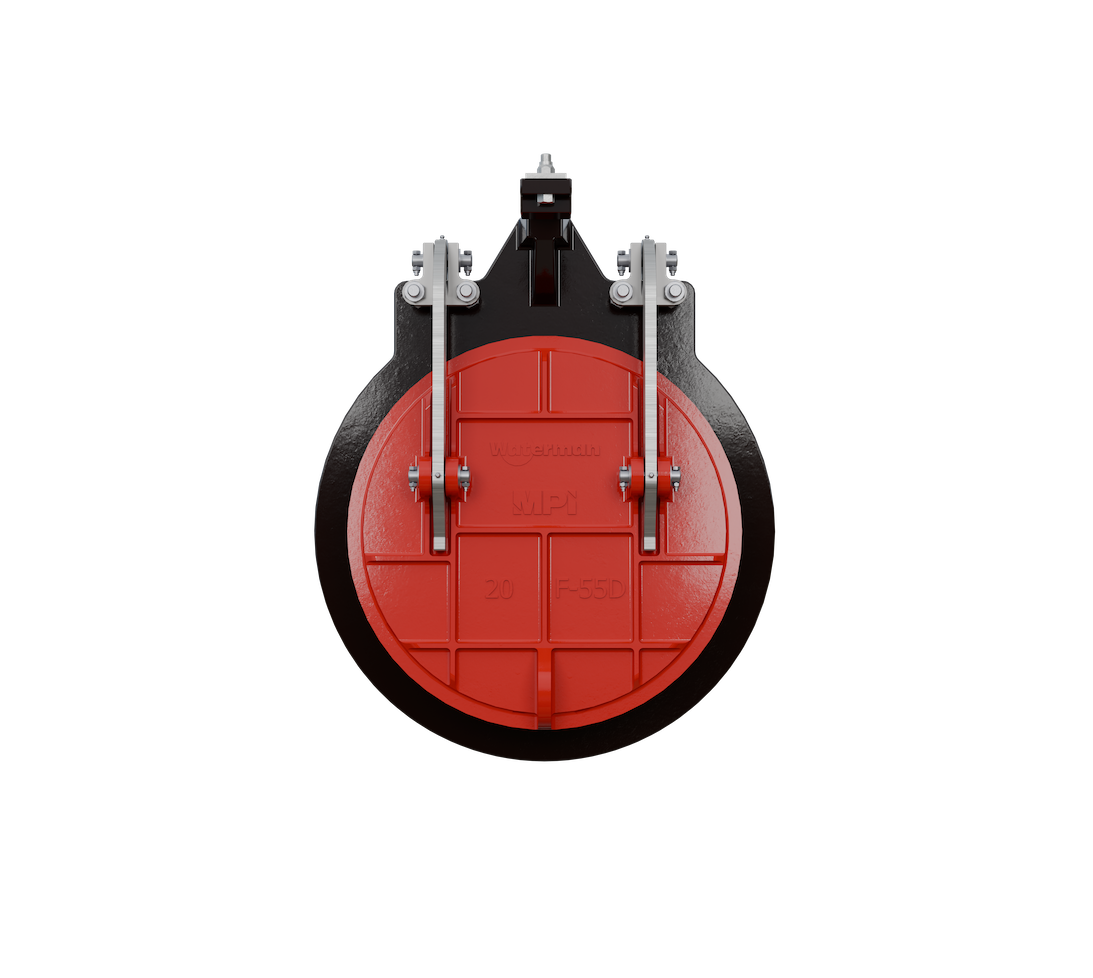

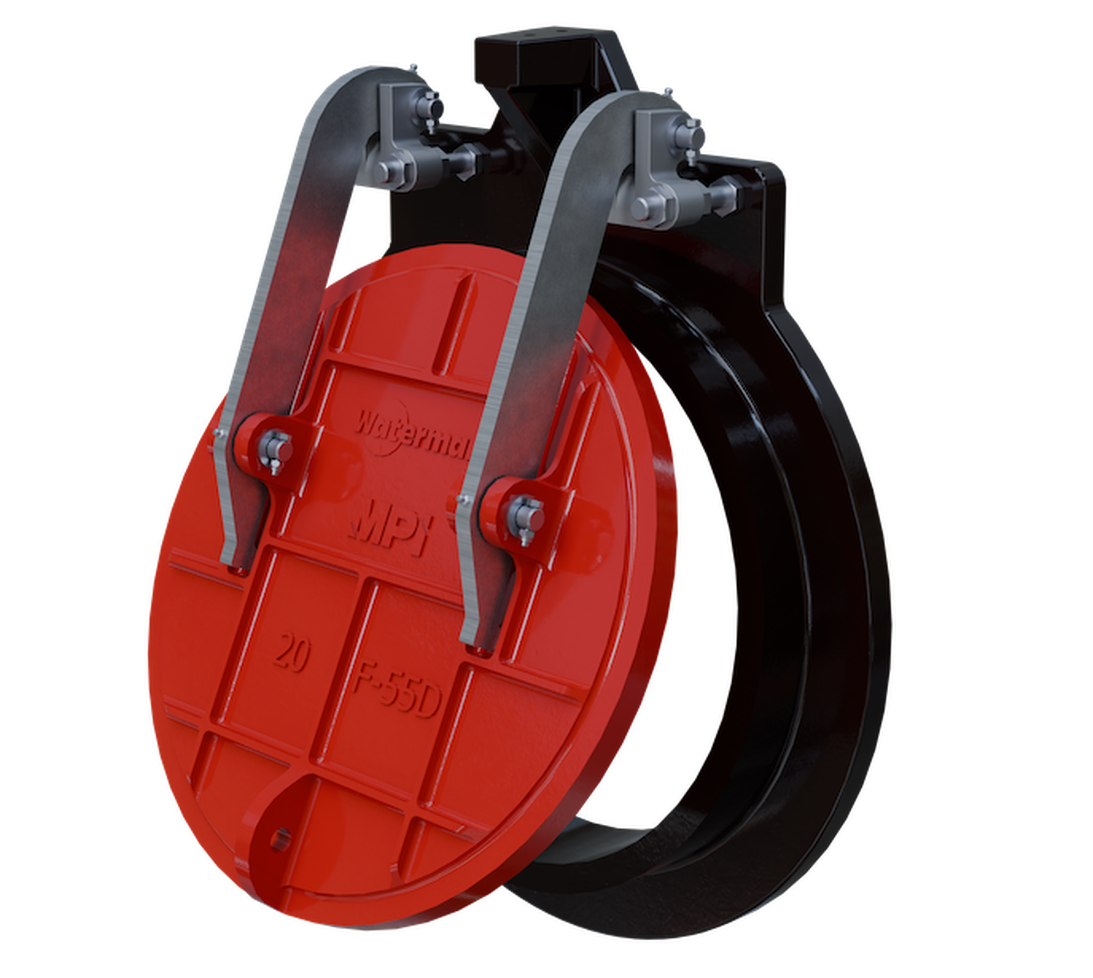

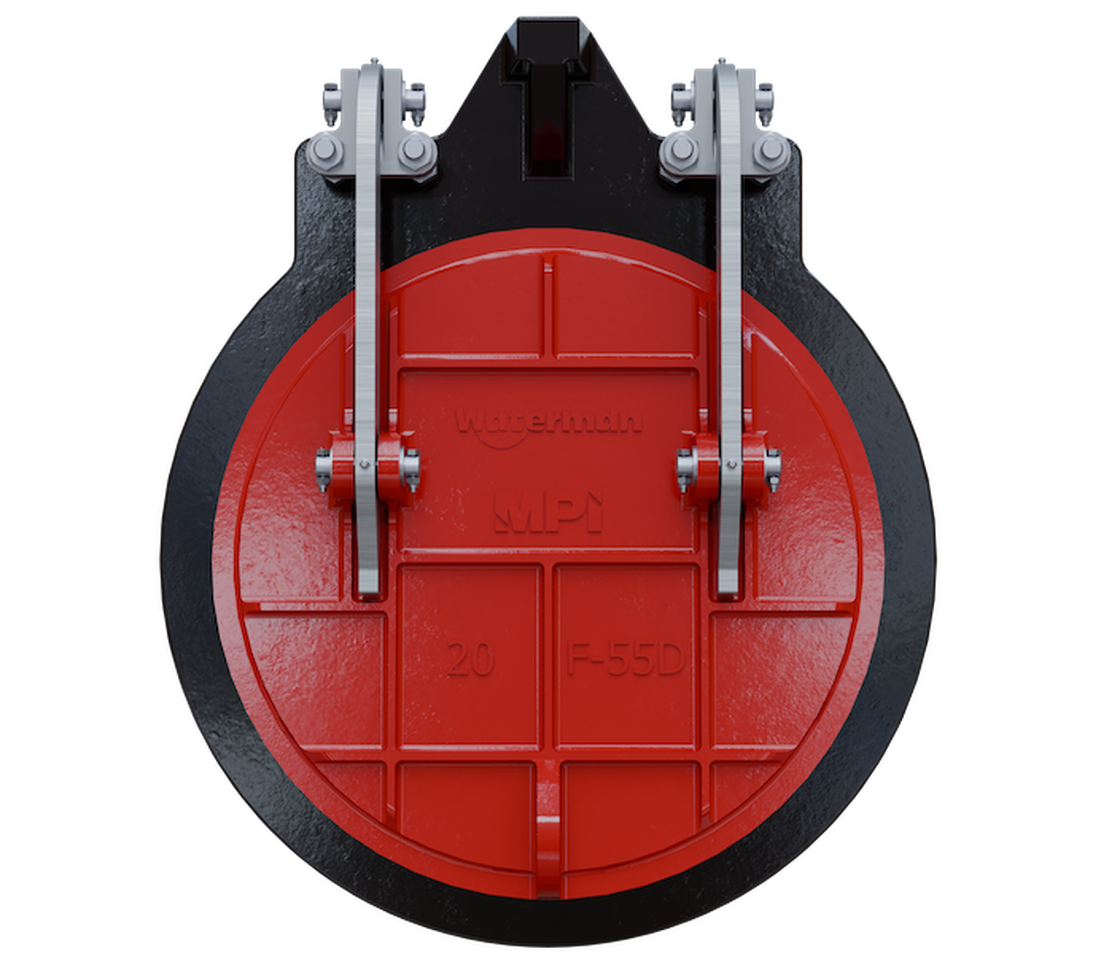

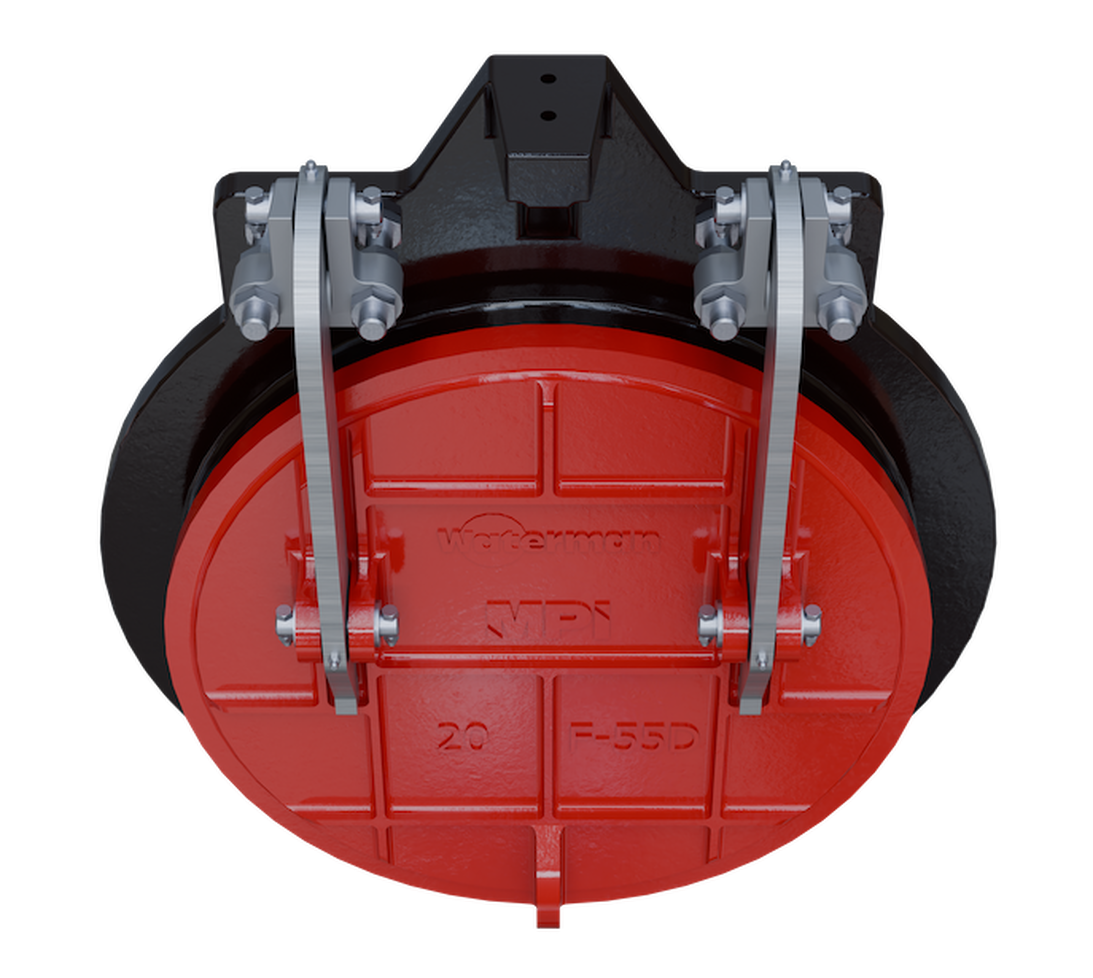

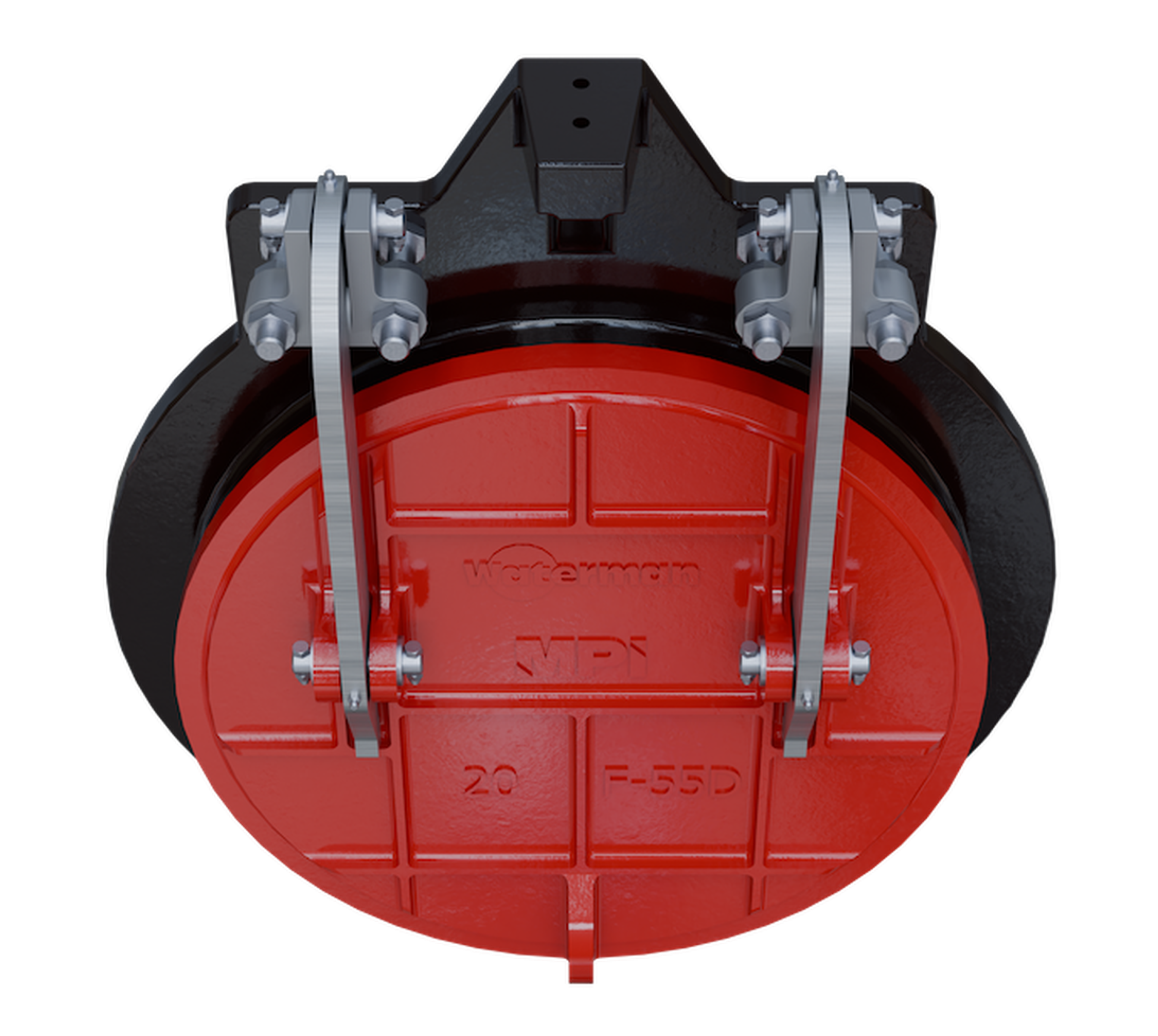

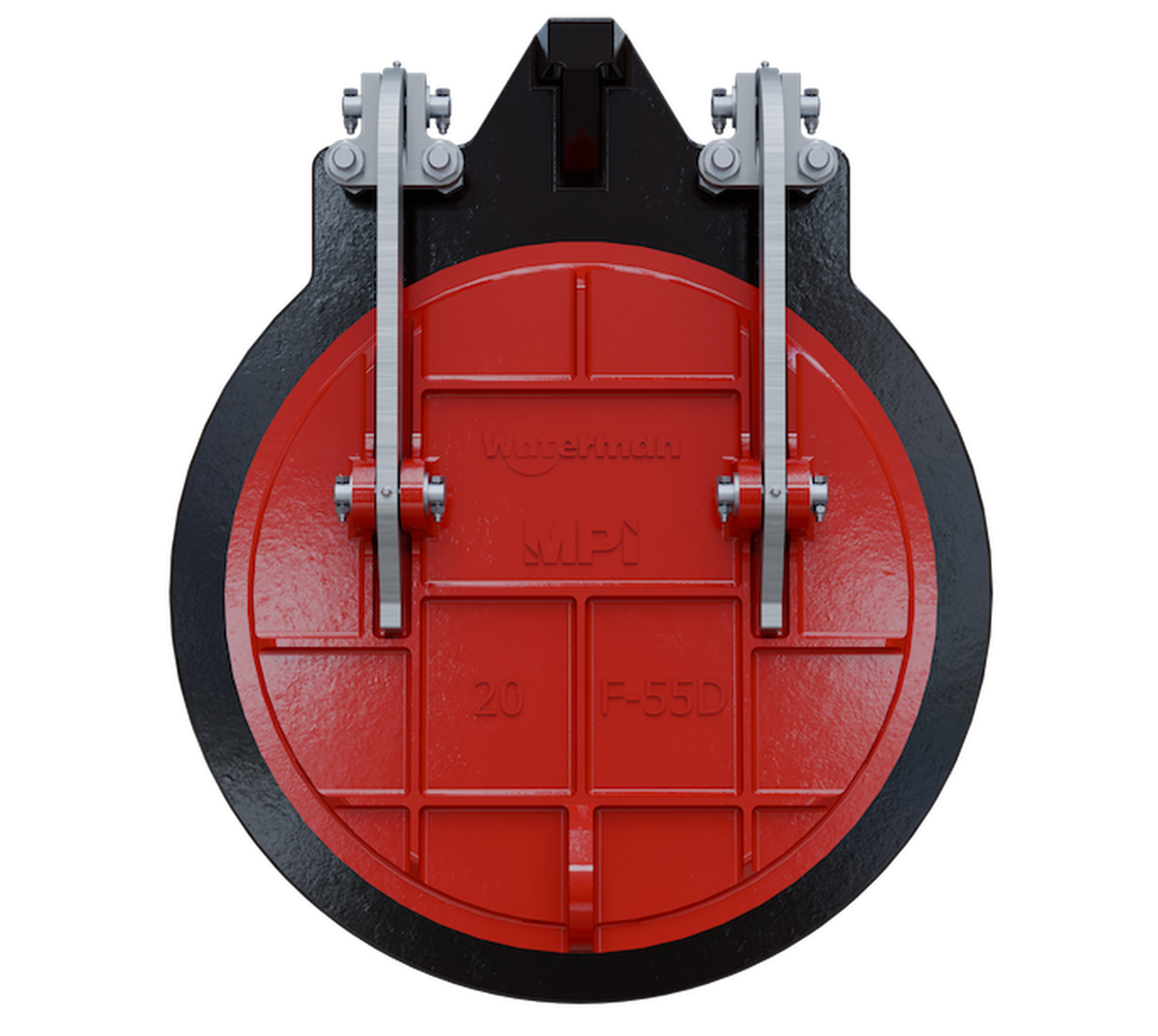

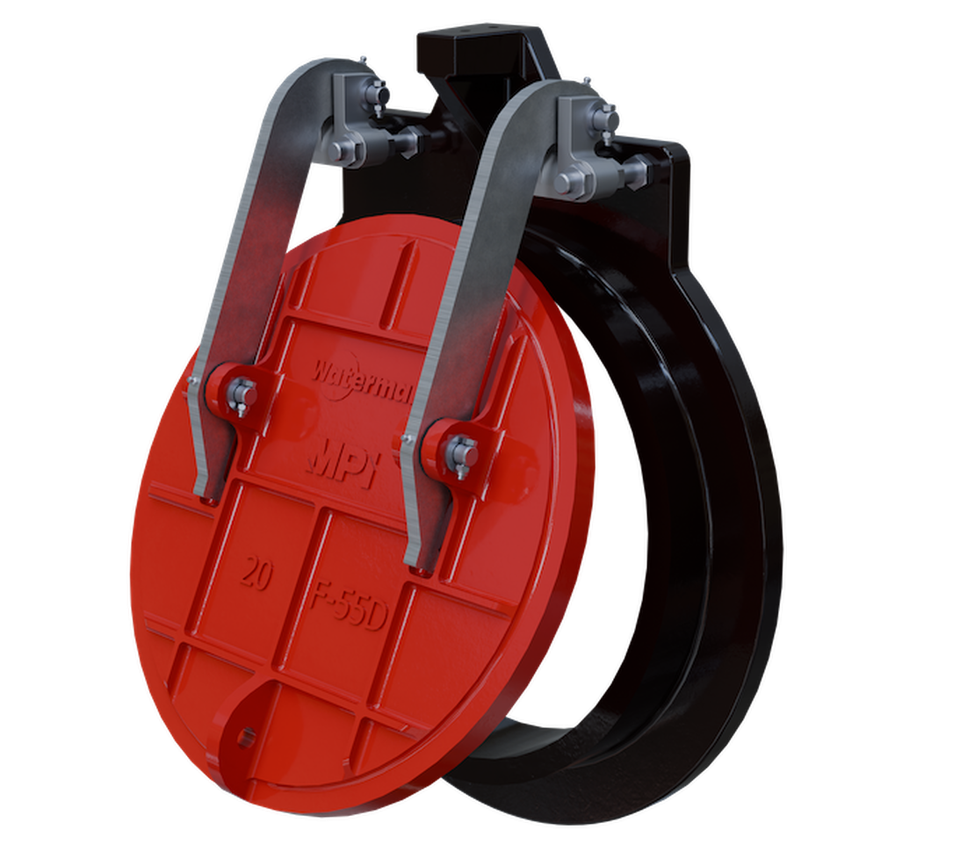

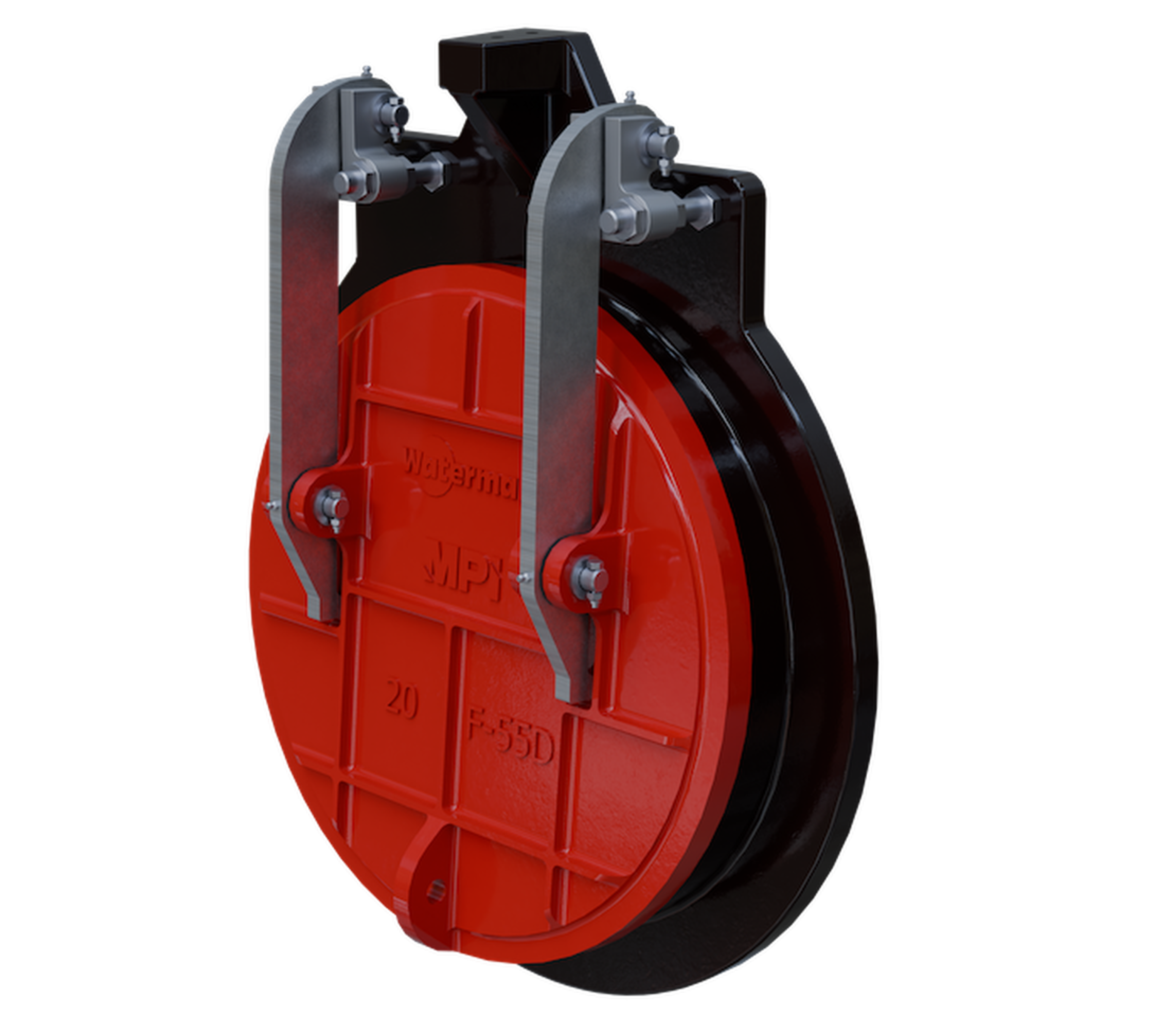

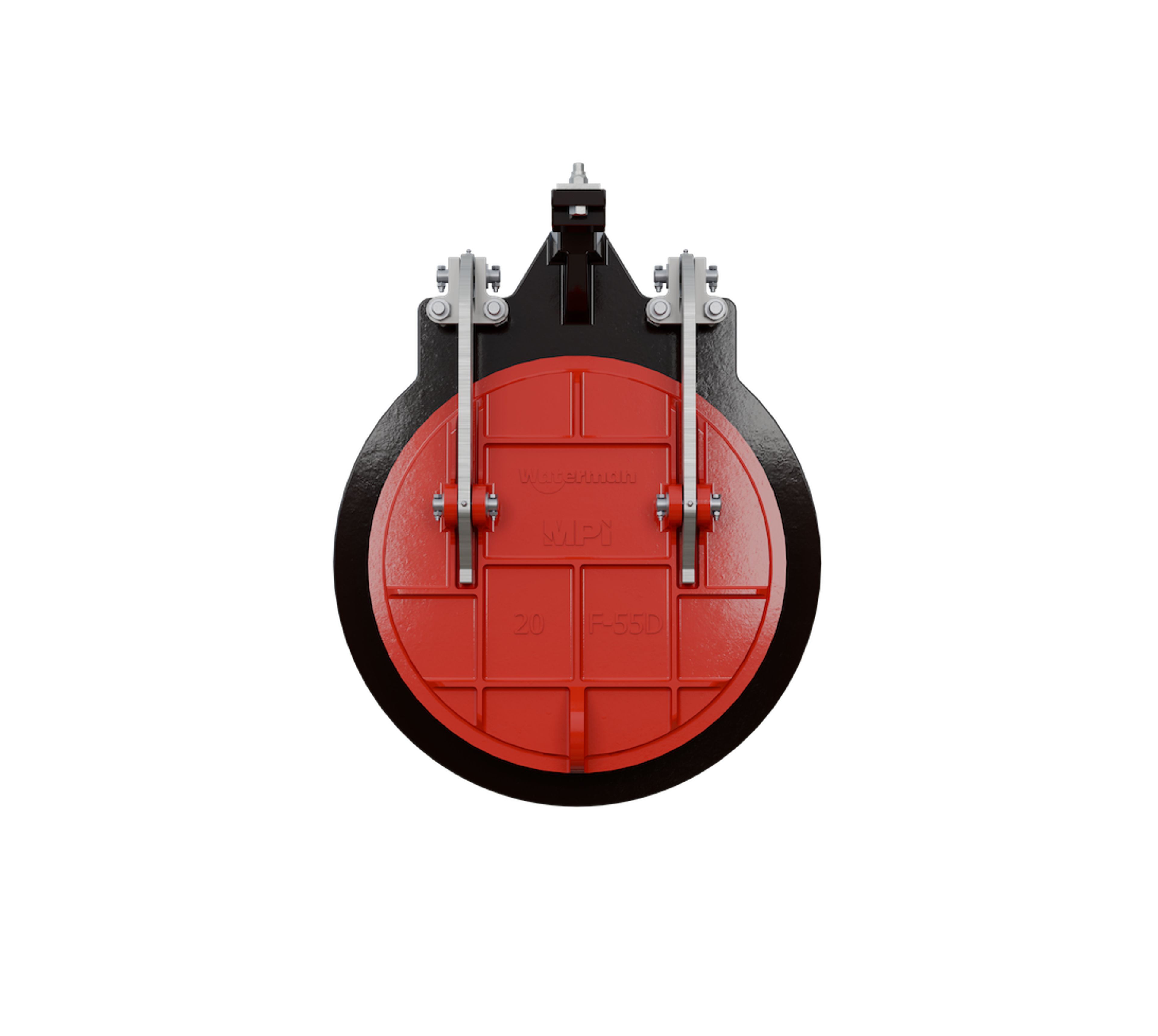

F-55D Flap Gates
Specifications
- Size Range
6" - 108"
- Seating Head
Up to 55 feet
- Seat Angle
5 degrees for 6" - 20"; 2.5 degrees for 24" and larger
- Frame & Cover Materials
ASTM A536 Ductile Iron
- Mounting
Pipe Flanged (125#) or Wall Mount
- Seat Materials
Ductile Iron per ASTM A536 or Naval Bronze per ASTM B21 Alloy C48200 or Neoprene per ASTM D2000
- Flange Drilling
ANSI/AWWA C110, C111 (125-lb standard)
- Hinge Bushings
SAE 30 Oil-Embedded Bronze Bearings
- Assembly Hardware
Stainless Steel per ASTM F593, Type 304 or Type 316 optional
- Hinge Pin & Hinge Link
Stainless Steel per ASTM A276, Type 304 Standard or Type 316
Features & Benefits
- Long-Term Reliability and Quiet Operation The hinge bushing features oil-embedded bearing bronze, a premium material known for its exceptional wear and corrosion resistance.
- Engineered for Durability Our frame and cover are precision-crafted from high-strength ductile iron, delivering the rugged durability of steel with the versatility and flexibility of cast iron.

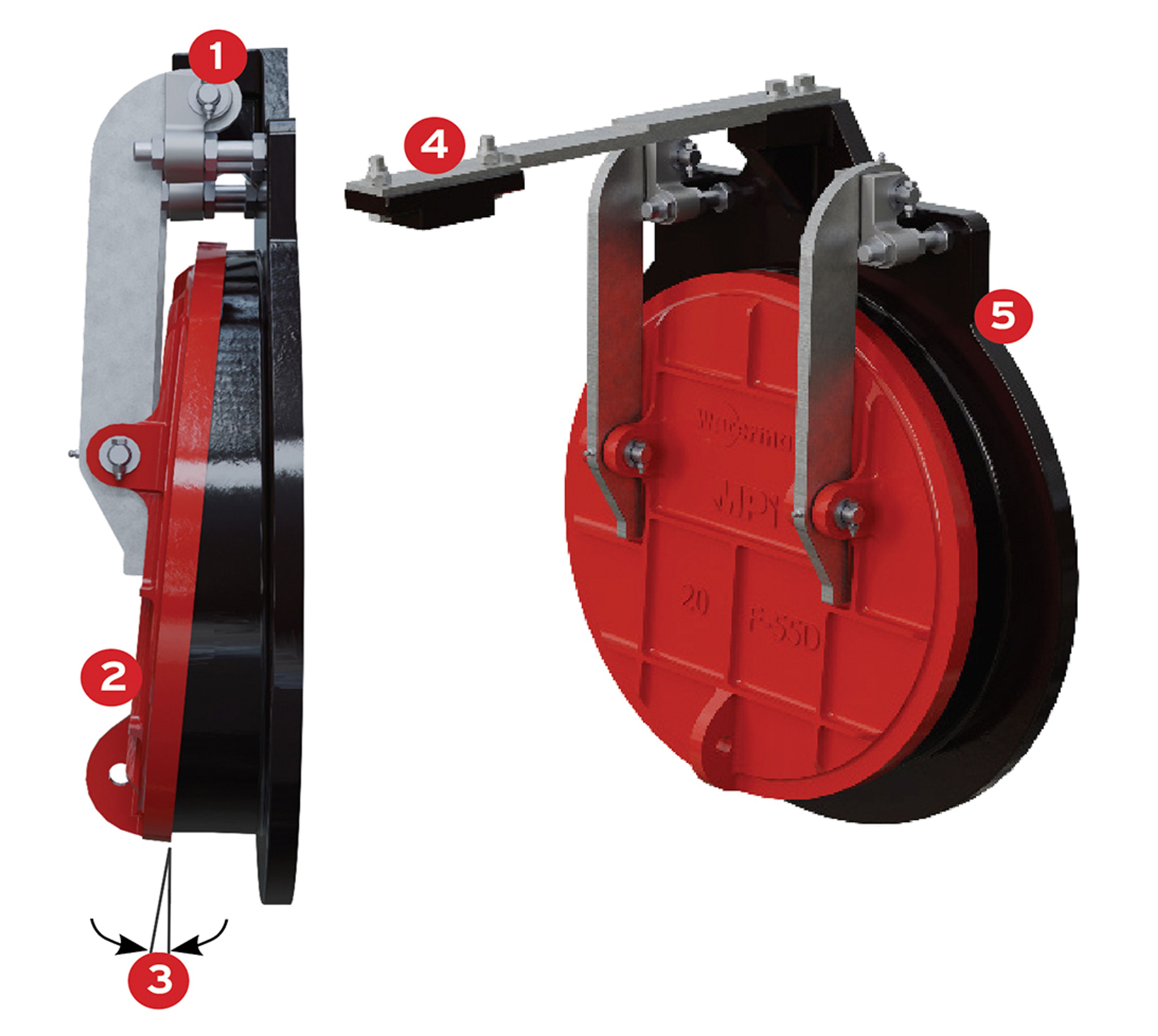

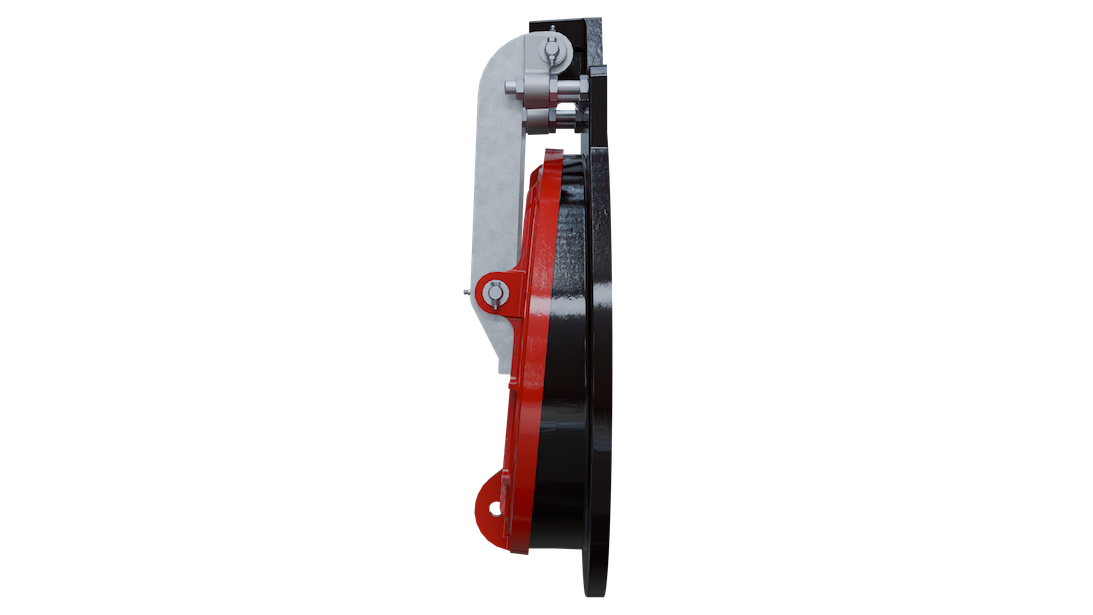

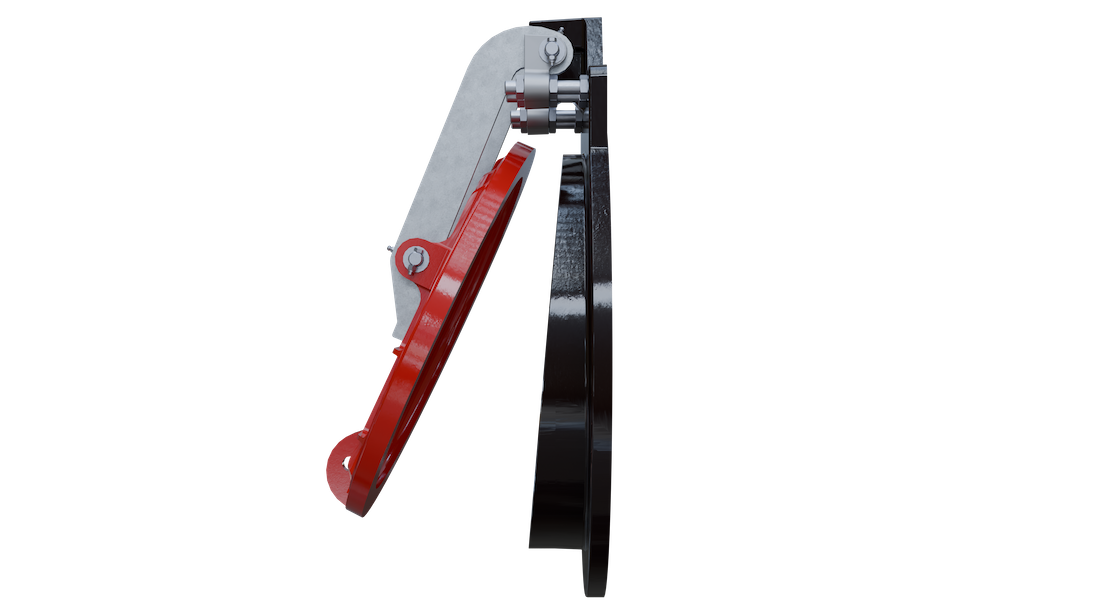

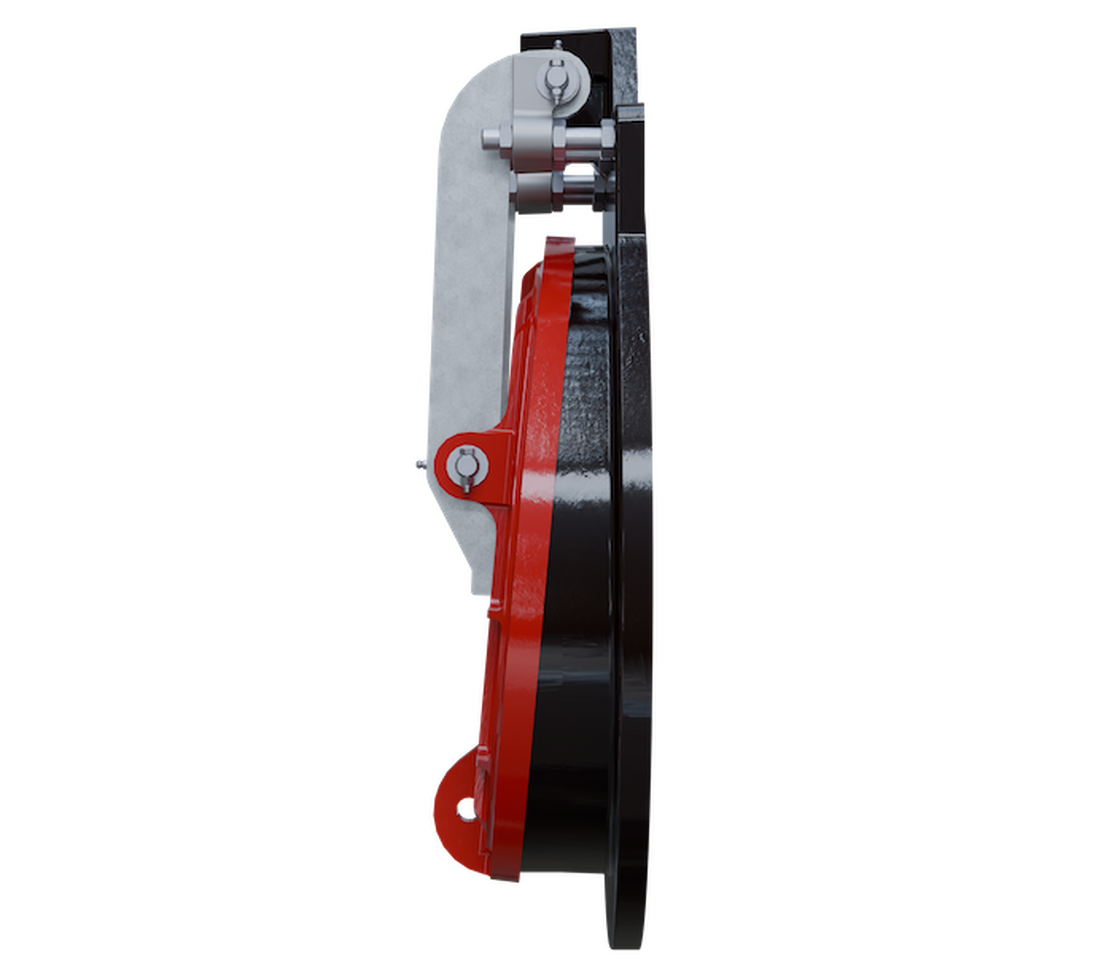

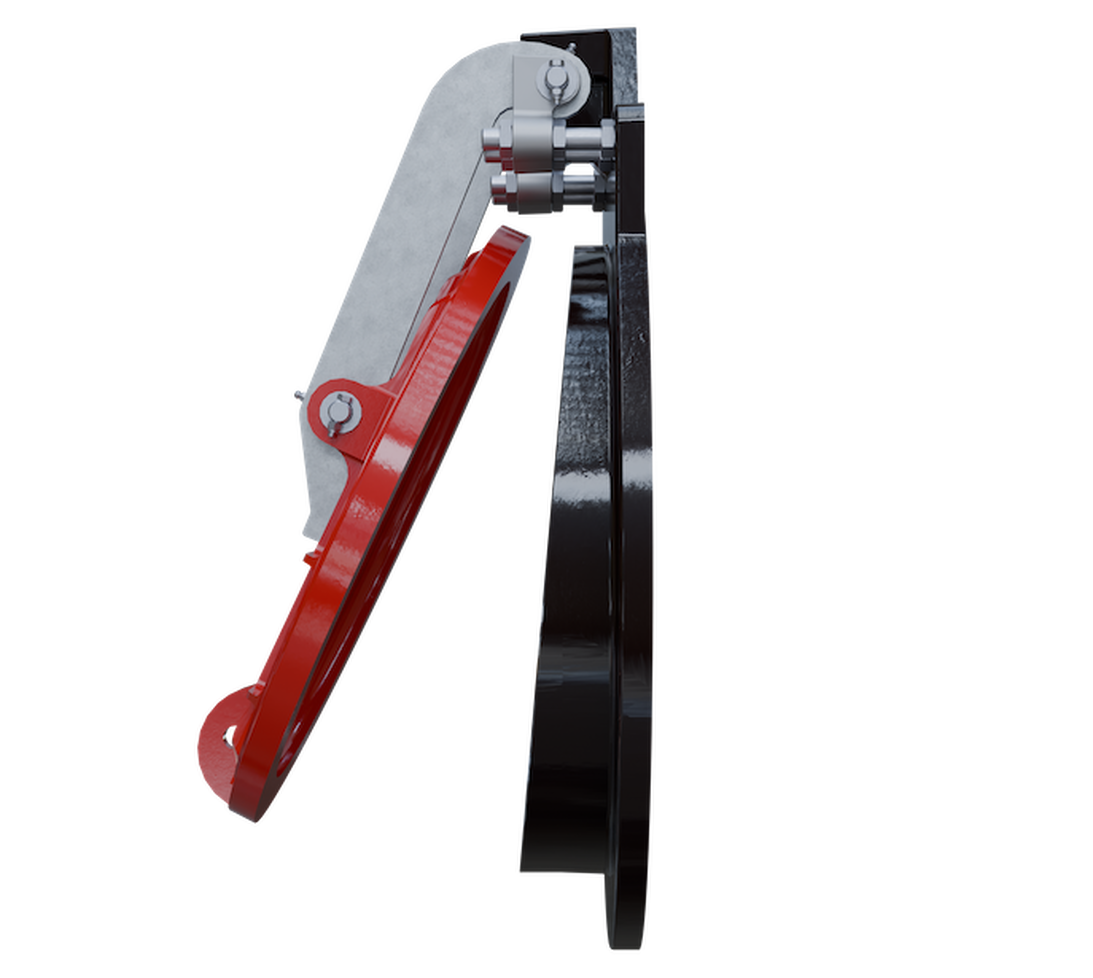

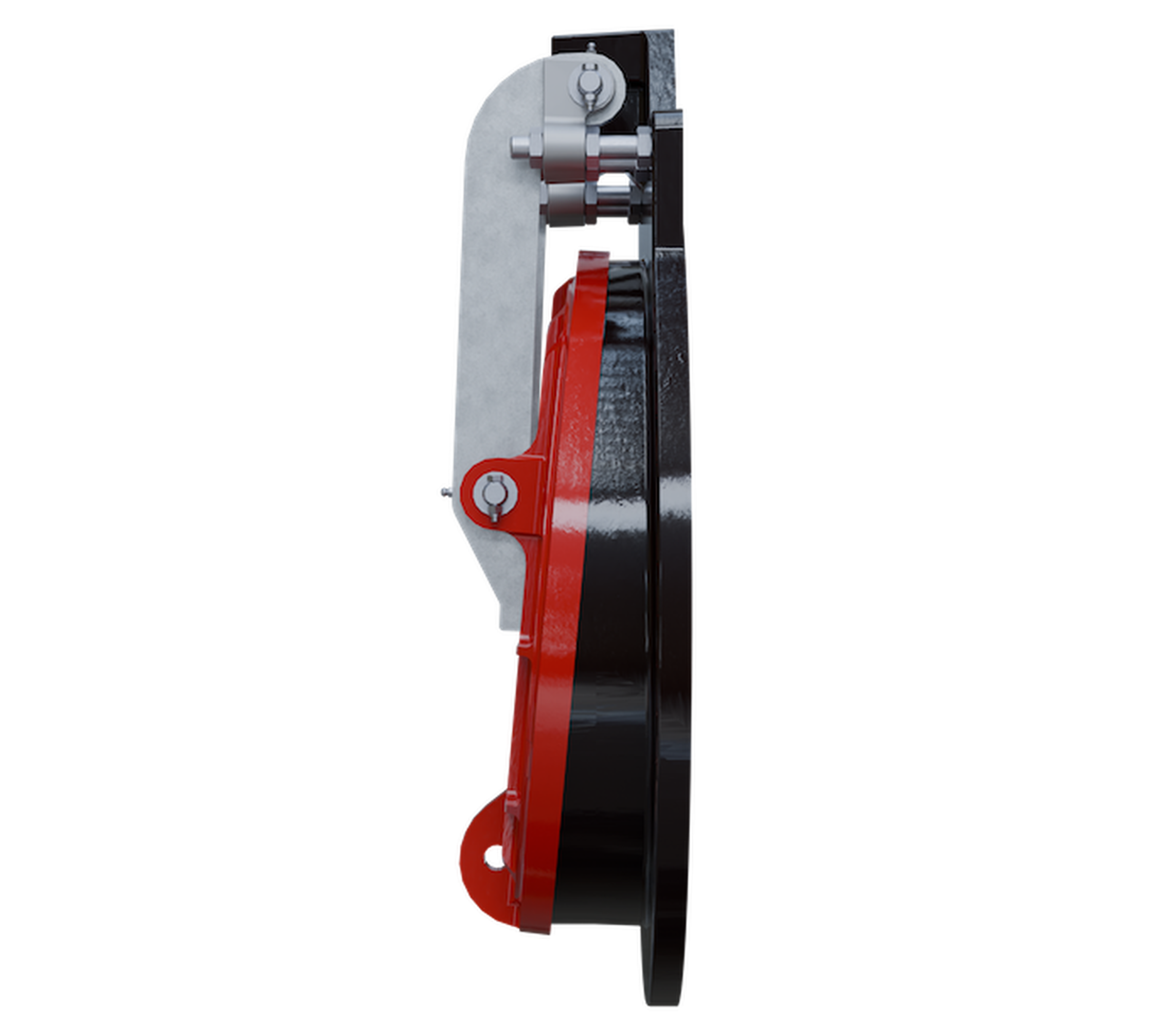

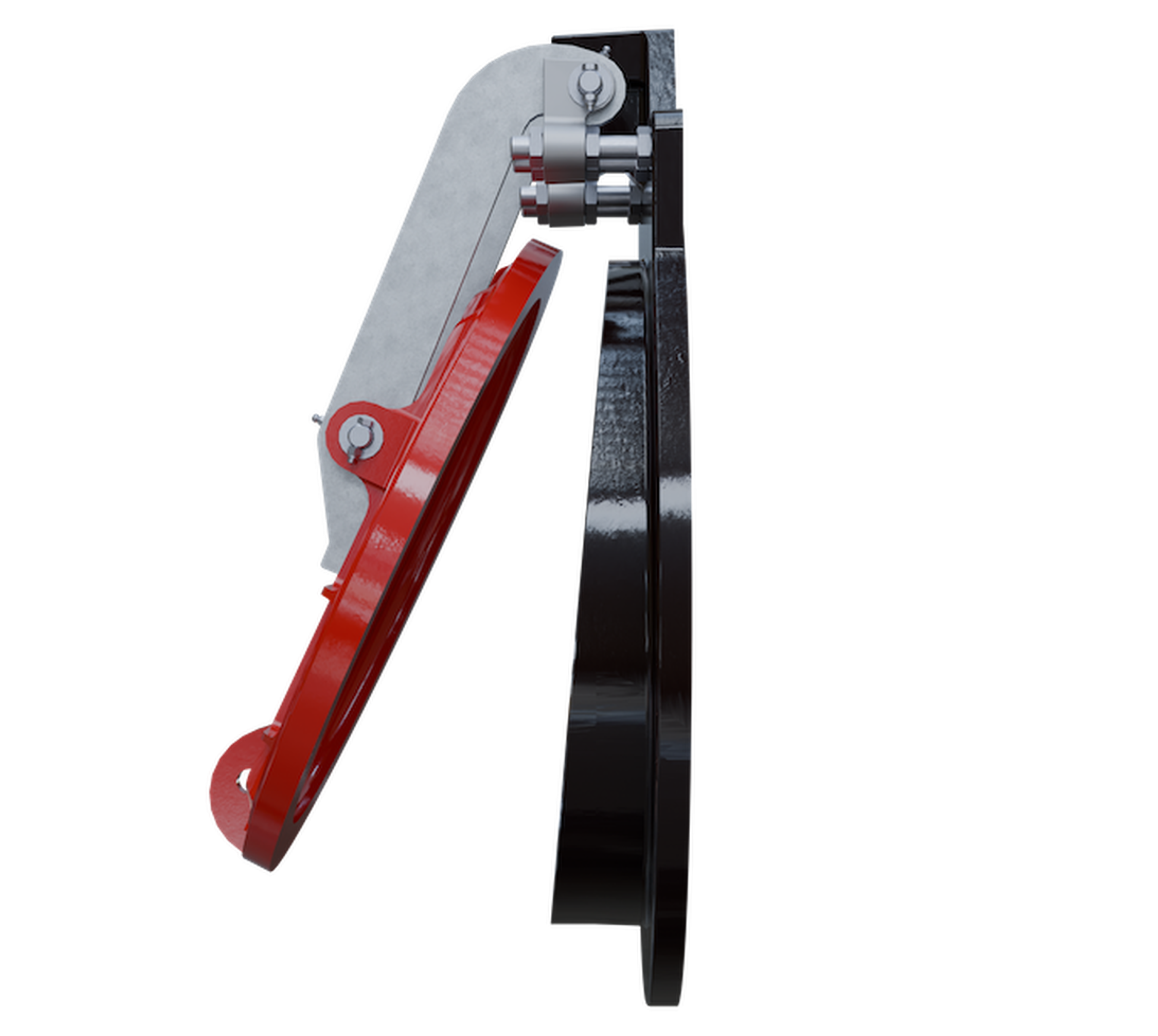

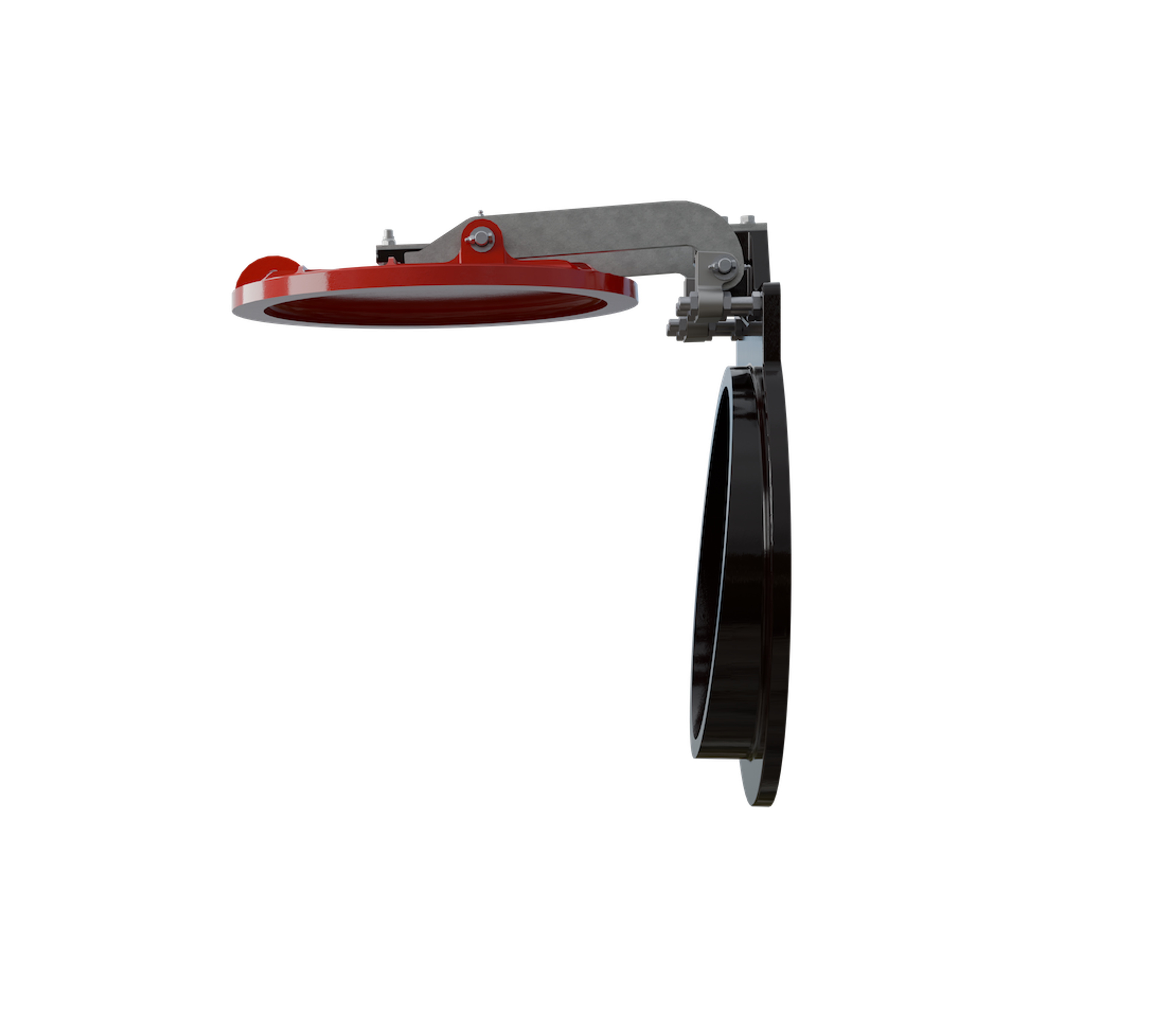

- The 2.5° Seat Angle Advantage This subtle design feature ensures positive closure by harnessing gravity and flow dynamics to guide the gate into a secure, leak resistant seal every time.

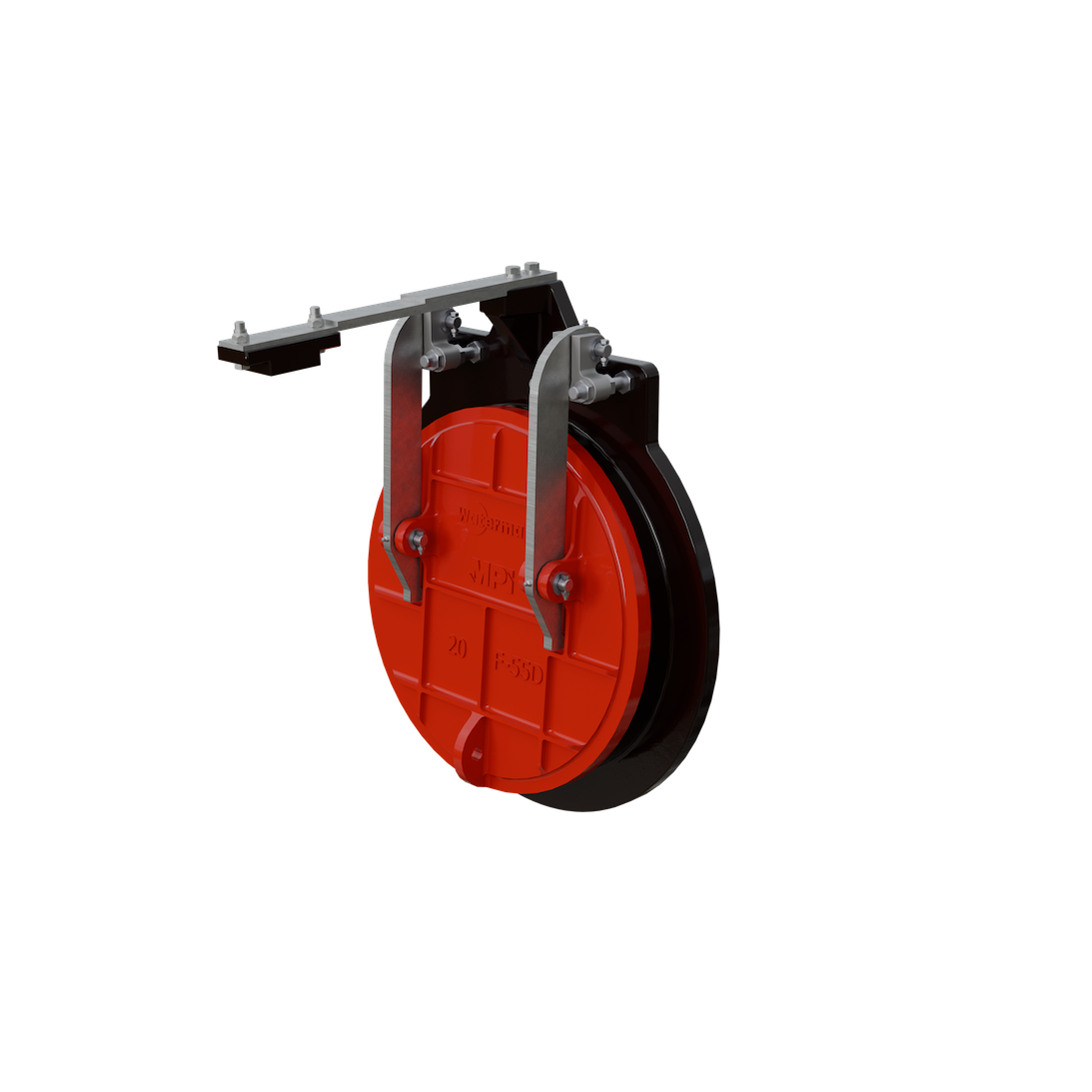

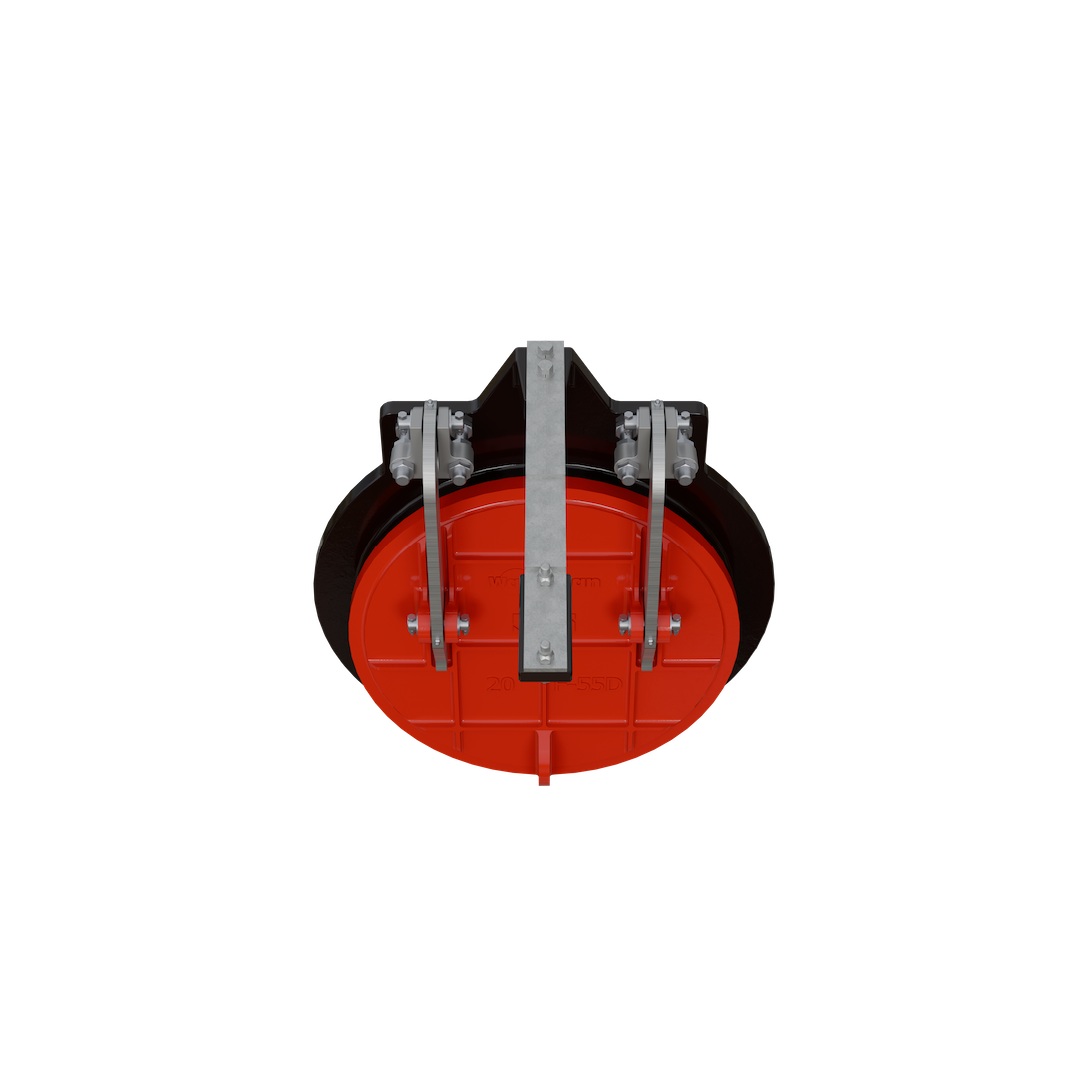

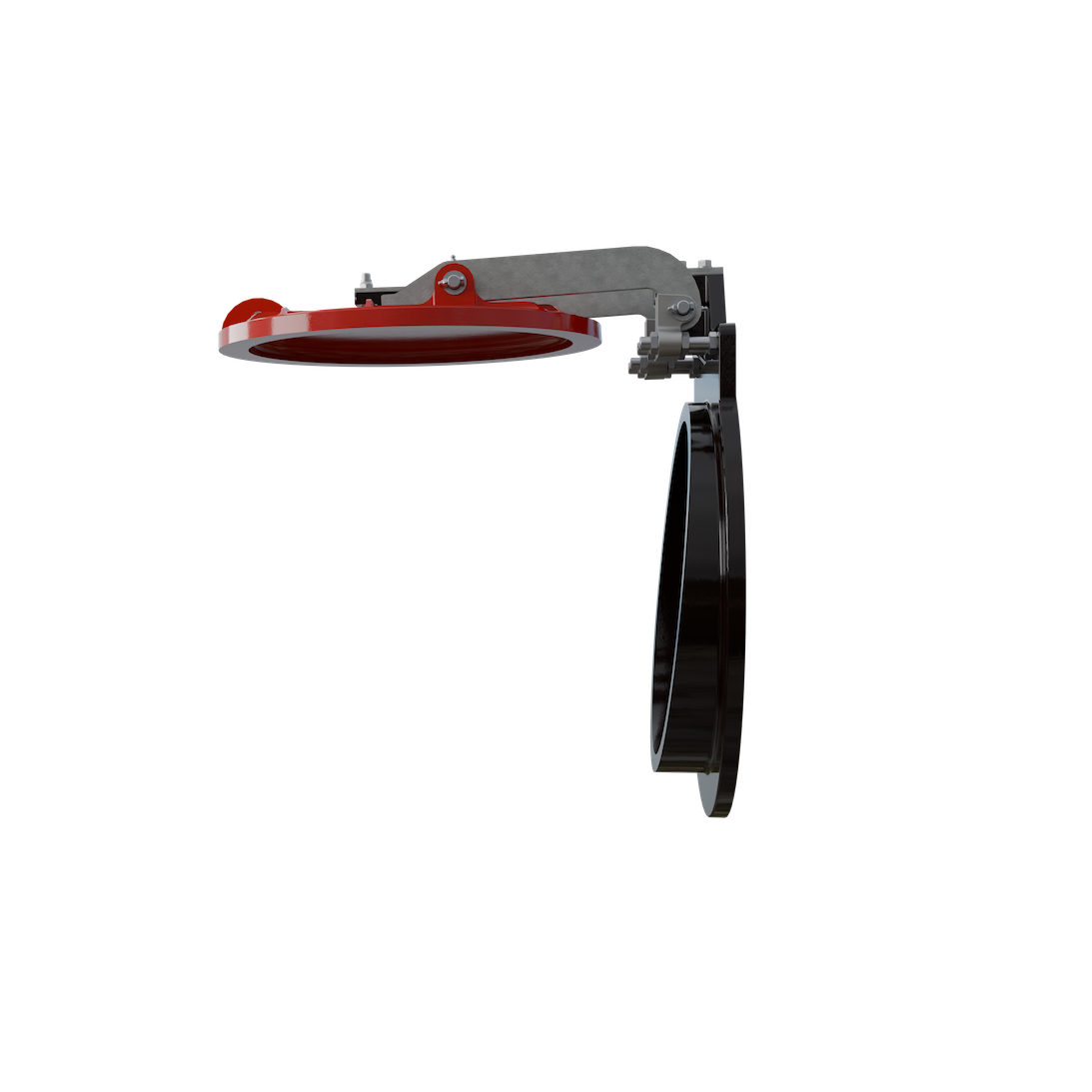

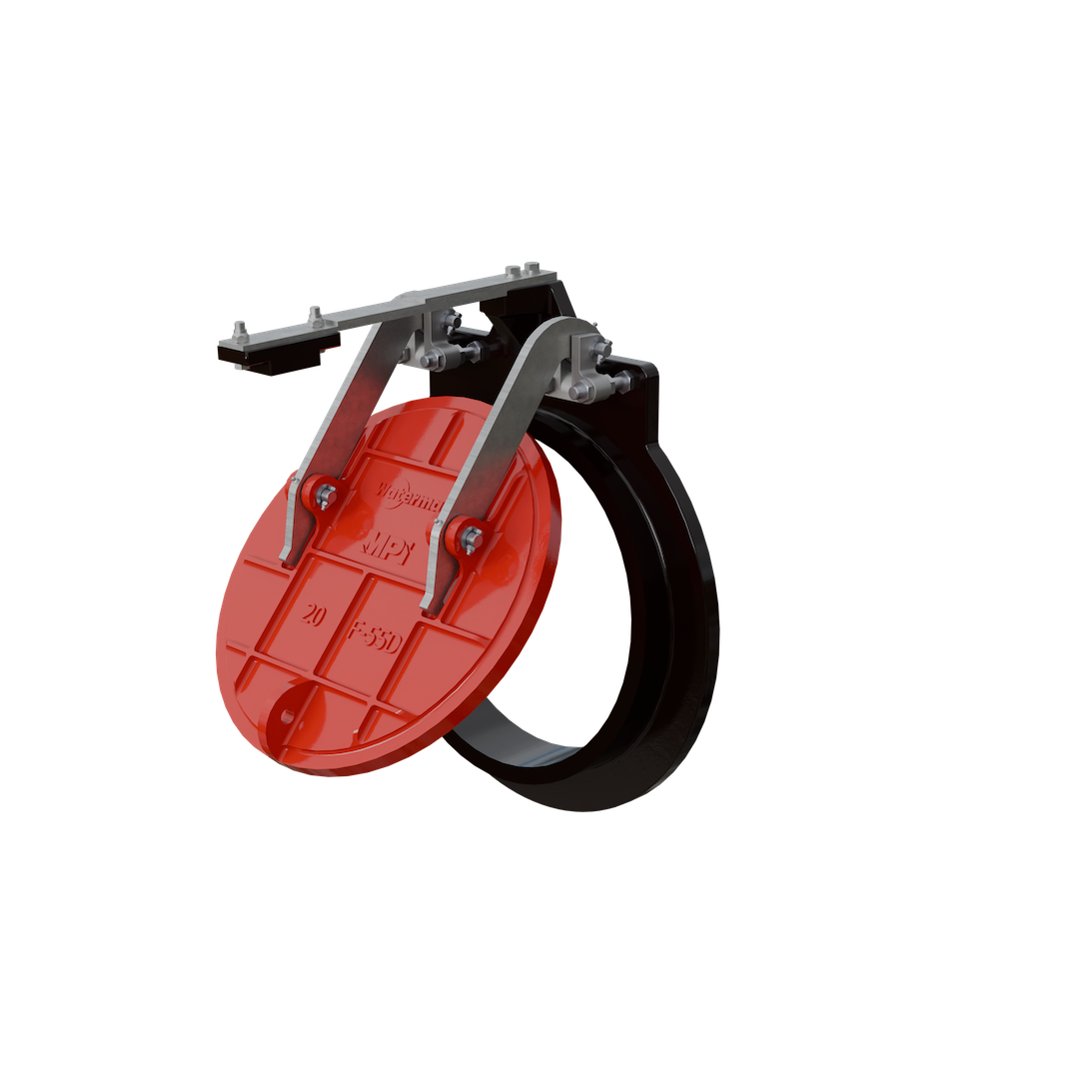

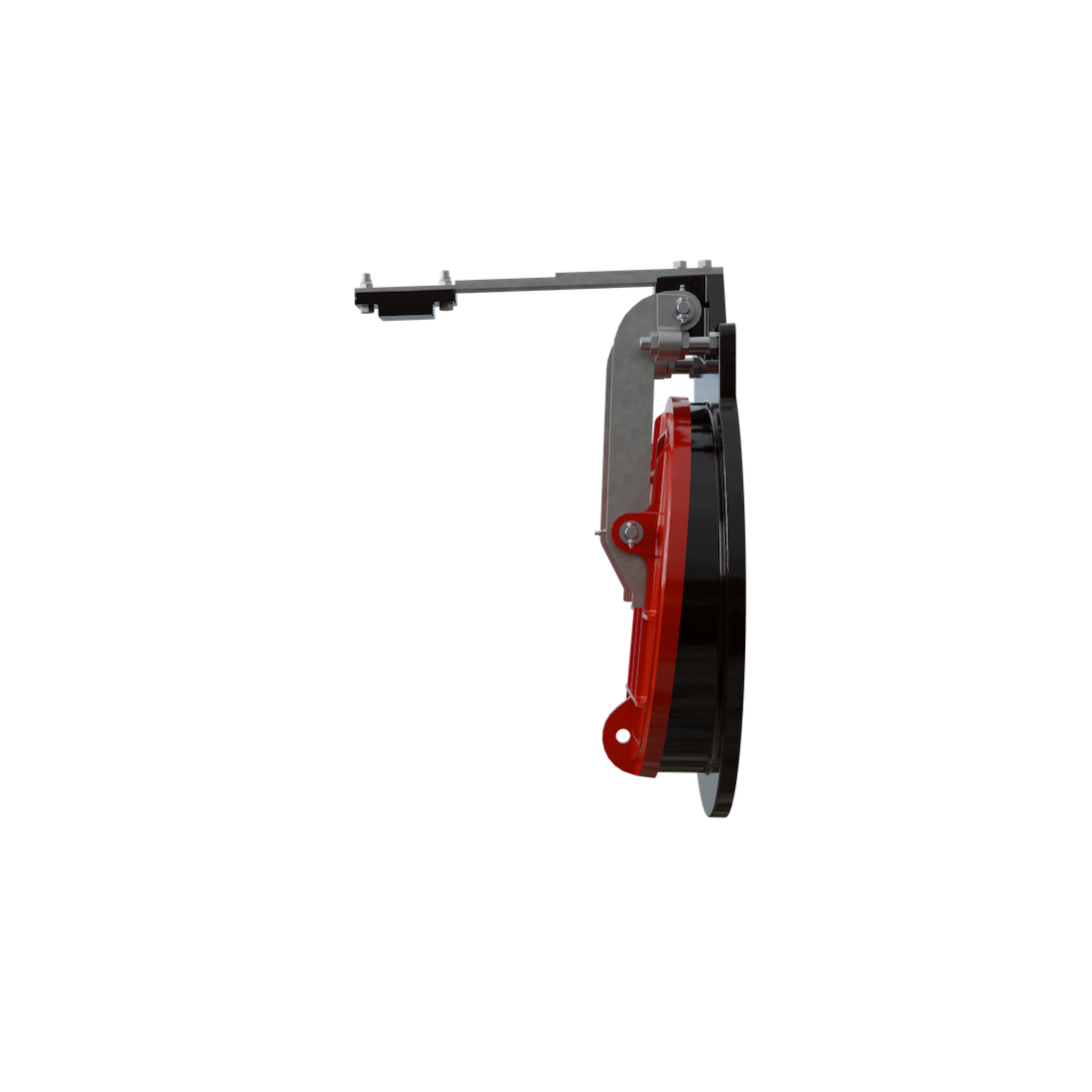

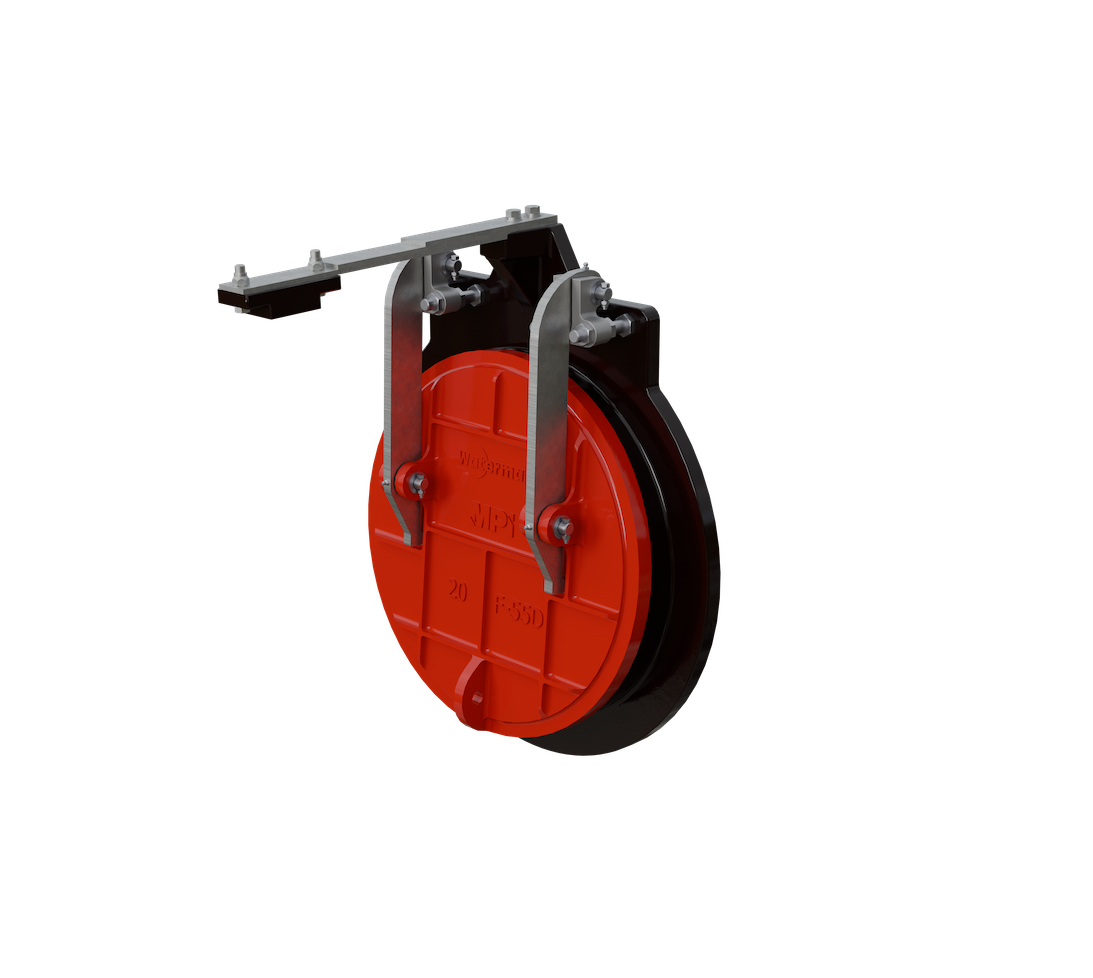

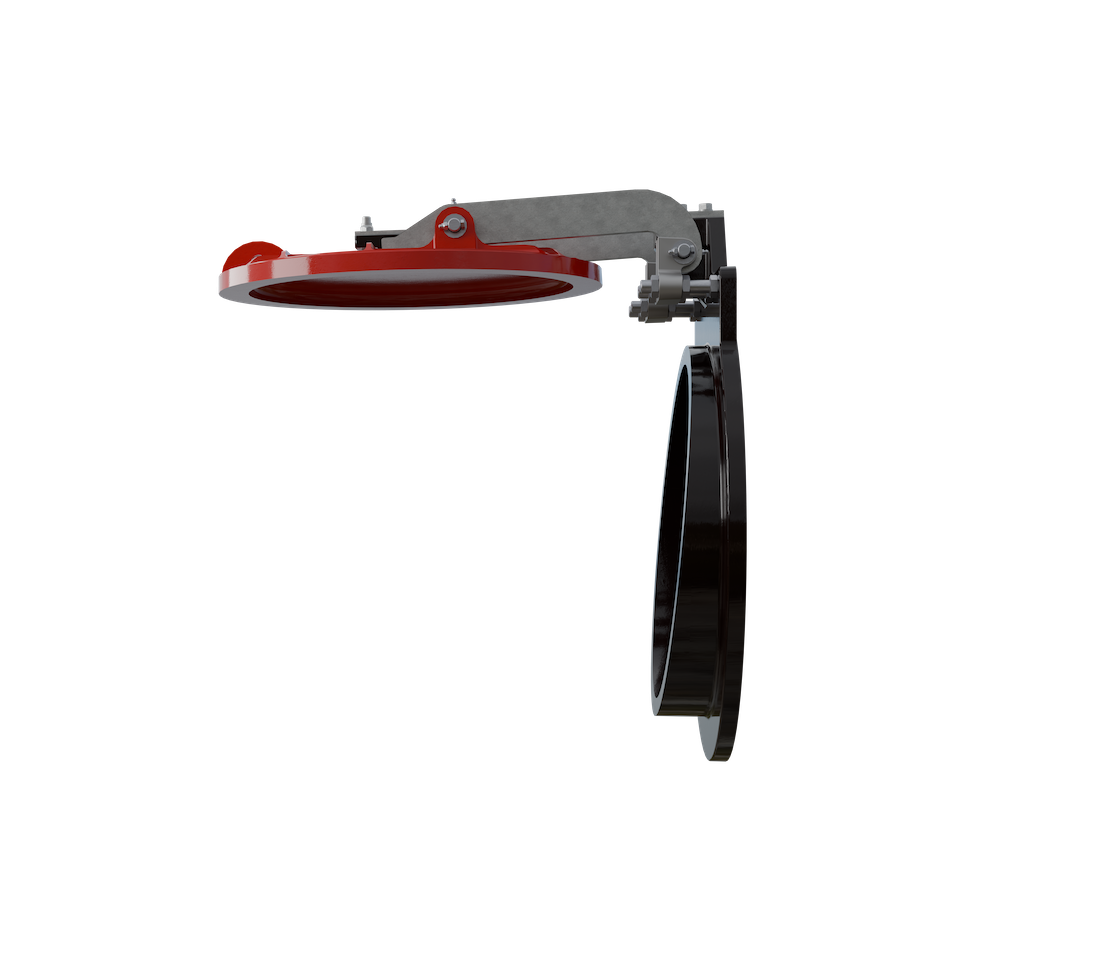

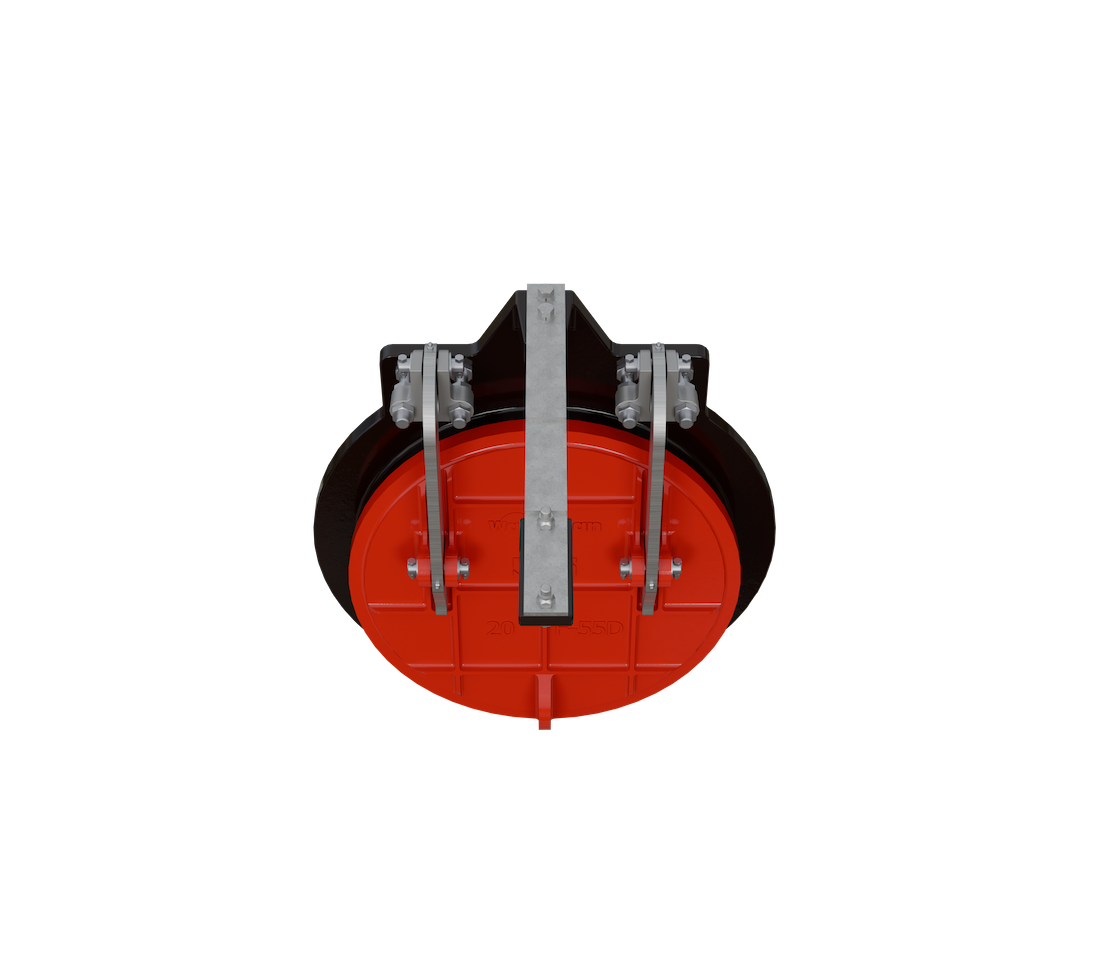

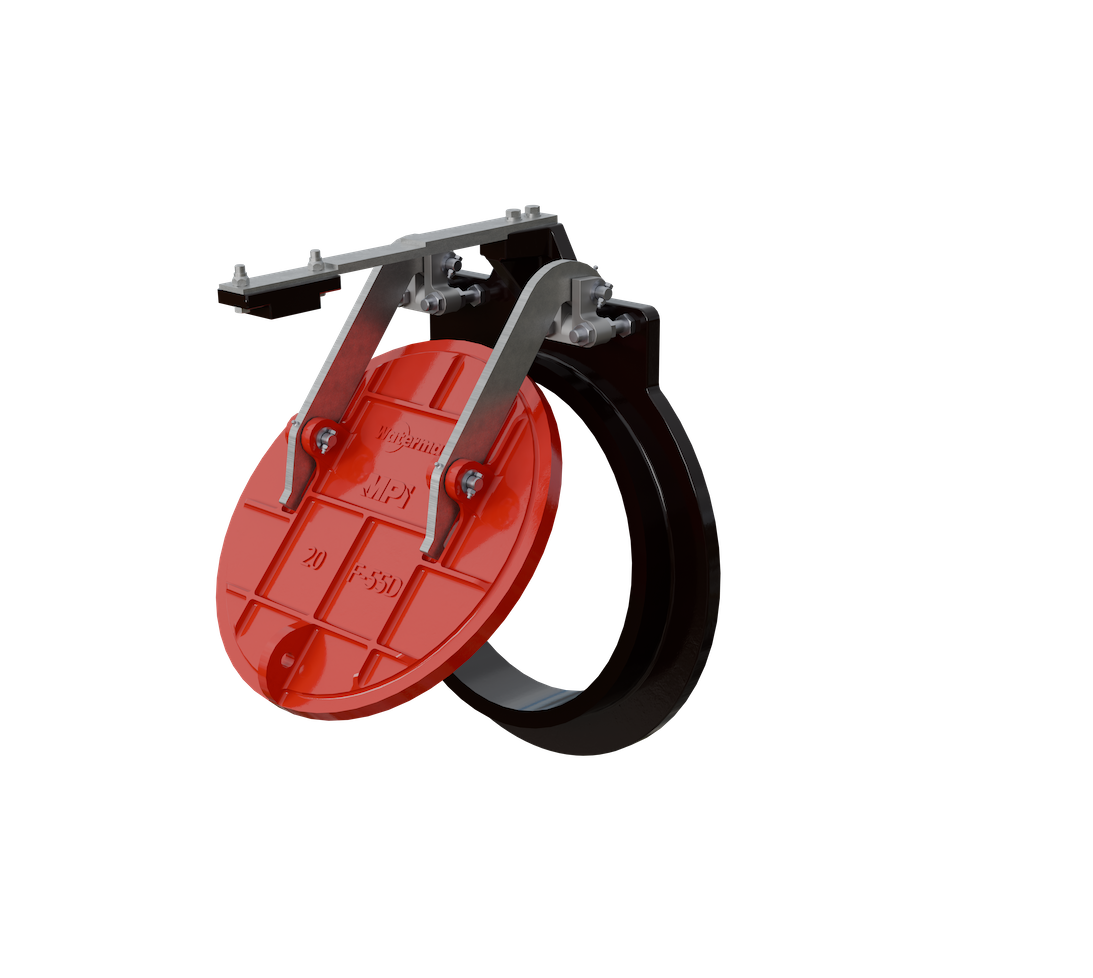

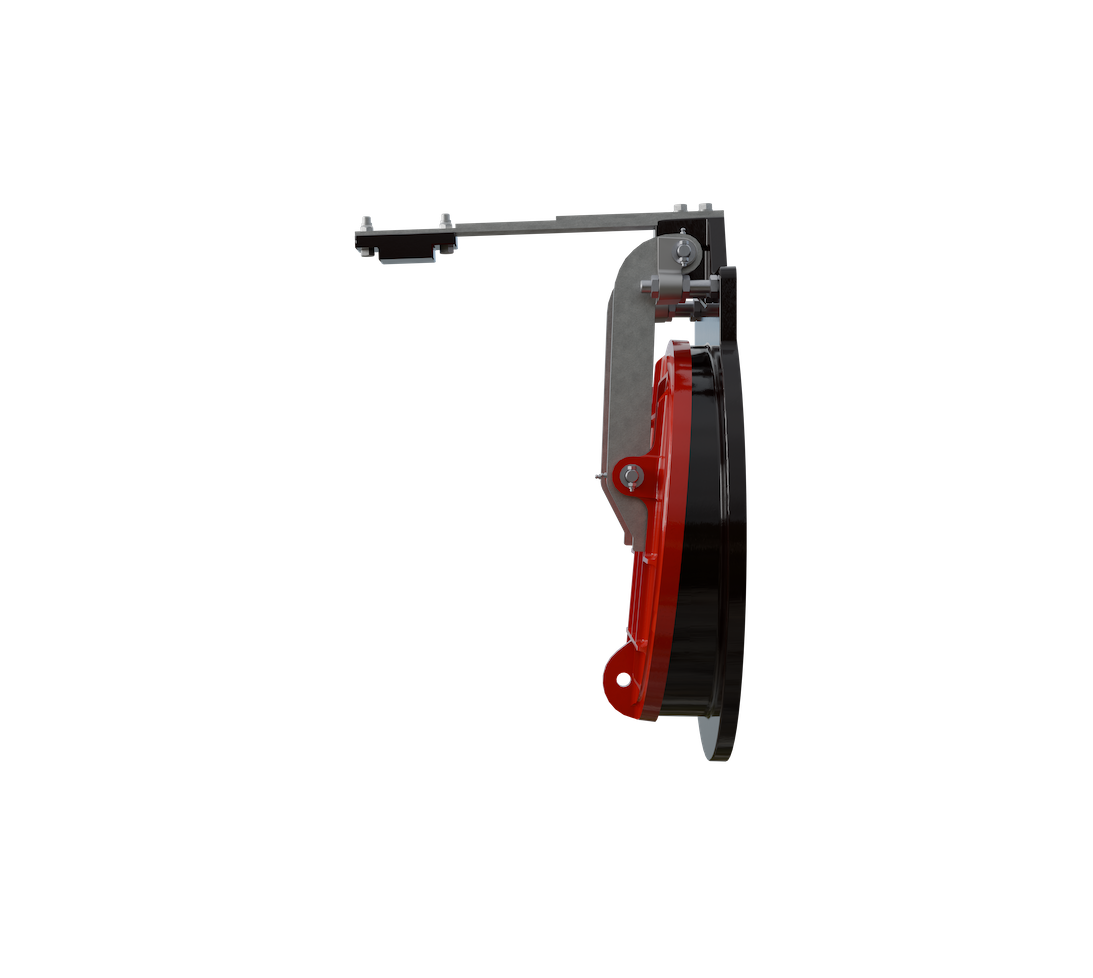

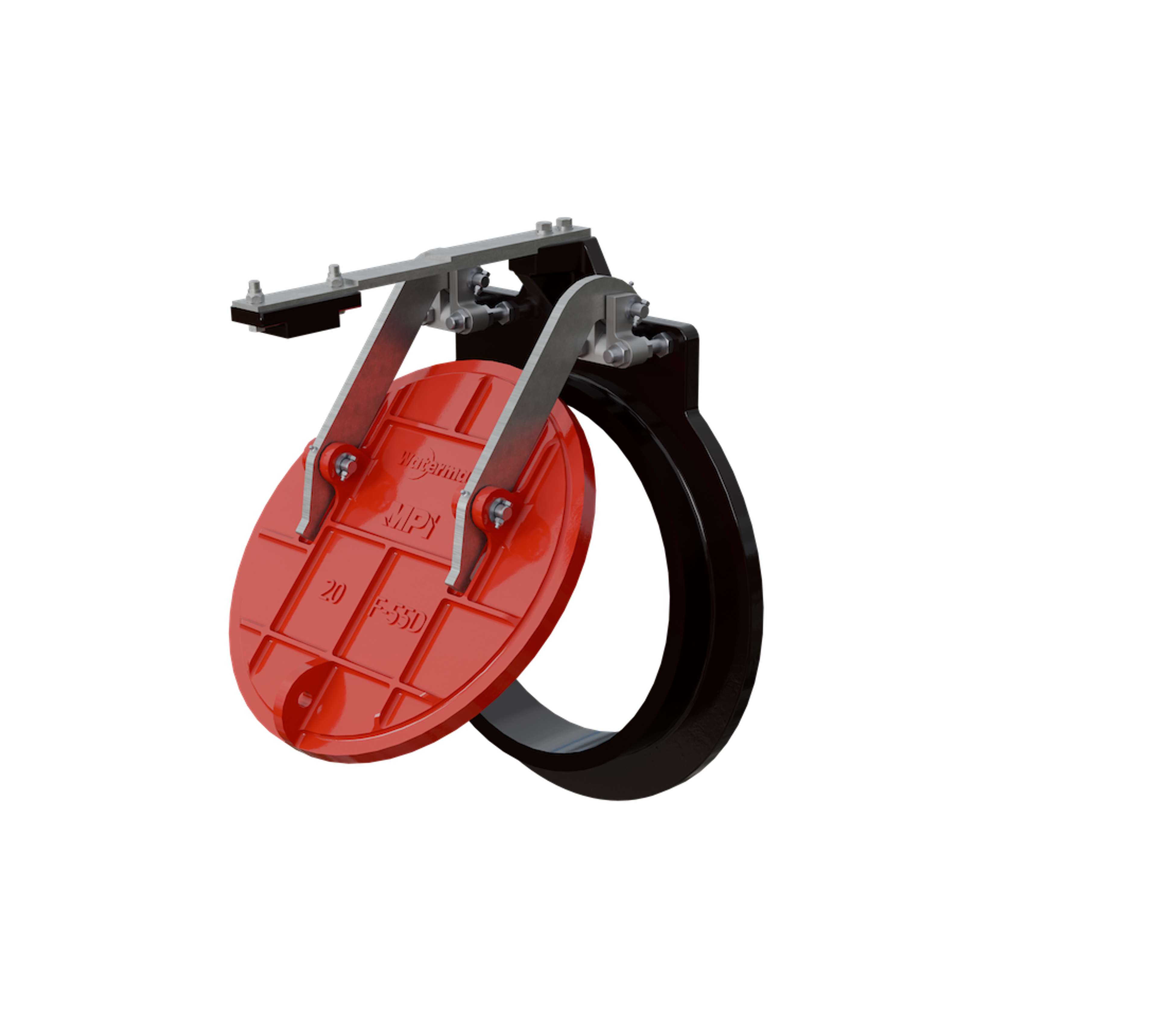

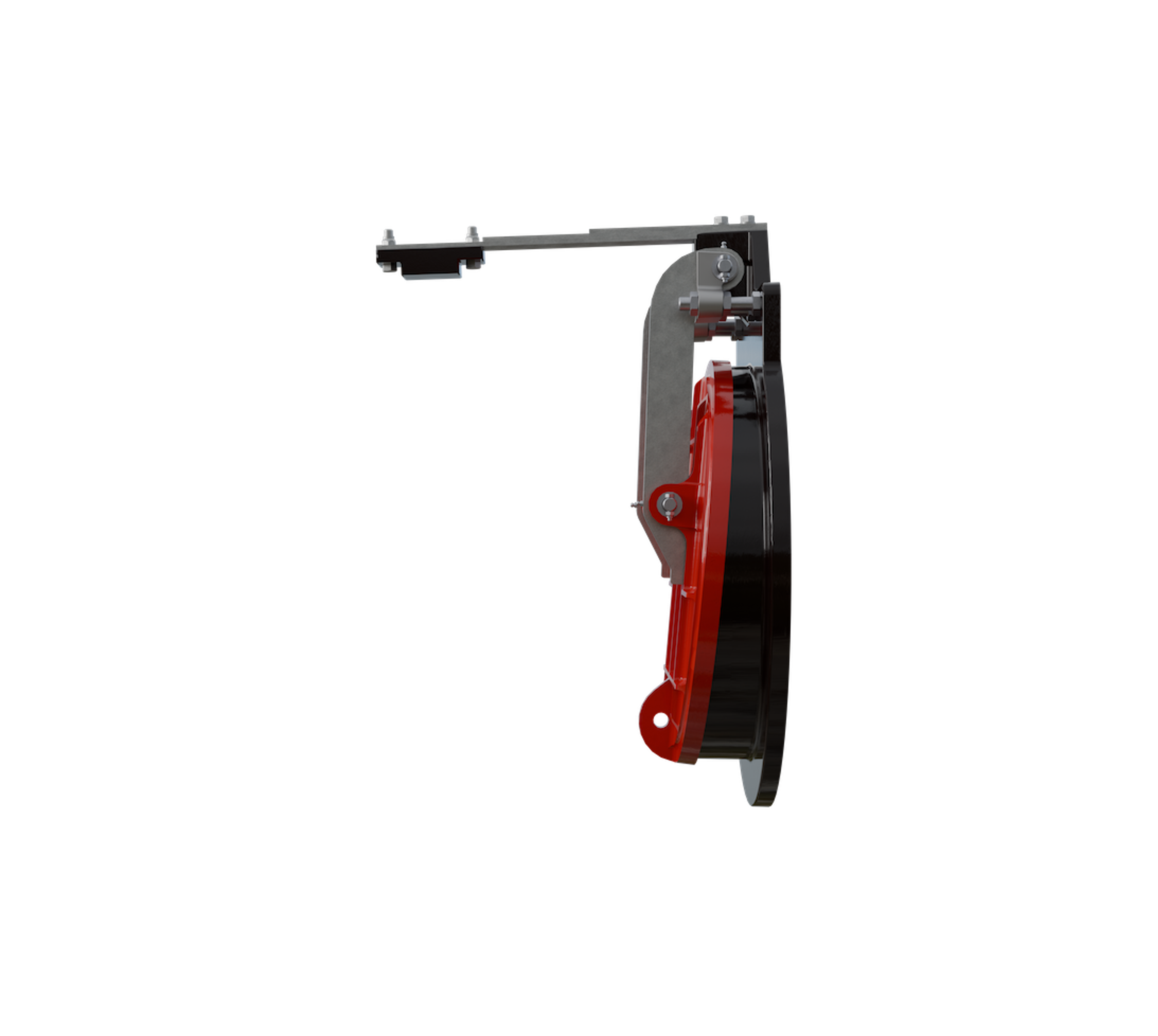

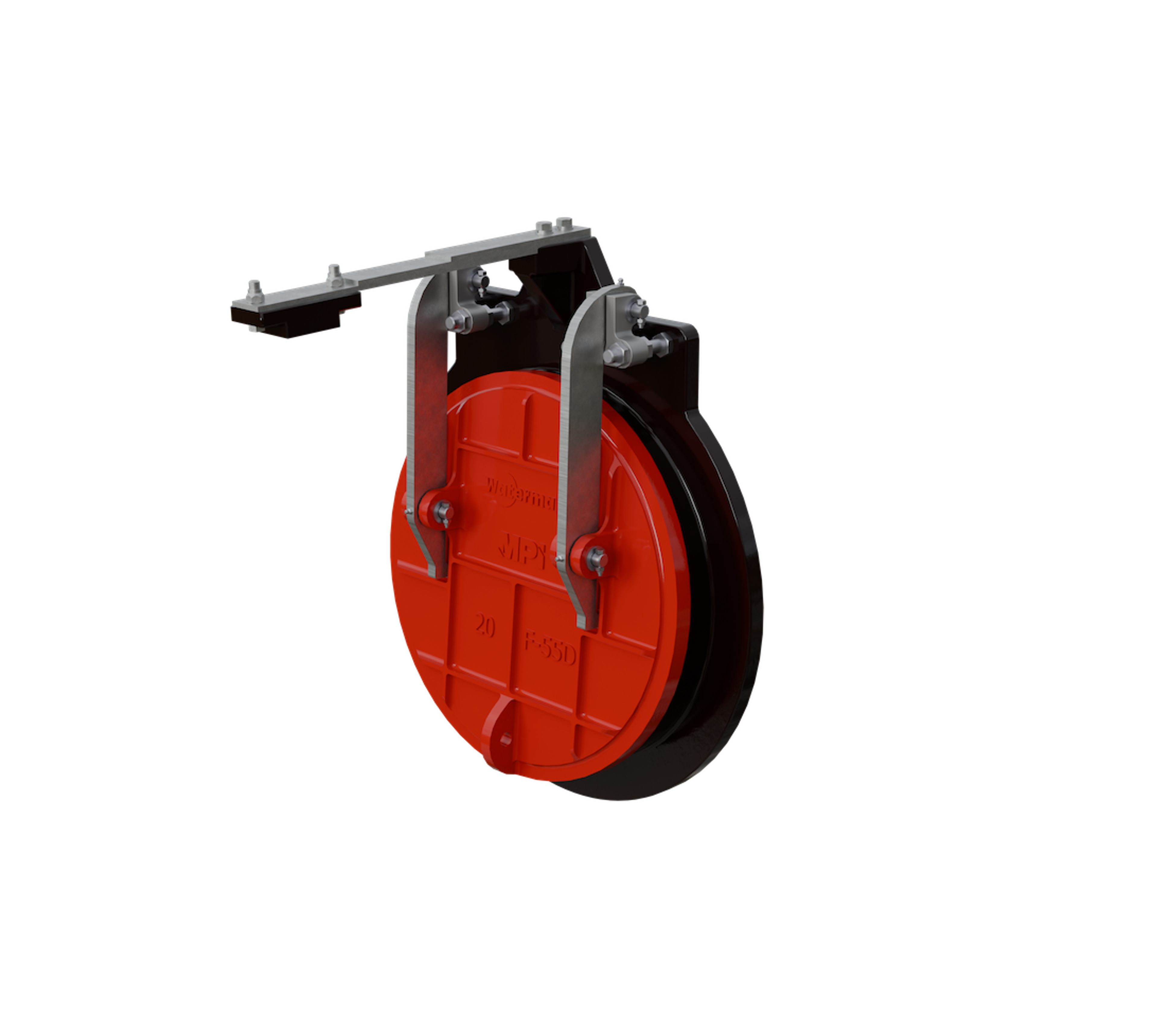

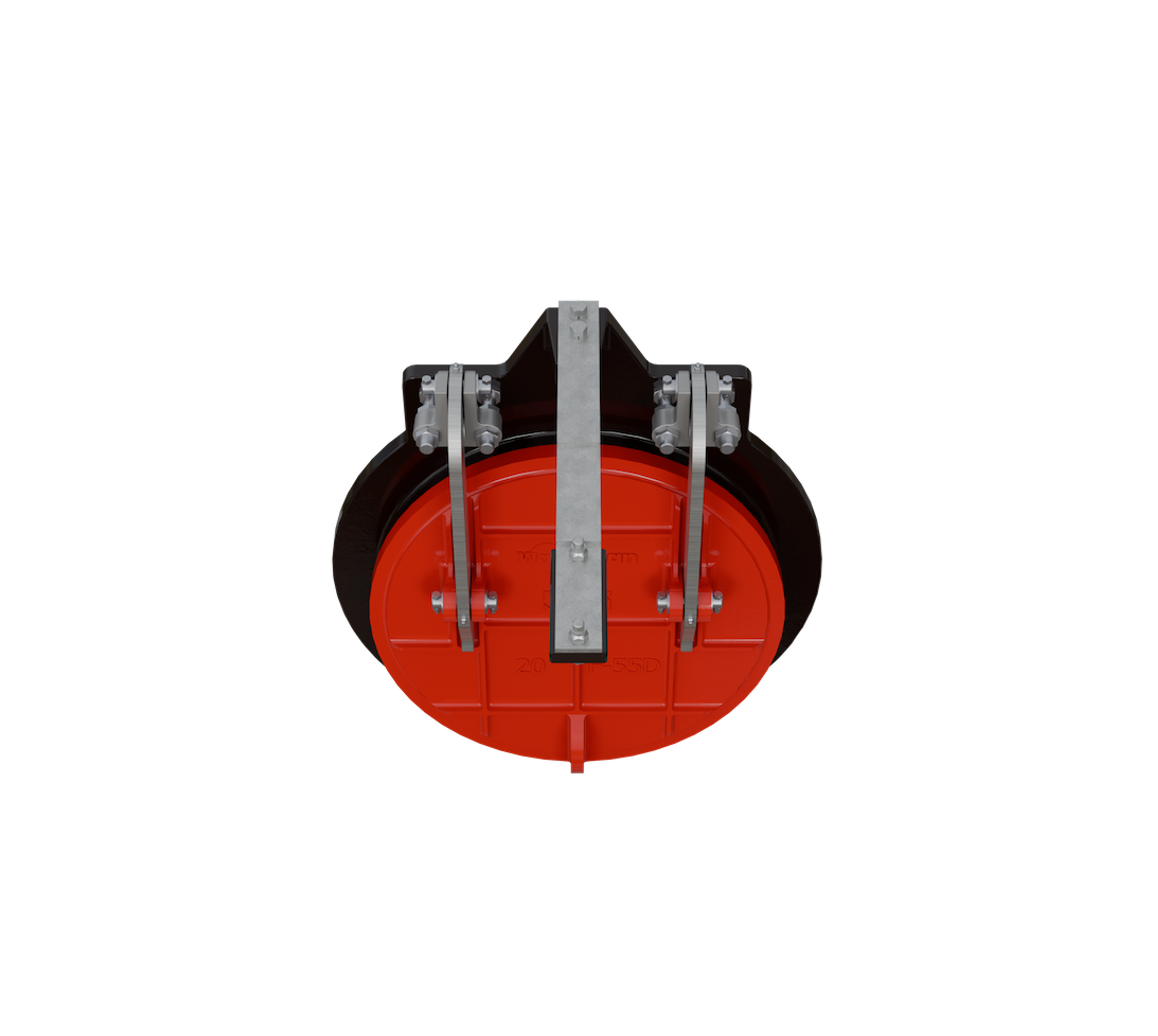

- The Secret Formula for Pump Discharge Applications Our pump discharge solution combines a spring bumper, neoprene seal, and 125-pound flange to deliver unmatched reliability – reducing wear and preventing the flap from overextending.
- Superior Bronze Seals for Corrosive Environments Bronze’s exceptional resistance to corrosion – from saltwater, chemicals, and acidic conditions – ensures seal integrity and functionality over time, even in harsh elements.
